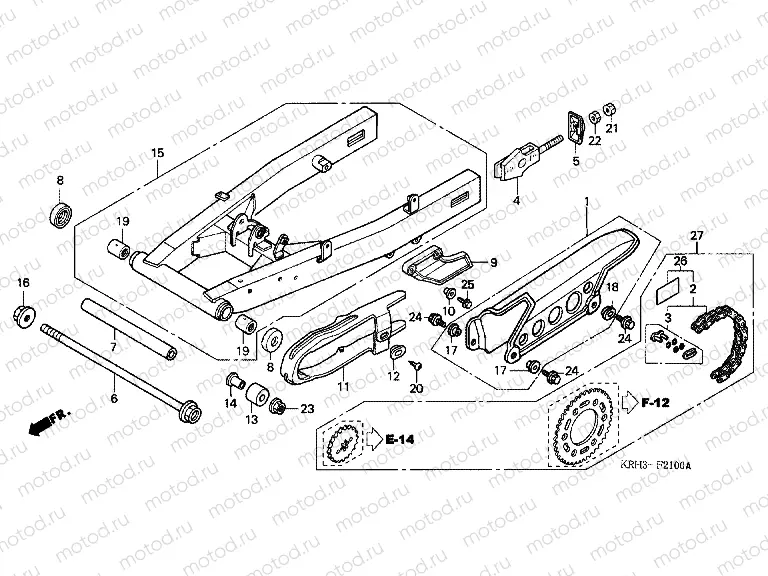

F-21 SWING ARM

F-21 SWING ARM
Например: 40510-KRH-900
1
40510-KRH-900
CASE, DRIVE CHAIN
2
40530-KRH-901
CHAIN, DRIVE (428HO-132LE
4
40543-KRH-900
ADJUSTER, CHAIN
5
40546-KRH-900
CAP, RR. FORK END
6
52101-KRH-900
BOLT, SWINGARM PIVOT
7
52141-KRH-900
COLLAR, SWINGARM PIVOT CE
8
52144-356-005
CAP, SWINGARM DUST SEAL (
1 437 ₽/шт
9
52155-KRH-900
GUARDCHAIN
10
52159-KRH-900
COLLARCHAIN GUAR
11
52170-KRH-D20
Guard chain sliding shoe
12
52171-KRH-900
WASHCHAINSLIDER
13
52175-KRE-900
OLLER, CHAIN
14
52176-KRH-900
COLLARCHAIN ROLL
15
52200-KRH-900
SWINGARM *NH411M*
16
90305-KYA-601
NUTFLG PT 14MM
17
90512-KRH-900
ondelle (6,5x20)
18
90505-KRH-900
WASHER6X9
19
91070-GC4-601
Needle bearing (20x26x20)
912 ₽/шт
20
93901-25080
Vis
39 ₽/шт
21
94002-080-000S
Гайка
47 ₽/шт
22
94030-08000
Nut
47 ₽/шт
23
94050-06000
Nut
55 ₽/шт
24
95701-060-1200
Bolt
58 ₽/шт
25
95701-060-2000
Bolt
55 ₽/шт
