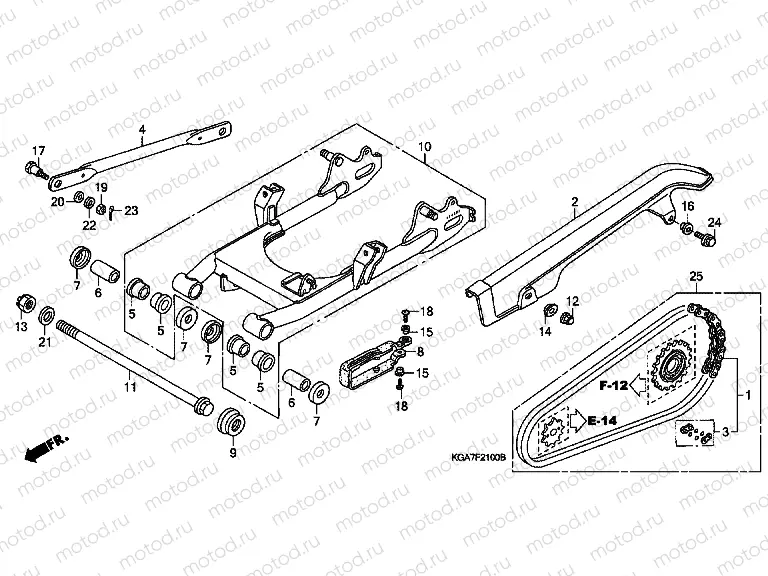

F-21 SWING ARM

F-21 SWING ARM
Например: 06405-KGA-E00
1
06405-KGA-E00
CHAIN SETDRIVE D
2
40510-KGA-900
CASE, DRIVE CHAIN
3
40545-KRH-D21
JOINTZJ DRIVE CH
1 014 ₽/шт
4
43431-KW1-900
ARMRR.BRAKE STOP
5
52109-KC1-003
BUSH, RR. FORK
1 195 ₽/шт
6
52141-KW1-900
COLLAR, RR. FORK PIVOT
7
52144-GE2-005
CAP, SWINGARM DUST SEAL (
1 132 ₽/шт
8
52170-KGA-900
SLIDERCHAIN RR
9
52171-KW1-900
SLIDERFR.CHAIN
10
52200-KGA-B20
SWING ARM ASSY RR.
11
90121-KGA-940
BOLTSWINGARM PIV
12
90301-473-003
Nut
456 ₽/шт
13
90305-GE8-003
Nut (14 mm)
409 ₽/шт
14
90501-KBB-900
COLLARAIR/C.CASE
15
90556-MB4-000
WASHER, FR. SIDE COVER
256 ₽/шт
16
90563-045-000
WASHER, NUMBER BRACKET
487 ₽/шт
17
92812-10000
BOLT A, STOPPER ARM
197 ₽/шт
18
93901-25220
Vis
41 ₽/шт
19
94001-080-000S
Гайка
47 ₽/шт
20
94101-08000
Rondelle (8 mm)
39 ₽/шт
21
94101-14000
Rondelle (14 mm)
47 ₽/шт
22
94111-10000
Rondelle (Spring, 10 mm)
315 ₽/шт
23
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
24
95701-060-1200
Bolt
58 ₽/шт
25
06406-KGA-E02
CHAIN KITDRIVE 4 (Standard original)
