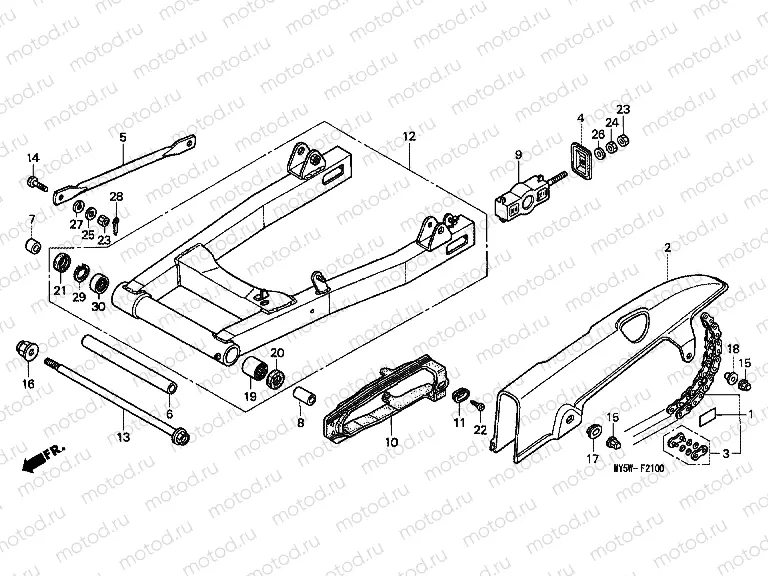

F-21 SWING ARM (1)

F-21 SWING ARM (1)
Например: 40540-MY5-306
1
40540-MY5-306
CHAIN, DRIVE (RK EXCEL) (
13 511 ₽/шт
2
40510-MY5-860
CASE, DRIVE CHAIN
3
40535-MY5-306
JOINT SET, DRIVE CHAIN (R
1 014 ₽/шт
4
40546-MY5-860
CAP, SWINGARM END
5
43431-MY5-860
ARMRR.BRK.STPR
6
52102-ML4-000
COLLAR, PIVOT DISTANCE
1 474 ₽/шт
7
52105-MJ0-000
COLLAR B, RR. FORK PIVOT
437 ₽/шт
8
52106-ML4-000
COLLAR B, PIVOT
1 519 ₽/шт
9
52120-MY5-860
COLLAR COMP., CHAIN TENSI
10
52170-MY5-860
SLIDER, CHAIN
11
52171-KR6-000
WASHER, CHAIN SLIDER
228 ₽/шт
12
52200-MY5-860ZA
SWINGARM SET*NH1*
13
90121-MS8-000
BOLT, RR. FORK PIVOT
14
90133-KAY-600
BOLTRR.BRAKE STO
451 ₽/шт
15
90308-MT8-000
Nut (6 mm)
307 ₽/шт
16
90305-GE8-003
Nut (14 mm)
409 ₽/шт
17
90513-405-000
WASHER, 6X9
236 ₽/шт
18
90563-KC5-000
Entretoise
212 ₽/шт
19
91070-MY5-860
Needle bearing (22x29x30)
20
91205-965-003
Joint
503 ₽/шт
21
91213-MB2-003
DUST SEAL, 22X35X7 (ARAI)
605 ₽/шт
22
93901-25220
Vis
41 ₽/шт
23
94001-080-000S
Гайка
47 ₽/шт
24
94030-08000
Nut
47 ₽/шт
25
94101-08000
Rondelle (8 mm)
39 ₽/шт
26
94102-08000
Rondelle (8 mm)
39 ₽/шт
27
94111-10000
Rondelle (Spring, 10 mm)
315 ₽/шт
28
94201-20180
PIN, SPLIT, 2.0X18
39 ₽/шт
29
94520-35000
Seeger (35mm)
96 ₽/шт
30
96100-620-2010
ПОДШИПНИК ВЫЖИМНОЙ
546 ₽/шт
