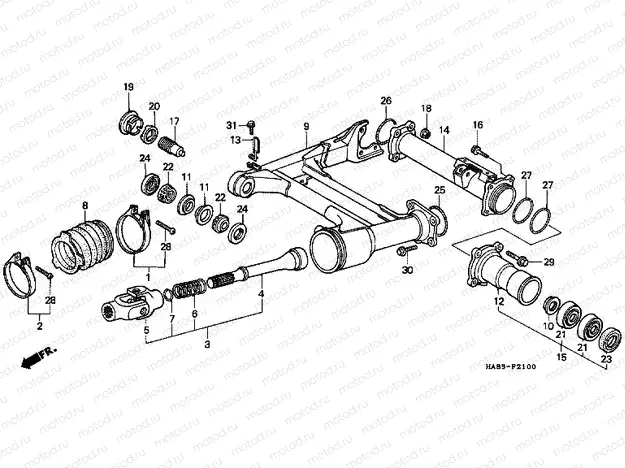

F-21 REAR FORK / PROPELLER AXLE

F-21 REAR FORK / PROPELLER AXLE
Например: 95018-86250
1
95018-86250
BAND 86,AIR/C CON
2
17258-HA0-680
BAND ASSY.BOOT J
3
40200-HA8-681
JOINT ASSY.YOKE
4
40201-HA8-000
SHAFTPROP.
5
40210-HA6-681
JOINT COMP.YOKE
6
40215-HA6-000
SPRINGSHAFT
7
40218-HA6-000
RINGSPG.STOPPER
8
52101-HA8-680
BOOTJOINT
9
52110-HA8-770
FORK COMP.RR.
10
52112-HA0-000
STOPPER, L. BEARING
1 195 ₽/шт
12
52120-HA8-680
CSŐ, BAL VÉDŐBURKOLAT
13
52128-HA8-000
BILINCS, HÁTSÓ FÉKKÁBEL
14
52130-HA8-680
BURKOLAT TELJES HÁTSÓ TENGELY
15
52140-HA8-680
OUSING ASSY.L.P
16
90109-HA0-681
Vis (spec)
17
90121-HA6-000
BOLTR(RR.FORK) P
18
90304-GBL-003
Nut (10 mm)
307 ₽/шт
19
90312-HA0-000
CAP, LOCK NUT
1 425 ₽/шт
20
90355-469-000
NUT, SWINGARM PIVOT LOCK
1 022 ₽/шт
21
91055-HA0-681
Roulement
2 298 ₽/шт
22
91066-HA7-672
BEARING, TAPER ROLLER, 17
2 899 ₽/шт
23
91255-HA0-681
Joint
1 548 ₽/шт
25
91308-500-010
O-Ring
878 ₽/шт
26
91308-HA8-000
O-Ring
27
91351-737-752
O-RING, ROTARY CASE
28
90113-HA0-680
Vis
29
95817-080-2500
Болт
95 ₽/шт
30
95801-080-2800
Bolt, flange, 8x28
79 ₽/шт
31
95701-060-1407
Bolt, flange, 6x14
55 ₽/шт
