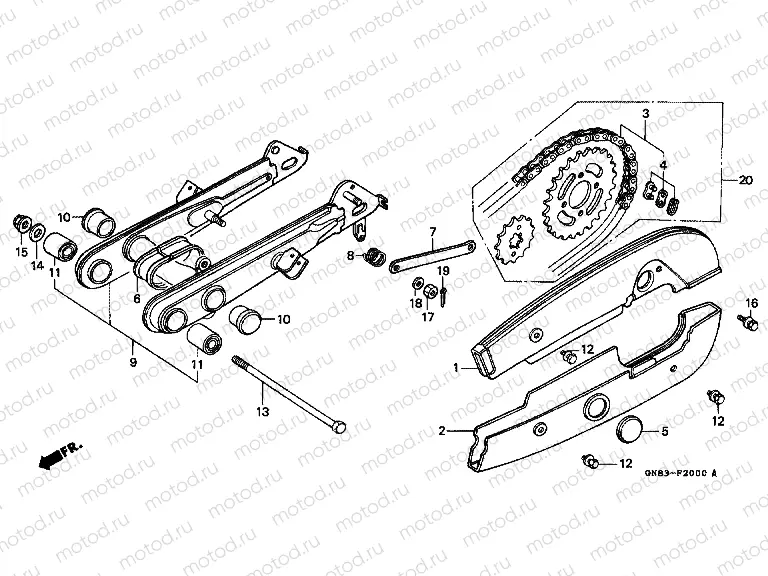

F-20 SWING ARM / CHAIN ​​CABINET

F-20 SWING ARM / CHAIN ​​CABINET
Например: 40510-GK4-601ZG
1
40510-GK4-601ZG
CASEUPP*NH167MU*
2
40520-GK4-601ZG
CASE UND*NH167MU*
3
405W3-179-505
CHAIN,DRIVE
2 847 ₽/шт
4
40531-098-003
JOINT, DRIVE CHAIN (DAIDO
456 ₽/шт
5
40545-001-000
CAP, CHAIN CASE PEEP HOLE
503 ₽/шт
6
40591-041-000
PACKING, DRIVE CHAIN CASE
605 ₽/шт
7
43431-086-720
LINK, RR. BRAKE TORQUE
892 ₽/шт
8
43434-250-000
SPRING, STOPPER ARM
275 ₽/шт
9
52000-GB6-761ZD
Fork ass*yr118ms*
20 497 ₽/шт
10
52161-051-000
CAP, CROSS MEMBER SIDE
286 ₽/шт
11
52181-001-300
BUSH, RR. FORK PIVOT RUBB
582 ₽/шт
12
90118-383-000
Vis
283 ₽/шт
13
90120-046-810
BOLT RR PIVOT
1 352 ₽/шт
14
90122-141-650
COLLARMUFFLER SE
291 ₽/шт
15
90304-GBL-003
Nut (10 mm)
307 ₽/шт
16
93401-060-1000
Bolt-washer,6x10
58 ₽/шт
17
94001-080-000S
Гайка
47 ₽/шт
18
94101-08000
Rondelle (8 mm)
39 ₽/шт
19
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
20
06406-GN8-740
CHAIN KITDRIVE (Standard original)
