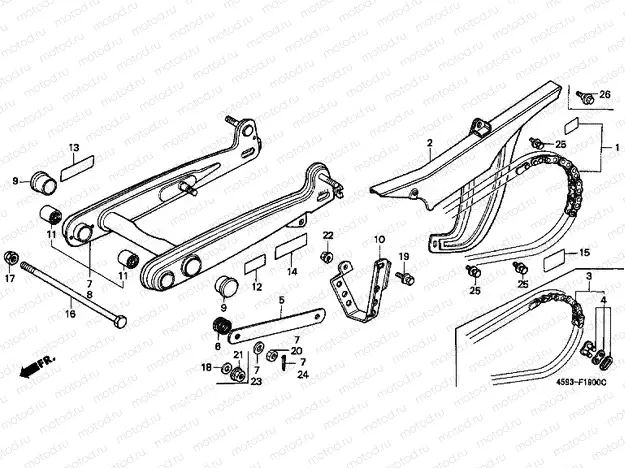

F-19 SWING ARM (1)

F-19 SWING ARM (1)
Например: 40550-459-405
1
40550-459-405
CHAIN SETDRIVE(D
2
40510-459-940ZA
CASE COMP. DRIVE CH
5
43431-086-720
LINK, RR. BRAKE TORQUE
892 ₽/шт
6
43434-250-000
SPRING, STOPPER ARM
275 ₽/шт
8
52000-459-305ZA
FORK SETRR.*R23*
9
52161-051-000
CAP, CROSS MEMBER SIDE
286 ₽/шт
10
52174-459-671
VEZETŐ, LÁNC
14
87505-459-940
LABELTIRE
487 ₽/шт
15
87507-KE4-790
JELZÉS, HAJTÓLÁNC FIGYELEM
524 ₽/шт
16
90121-033-000
BOLT PIVOT
1 409 ₽/шт
17
90351-268-000
Nut (Lock, 10mm)
307 ₽/шт
19
93401-060-1200
Bolt-washer (6x12)
55 ₽/шт
20
94001-080-000S
Гайка
47 ₽/шт
22
94050-06080
Nut (6 mm)
55 ₽/шт
23
94101-08000
Rondelle (8 mm)
39 ₽/шт
24
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
25
95701-060-1000
БОЛТ С ФЛАНЦЕМ
55 ₽/шт
