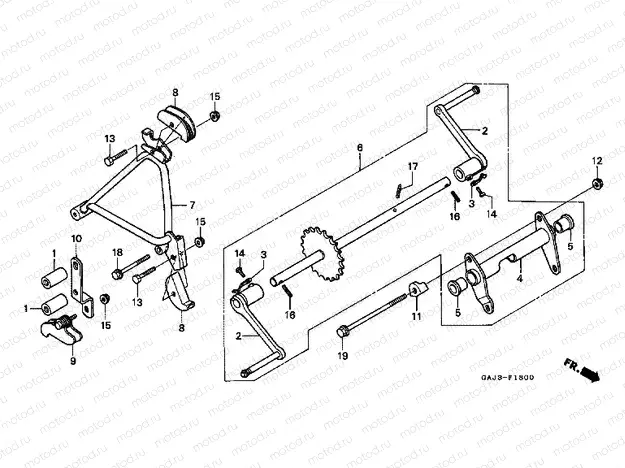

F-18 PEDAL

F-18 PEDAL
Например: 18309-GAJ-900
1
18309-GAJ-900
COLLAR B MUFFLER STA
2
40210-GAJ-900
RM ASSY PEDAL CRANK
3
40214-GAJ-900
PLATE SPRING CRANK A
4
40234-GAJ-900
BRACKET DRIVE SHAFT
5
40234-148-000
BUSHDRIVE SHAFT ** NLA**
6
40235-GAJ-900
No longer available
7
40540-GAJ-900
HANGER COMP. PEDAL
8
40542-GAJ-900
UIDE CHAIN
9
40545-GAJ-900
TENSIONER ASSY CHAIN
10
40549-GAJ-900
STAY TENSIONER
11
50136-GAJ-900
CAP PEDAL BRAKE
12
90443-107-000
Nut (8 mm)
381 ₽/шт
13
92101-060-250A
Bolt, hex., 6x25
61 ₽/шт
14
93500-040-060A
Болт
41 ₽/шт
15
94050-06000
Nut
55 ₽/шт
16
94305-60182
PINSPRING6X18
86 ₽/шт
17
94305-60282
PINSPRING6X28
94 ₽/шт
18
95701-060-5000
Bolt
83 ₽/шт
19
95801-081-5000
Bolt,flange,8x150
197 ₽/шт
