Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA XR 125 L HONDA XR125LEKB XR125LEK 2011 HONDA (VIN: LTMJD19A) F-18 PEDAL

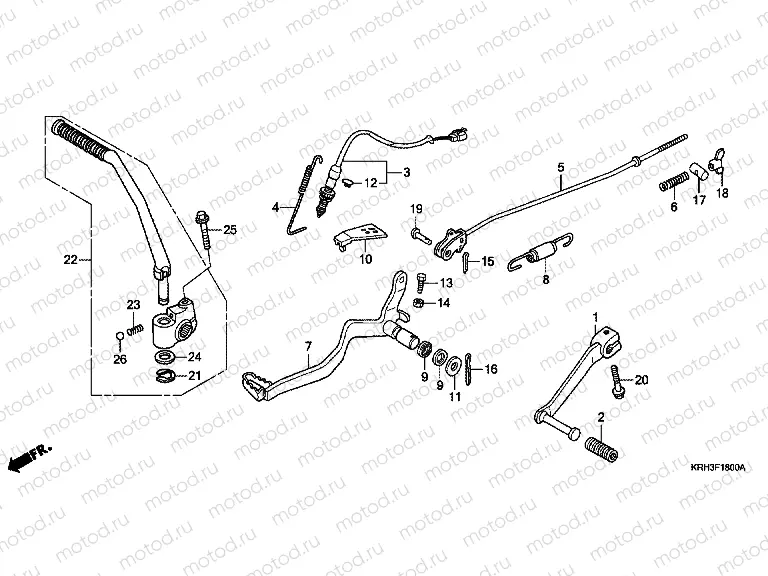

F-18 PEDAL

F-18 PEDAL
Например: 24710-KRH-900
1
24710-KRH-900
Gear change pedal
2
24781-KRH-900
UBBER, CHANGE PEDAL
3
35350-KRH-901
Commutateur de feu-stop
4
35357-KRH-900
SPRING, STOP SWITCH
5
43451-KRH-780
OD COMP,RR BRK
6
43472-KB9-750
SPRING A, BRAKE ROD
236 ₽/шт
7
46500-KRH-900
Pédale de frein
8
46513-KRH-900
SPRING SET, BRAKE PEDAL
676 ₽/шт
9
46525-KRH-900
DUST SEAL, 17X20X2.5
11
90501-KRH-900
WASHER, BUSH
13
92101-060-200A
Bolt
944 ₽/шт
14
94001-062-000S
Гайка
47 ₽/шт
15
94201-20120
PIN, SPLIT, 2.0X12
39 ₽/шт
16
94201-30280
PIN, SPLIT, 3.0X28
47 ₽/шт
17
43456-KRH-900
JOINT B, BRAKE ARM
18
95015-42000
NUT B, BRAKE ROD ADJUSTIN
157 ₽/шт
19
43455-KRH-900
PIN C, JOINT
20
95701-060-2000
Bolt
55 ₽/шт
21
28293-KRM-860
CLIPKICK STARTER
22
28300-KRH-920
ick starter lever
23
28333-KK0-000
SPRING, KICK STARTER
204 ₽/шт
24
90505-KRM-860
WASHER, 15.5X22 (15,5x22)
25
95701-080-3200
Bolt, flange, 8x32
79 ₽/шт
26
96211-08000
BALL, STEEL, #8 (1/4)
24 ₽/шт
