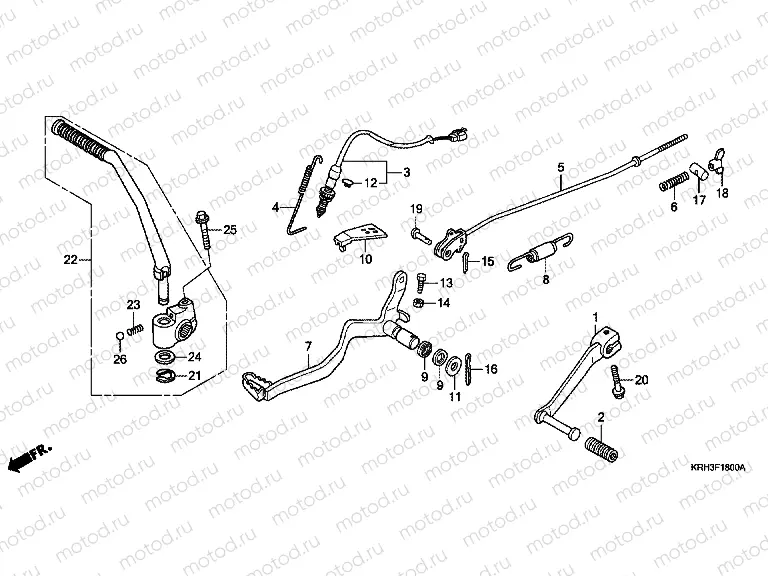

F-18 PEDAL

F-18 PEDAL
Например: 24710-KRE-900
1
24710-KRE-900
Gear change pedal
2
24781-KR3-770
UBBER, GEAR CHANGE PEDAL
330 ₽/шт
3
35350-KAZ-505
SW ASSY,REAR STOP
4
35357-KRE-900
SPRING, STOP SWITCH
5
43451-KRE-900
OD COMP., RR. BRAKE
6
43472-KB9-750
SPRING A, BRAKE ROD
236 ₽/шт
7
46500-KRE-900
Pédale de frein
8
46513-KPS-900
RING SET, BRAKE PEDAL
9
46525-KK0-003
DUST SEAL, 17X20X2.5
390 ₽/шт
10
46526-KY7-000
PROTECTORMIDDLE
11
90501-KRE-900
WASHERBUSH
12
90601-KAF-003
CLIP, SWITCH COVER
181 ₽/шт
13
92101-060-200A
Bolt
944 ₽/шт
14
94001-062-000S
Гайка
47 ₽/шт
15
94201-20120
PIN, SPLIT, 2.0X12
39 ₽/шт
16
94201-30280
PIN, SPLIT, 3.0X28
47 ₽/шт
17
95015-32001
JOINT B, BRAKE ARM
79 ₽/шт
18
95015-42000
NUT B, BRAKE ROD ADJUSTIN
157 ₽/шт
19
95015-53000
PIN C, JOINT
157 ₽/шт
20
95701-060-2000
Bolt
55 ₽/шт
