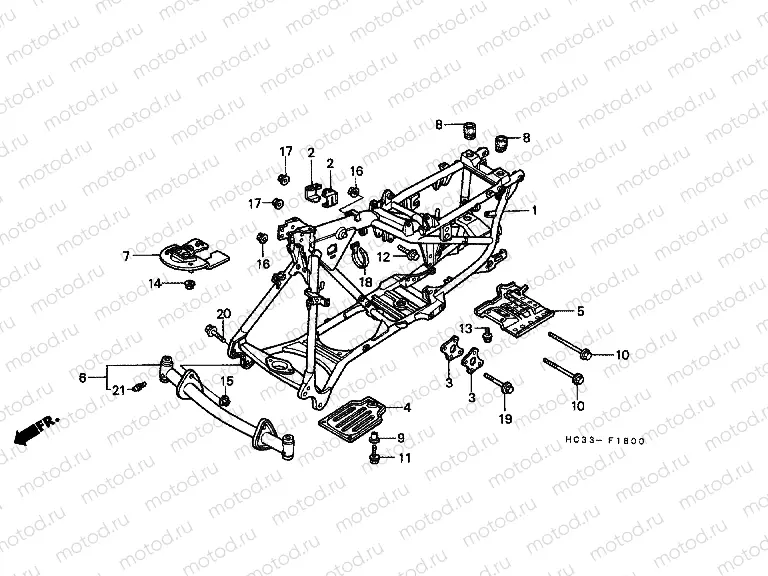

F-18 FRAME HOUSING

F-18 FRAME HOUSING
Например: 50100-HC3-000
1
50100-HC3-000
FRAME BODY COMP.
2
50271-HB6-000
No longer available
3
50351-HB6-000
ANGERFR.ENG.
4
50353-HC3-000
LEMEZ, ELSŐ SÚRLÓDÓ
5
50355-HC3-000
LEMEZ, CSÚSZÓ
6
51300-HC3-000
PIPE ASSY.KNUCKL
7
61720-HC3-000
No longer available
8
77207-HA0-000
CUSHION, SEAT MOUNTING
503 ₽/шт
9
84706-415-000
COLLAR
291 ₽/шт
10
90110-HB6-000
OLTFLANGE10X14
11
90118-958-003
Vis
373 ₽/шт
12
90119-VM6-003
is
656 ₽/шт
13
90156-964-670
Vis
14
90302-187-000
Nut (6 mm)
252 ₽/шт
15
90306-KF0-003
Nut (12 mm)
346 ₽/шт
16
94050-08000
Nut
55 ₽/шт
17
94050-10000
Nut
79 ₽/шт
18
95014-61300
BAND A3, WIRE
126 ₽/шт
19
95701-080-7500
Bolt
94 ₽/шт
20
95701-120-2508
Vis
21
96201-10000
NIPPLE, GREASE (A.T6) (M6
126 ₽/шт
