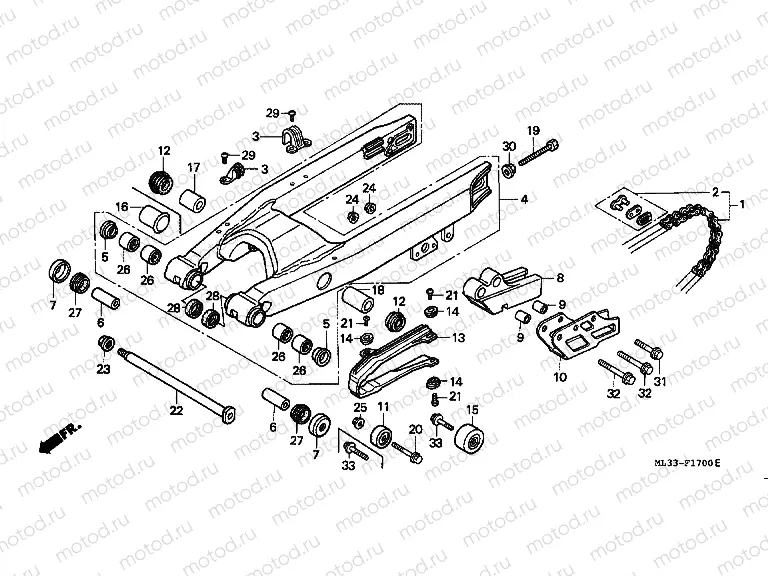

F-17 SWING ARM

F-17 SWING ARM
Например: 40530-KZ3-B02
1
40530-KZ3-B02
CHAINDRIVE RK520
14 586 ₽/шт
2
40531-KZ4-B02
JOINT, DRIVE CHAIN (RK EX
785 ₽/шт
3
43468-KS6-700
GUIDE, RR. BRAKE HOSE
969 ₽/шт
4
52100-MAC-670
SWINGARM ASSY
5
52109-KS7-830
BUSH, PIVOT THRUST
6
52141-KS7-830
COLLAR, SWINGARM
7
52144-KS7-831
CAP, DUST SEAL
8
52146-ML3-911
GUIDE, CHAIN
2 474 ₽/шт
9
52148-MAC-780
OLLAR, CHAIN GUIDE
409 ₽/шт
10
52156-ML3-910
PLATE, CHAIN GUIDE
5 205 ₽/шт
11
52158-KA3-831
ROLLER COMP., CHAIN TENSI
4 912 ₽/шт
12
52161-KS7-831
CAP, SWINGARM
480 ₽/шт
13
52170-KZ3-701
SLIDER, CHAIN
6 372 ₽/шт
14
52171-KR6-000
WASHER, CHAIN SLIDER
228 ₽/шт
15
52175-KA3-831
ROLLER COMP., CHAIN UPPER
17
52191-KZ4-890
COLLARLINK PIVOT
18
52192-KZ4-890
COLLAR, L. LINK PIVOT
19
90106-KS6-700
BOLT, HEX., 8X49
494 ₽/шт
20
90113-HB3-000
Vis
21
90115-KV3-700
is
165 ₽/шт
22
90117-KS7-831
BOLT, SWINGARM
3 082 ₽/шт
23
90301-KS7-830
NUT, SWINGARM PIVOT
818 ₽/шт
24
90301-473-003
Nut
456 ₽/шт
25
90309-428-731
Nut
409 ₽/шт
26
91071-KS7-831
Needle bearing (22x28x20)
27
91253-KS7-831
DUST SEAL, 34X38.8X8
28
91254-KS7-831
DUST SEAL, 22X28X5
723 ₽/шт
29
93500-050-080A
Болт
41 ₽/шт
30
90309-357-000
Nut (8 mm)
472 ₽/шт
31
96300-060-1200
Болт
69 ₽/шт
32
96400-060-5000
Болт
91 ₽/шт
33
96400-080-3500
Болт
86 ₽/шт
