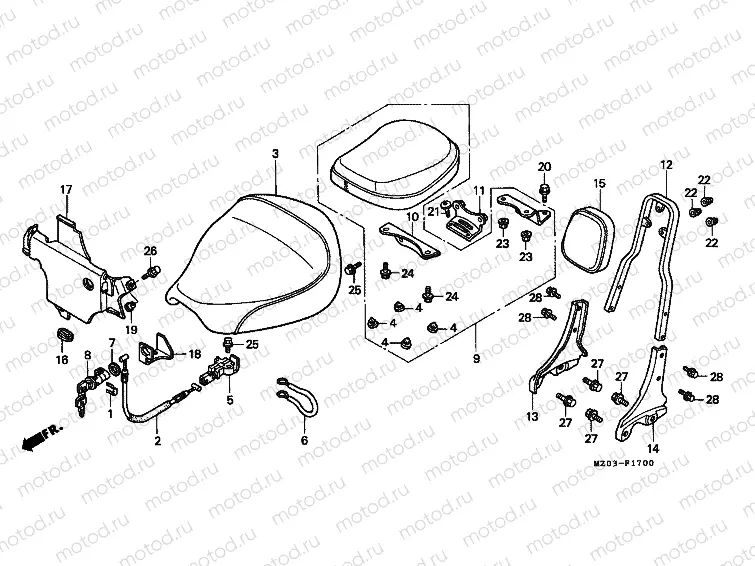

F-17 SEAT

F-17 SEAT
Например: 75581-673-000
1
75581-673-000
SPRING, LOCK KEY SETTING
277 ₽/шт
2
77156-MZ0-000
CABLE, SEAT LOCK
3
77200-MZ0-000
SEAT ASSY., MAIN
4
77215-GC2-000
Damper
363 ₽/шт
5
77220-KY6-010
HOOK, SEAT CATCH
2 933 ₽/шт
6
77236-KAZ-780
WIRE, HELMET SET
771 ₽/шт
7
77238-MZ0-000
PACKING, SEAT LOCK KEY
345 ₽/шт
8
77239-MZ0-000
KEYSEAT LOCK
9
77300-MZ0-760
SEAT ASSY., RR.
10
77302-MZ0-000
STAY A, RR. SEAT
11
77303-MZ0-000
STAY B, RR. SEAT
12
77320-MZ0-000
BAR, BACKREST
13
77350-MZ0-610
PLATE, R. GRAB RAIL
3 351 ₽/шт
14
77360-MZ0-610
PLATE LGRAB
3 396 ₽/шт
15
77400-MZ0-000
SEAT COMP., BACK
13 389 ₽/шт
16
83601-MB0-000
GROMMET A, SIDE COVER
425 ₽/шт
17
83700-MZ0-000ZC
over, center *p17p*
42 021 ₽/шт
18
83701-MZ0-000
STAYSEAT LOCK
19
84706-415-000
COLLAR
291 ₽/шт
20
90051-MN8-870
Vis
472 ₽/шт
21
90118-MR1-000
Vis
189 ₽/шт
22
90202-ZV0-000
Nut (6 mm)
197 ₽/шт
23
94050-06080
Nut (6 mm)
55 ₽/шт
24
95701-060-1008
БОЛТ С ФЛАНЦЕМ
60 ₽/шт
25
95701-060-1207
Bolt
58 ₽/шт
26
95701-060-2208
Bolt
69 ₽/шт
27
95701-080-1400
Bolt
63 ₽/шт
28
96001-060-1202
Bolt, flange, 6x12
79 ₽/шт
