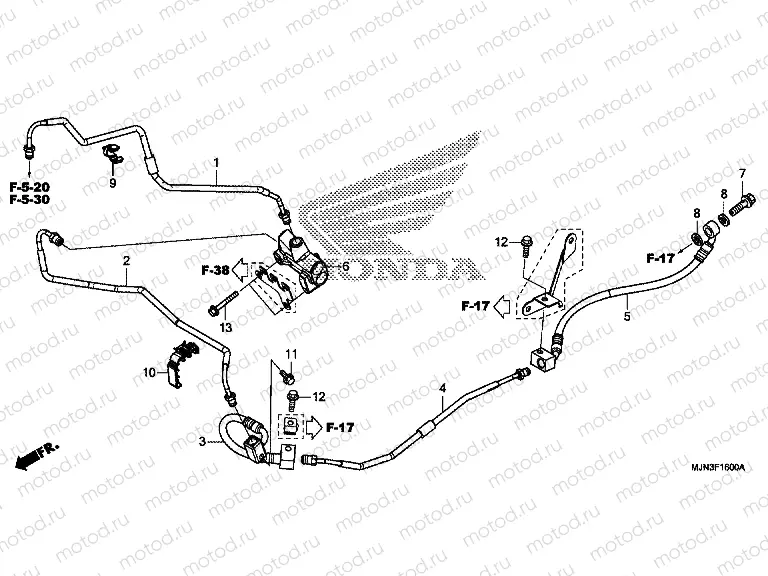

F-16 PROPORTIONAL CONTROL VALVE / REAR BRAKE HOSE

F-16 PROPORTIONAL CONTROL VALVE / REAR BRAKE HOSE

Например: 43311-MJN-A00

1

43311-MJN-A00

Durite de frein

2 168 ₽/шт

2

43312-MJN-A00

Durite de frein

2 023 ₽/шт

3

43313-MJN-A01

Durite de frein

3 757 ₽/шт

4

43314-MJN-A00

HOSE COMP DRR BR

2 023 ₽/шт

5

43315-MJN-A01

Durite de frein

3 468 ₽/шт

6

46400-MEG-H11

VALVE ASSY., PROPORTIONIN

11 220 ₽/шт

7

90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

726 ₽/шт

8

90545-300-000

Rondelle

291 ₽/шт

9

90661-MGS-D71

CLAMP, BRAKE PIPE (7.0)

244 ₽/шт

10

90661-MGS-D81

CLAMP, BRAKE PIPE (7.0X3)

271 ₽/шт

11

96001-060-1207

Bolt

63 ₽/шт

12

96001-060-2507

Болт

63 ₽/шт

13

96001-060-4007

Болт

79 ₽/шт
