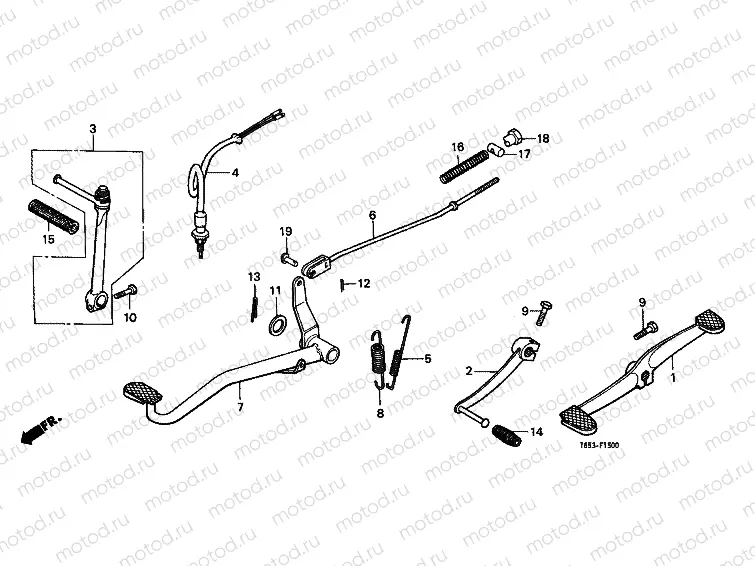

F-15 PEDAL

F-15 PEDAL
Например: 24701-045-760
1
24701-045-760
Gear change pedal
3 165 ₽/шт
3
28300-120-000
Kick starter lever
8 309 ₽/шт
4
35350-KJ9-405
Commutateur de feu-stop
1 503 ₽/шт
5
35357-KE4-730
SPRING,STOP SWITC
338 ₽/шт
6
43451-120-010
ROD, RR. BRAKE
1 148 ₽/шт
7
46500-130-690
Pédale de frein
3 613 ₽/шт
8
46514-GW8-670
Spring (Brake pedal)
429 ₽/шт
9
92101-060-200A
Bolt
944 ₽/шт
10
92101-060-220A
Bolt
58 ₽/шт
11
94102-14000
WASHER, PLAIN, 14MM
47 ₽/шт
12
94201-16150
PIN, SPLIT, 1.6X15
39 ₽/шт
13
94201-30250
PIN, SPLIT, 3.0X25
47 ₽/шт
15
95011-51000
RUBBER A, KICK STARTER
110 ₽/шт
16
95014-73100
SPRING A, BRAKE ROD
79 ₽/шт
17
95015-32001
JOINT B, BRAKE ARM
79 ₽/шт
18
95015-42000
NUT B, BRAKE ROD ADJUSTIN
157 ₽/шт
19
95015-53000
PIN C, JOINT
157 ₽/шт
