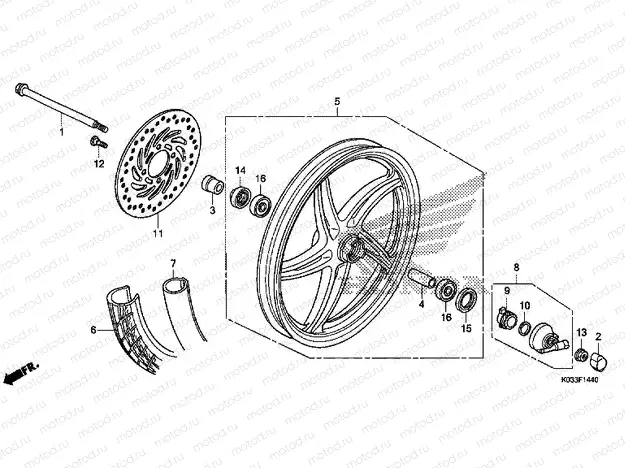

F-14-40 FRONT WHEEL (AFS1102SH)

F-14-40 FRONT WHEEL (AFS1102SH)
Например: 44301-KWW-640
1
44301-KWW-640
Front wheel axle (Front)
1 546 ₽/шт
2
44302-KTT-950
CAP, AXLE NUT
3
44311-KPH-900
Entretoise (Front wheel)
4
44620-KPH-950
Entretoise
645 ₽/шт
5
44650-KWW-C21ZB
HEEL SUB*NH303M*
6
44711-KWW-C02
TIREFR
7
44712-KWW-C01
TUBETIRE
8
44800-KWW-C10
BOX ASSY., SPEEDOMETER GE
9
44806-KWW-C00
GEARSPDMT
10
44809-KFM-900
WASHER, SPEEDOMETER GEAR
244 ₽/шт
11
45251-KWB-602
Disque de frein
15 751 ₽/шт
12
90105-KGH-900
Brake disc fixing screw
338 ₽/шт
13
90306-KYA-601
NUT, FLANGE, 12MM (PT)
409 ₽/шт
14
91251-KWW-C00
DUST SEAL21X37X7
15
91252-KWW-C10
DUST SEAL, 42X54X7
16
96150-620-1010
Bearing, radial ball, 6201uu
708 ₽/шт
