Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA CB 600 F Hornet HONDA CB600F3 CB600F Hornet 2003 HONDA (VIN: ZDCPC36A) F-14-1 FUEL TANK (CB600F3 / 4/5/6)

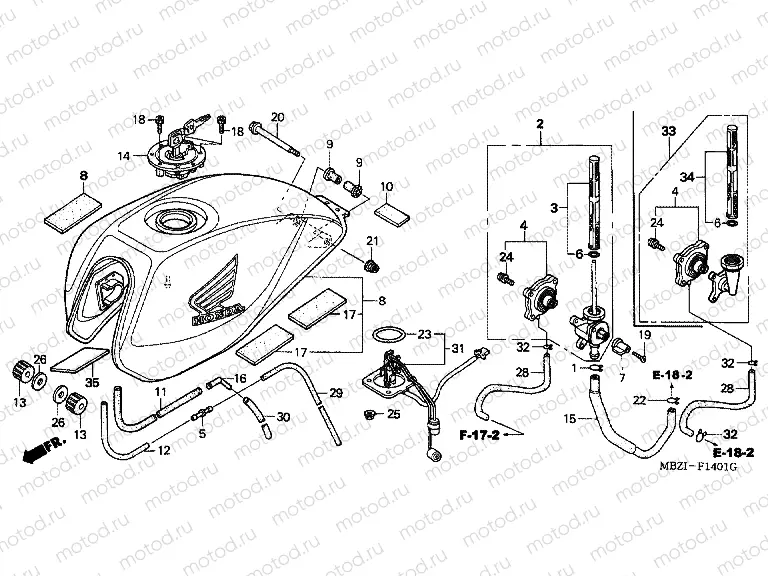

F-14-1 FUEL TANK (CB600F3 / 4/5/6)

F-14-1 FUEL TANK (CB600F3 / 4/5/6)

Например: 15707-634-000

1

15707-634-000

Collier

212 ₽/шт

2

16950-MBZ-K04

Robinet d'essence

3

16952-MBZ-K01

SCREEN SET, FUEL STRAINER

4

16953-KEA-023

COVER SET,COCK

4 703 ₽/шт

5

16958-GJ6-000

OINT, FUEL TUBE

370 ₽/шт

6

16958-KM9-005

O-Ring

425 ₽/шт

7

16963-MBZ-K00

LEVER, FUEL COCK

8

17500-MBZ-K01ZB

Tank, fuel (type5)

120 651 ₽/шт

9

17506-MBZ-K00

CUSHION, FUEL TANK RR. PI

598 ₽/шт

10

17520-MBZ-K00

CUSHION, FUEL TANK RR.

524 ₽/шт

11

17543-MCZ-000

TUBE, DRAIN

12

17544-MCZ-000

TUBE, BREATHER

13

17611-425-000

CUSHION, FR. FUEL TANK

480 ₽/шт

14

17620-MAS-E03

CAP COMP., FUEL FILLER

16 009 ₽/шт

15

17681-MBZ-610

Fuel hose

1 447 ₽/шт

16

19103-ML7-000

JOINT, TUBE

409 ₽/шт

17

64253-MR8-300

AT C, LOWER COWL

959 ₽/шт

18

90074-MT4-000

Vis

228 ₽/шт

19

90111-MBZ-610

SCREW,OVAL,5X28

173 ₽/шт

20

90135-MS2-000

BOLT, TANK HINGE

409 ₽/шт

21

90301-473-003

Nut

456 ₽/шт

22

90652-MB1-000

Collier

181 ₽/шт

23

91305-MC7-000

O-Ring

447 ₽/шт

24

93892-040-1608

Screw-washer

52 ₽/шт

25

94050-06080

Nut (6 mm)

55 ₽/шт

26

94103-10000

WASHER, PLAIN, 10MM

58 ₽/шт

28

95005-351-752A

TUBE3.5X175

29

95005-454-5020

Tube

385 ₽/шт

30

95005-803-5050

Tube (8x350)

315 ₽/шт

31

37080-MBZ-K01

RESERVE UNIT SET

7 781 ₽/шт
