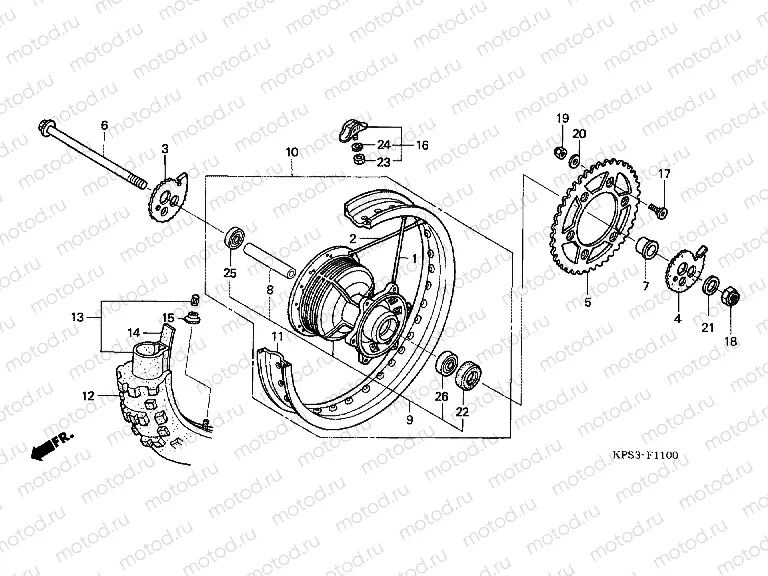

F-11 REAR WHEEL

F-11 REAR WHEEL
Например: 06420-KPS-730
1
06420-KPS-730
OKE SET A, RR.
2
06422-KPS-730
OKE SET B, RR.
3
40544-KPS-730
ADJUSTER, R. CHAIN
4
40545-KPS-730
ADJUSTER, L. CHAIN
5
41201-KPS-900
ROCKET, FINAL DRIVEN (5 (Z=50)
6
42301-KPS-900
AXLE, RR. WHEEL (Rear)
2 962 ₽/шт
7
42312-KPS-900
Entretoise
8
42620-KPS-900
COLLAR RR AXLE DI
9
42635-KPS-730
HUB SUB ASSYRR
10
42650-KPS-730
IS REPLACED BY 42650KPS730
11
42701-KPS-902
RIMRR WHEEL
27 975 ₽/шт
12
42711-KPS-902
TIRERR(PIRELLI)
13
42712-KHA-950
TUBETIRE(PIRELLI
14
42713-371-000
BAND,RIM 4.50-17
15
42714-KA3-710
CAP, VALVE
660 ₽/шт
16
42715-KA2-680
STOPPER, BEAD (1.85)
3 902 ₽/шт
17
90125-KA4-000
Vis (8x31)
346 ₽/шт
18
90305-GW2-711
Nut
958 ₽/шт
19
90309-ML3-791
NUT, U, 8MM (FUSE RASHI)
432 ₽/шт
20
90465-MC4-000
Rondelle (8 mm)
275 ₽/шт
21
90559-KPS-900
WASHER, RR. AXLE
22
91253-033-003
Joint
519 ₽/шт
23
94001-080-000S
Гайка
47 ₽/шт
24
94111-08000
WASHER, SPRING, 8MM
39 ₽/шт
25
91013-KPS-732
Roulement
26
91051-KPS-732
Roulement
1 400 ₽/шт
