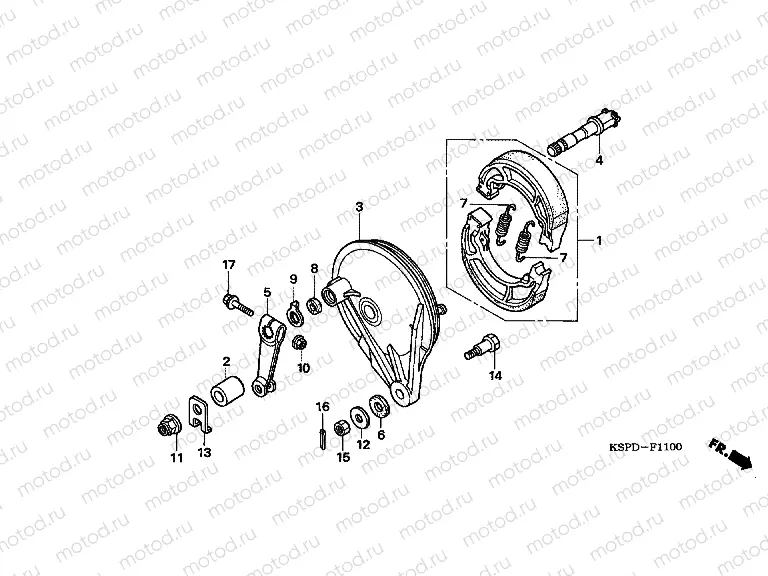

F-11 REAR BRAKE PANEL

F-11 REAR BRAKE PANEL
Например: 06430-GBJ-K10
1
06430-GBJ-K10
rake shoe
2
42313-240-000
COLLAR,PANEL SIDE
1 212 ₽/шт
3
43100-KSP-900ZC
ANEL COM*NH303M*
4
43141-KSP-900
CAMREAR BRAKE
5
43410-KSP-900
ARMREAR BRAKE
6
43434-ME1-670
RUBBER, STOPPER ARM
283 ₽/шт
7
45133-KPL-900
SPRING, FR. BRAKE SHOE
8
45134-250-000
DUST SEAL, BRAKE CAM
204 ₽/шт
9
45145-KFM-900
INDICATOR, FR. BRAKE
354 ₽/шт
10
90301-KGH-901
NUT, U, 6MM (FUJI SEIMITS
244 ₽/шт
11
90305-KCJ-951
NUT, U, 14MM (FUJI SEIMIT
487 ₽/шт
12
90524-030-000
Rondelle
189 ₽/шт
13
90560-KSP-900
WASHERR RR AXLE
14
92811-10000
BOLT A, BRAKE STOPPER
197 ₽/шт
15
94001-080-000S
Гайка
47 ₽/шт
16
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
17
95701-060-3500
Bolt, flange, 6x35
63 ₽/шт
