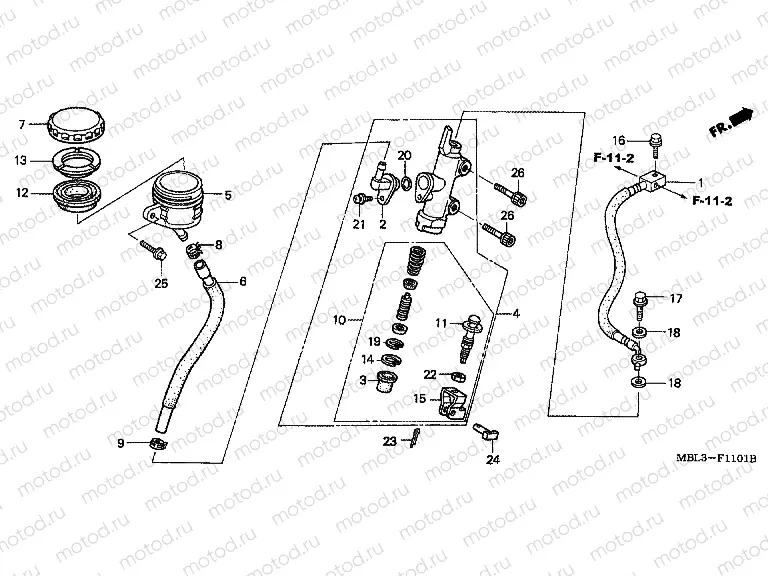

F-11-1 REAR MASTER CYLINDER (NT650V2 / 3/4/5)

F-11-1 REAR MASTER CYLINDER (NT650V2 / 3/4/5)
Например: 43310-MBL-D01
1
43310-MBL-D01
HOSE A, RR. BRAKE MAIN
2
43503-MR7-006
CONNECTOR
849 ₽/шт
3
43504-MB2-006
OOT COMP.
566 ₽/шт
4
43510-MBL-D61
rake hydraulic pump
16 457 ₽/шт
5
43511-MA6-006
CUP, MASTER CYLINDER OIL
2 168 ₽/шт
6
43512-MBL-D01
HOSE COMP., RR. BRAKE MAS
1 541 ₽/шт
7
43513-MY1-006
CAP, OIL CUP
1 965 ₽/шт
8
43514-KS6-701
CLAMP, MASTER CYLINDER OI
1 022 ₽/шт
9
43514-445-771
CLAMP, MASTER CYLINDER OI
1 022 ₽/шт
10
43520-MBL-D02
Kit de réparation pour de frein
4 774 ₽/шт
11
43530-MBL-D01
ROD COMP., PUSH
2 141 ₽/шт
12
45520-300-000
DIAPHRAGM
739 ₽/шт
13
45521-MJ6-006
PLATE, DIAPHRAGM
393 ₽/шт
14
46182-500-013
CIRCLIP
189 ₽/шт
15
46504-KV6-702
JOINT, BRAKE ROD
513 ₽/шт
16
90108-MJ1-000
Vis
291 ₽/шт
17
90145-MS9-612
BOLT, OIL, 10X22 (SAGA)
726 ₽/шт
18
90545-300-000
Rondelle
291 ₽/шт
19
90651-MBG-006
CIRCLIP, PISTON
271 ₽/шт
20
91212-422-006
O-Ring
283 ₽/шт
21
93893-040-1207
Screw-washer
61 ₽/шт
22
94002-080-000S
Гайка
47 ₽/шт
23
94201-20150
PIN, SPLIT, 2.0X15
39 ₽/шт
24
95015-54000
PIN D, JOINT
173 ₽/шт
25
95701-060-1200
Bolt
58 ₽/шт
26
96700-060-4000
Socket,bolt 6x40.
79 ₽/шт
