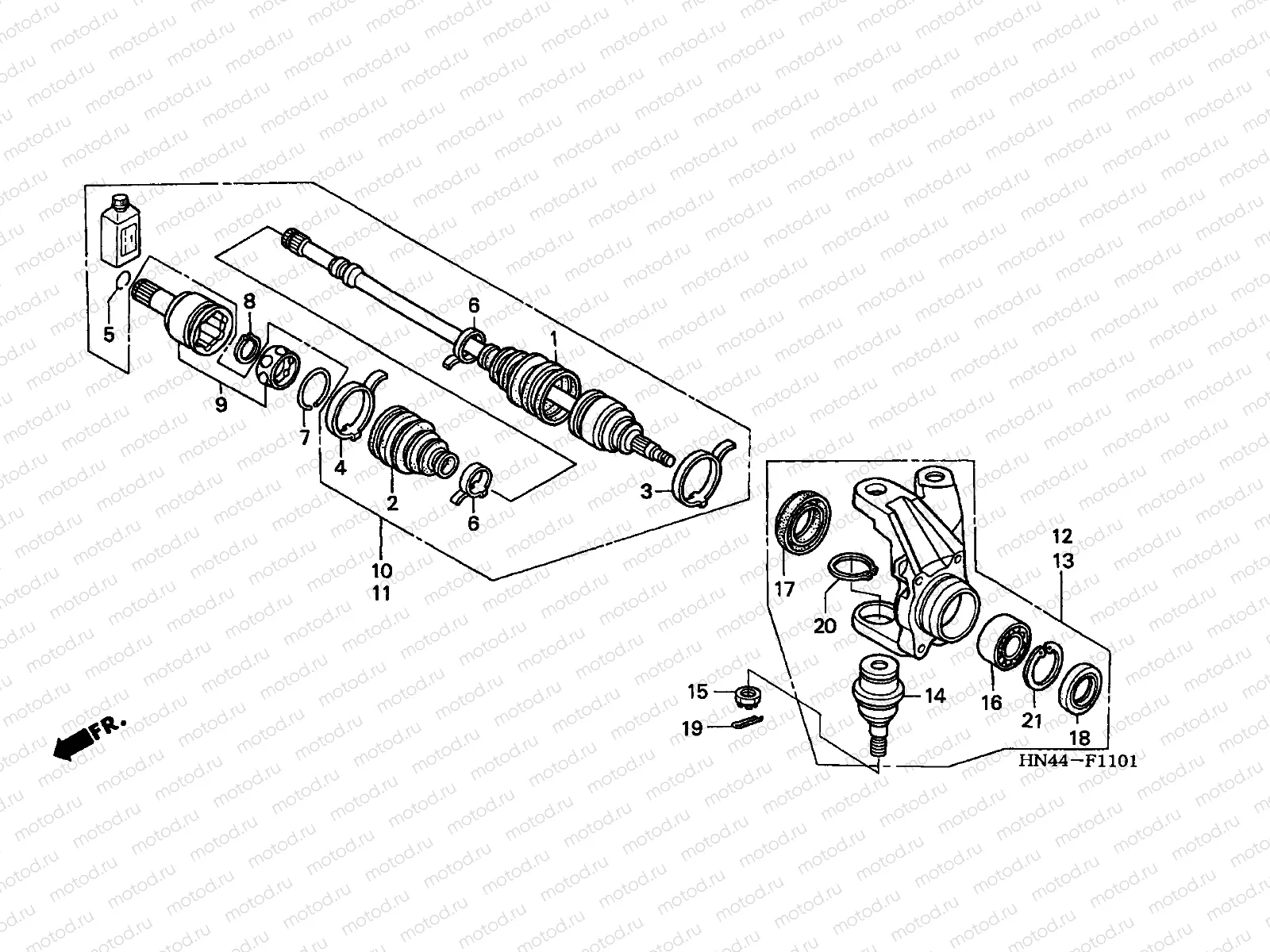

F-11-1 KNUCKLE (TRX350FM/FE)

F-11-1 KNUCKLE (TRX350FM/FE)
Например: 42202-HC5-003
1
42202-HC5-003
BOOT, OUTBOARD
2
42203-HM7-003
BOOT, INBOARD
3
42204-HC5-003
ollier
4
42205-HM7-003
BAND B
5
42206-HA7-671
RING, SNAP
6
42206-HC5-003
BAND C
7
42206-HM7-003
RING, SNAP
8
42209-HC5-003
IRCLIP
9
42220-HM7-003
JOINT COMP., INBOARD
10
42250-HN5-672
SHAFT COMP SET R
11
42350-HN5-671
SHAFT COMP., L.
12
51200-HN5-670
KNUCKLE ASSY., R.
13
51250-HN5-670
KNUCKLE ASSY., L.
14
51355-HP5-601
JOINT A, ARM BALL
15
90310-HB9-000
NUT, CASTLE, 12MM
385 ₽/шт
16
91051-HC5-003
BEARING, ANGULAR, 30X50X2
17
91209-HN5-671
DUST SEAL, 40X58X9
18
91256-HC5-003
DUST SEAL, 38X50X7
19
94201-30180
PIN, SPLIT, 3.0X18
39 ₽/шт
20
94514-32000
CIRCLIP, EXTERNAL, 32MM
21
94520-50000
CIRCLIP, INTERNAL, 50MM
