Главная Каталог товаров HONDA EPC < 124 cm³ HONDA SCV 100 Lead HONDA SCV1003 Lead 2003 HONDA (VIN: ME4JF11A) F-10 FRONT WHEEL

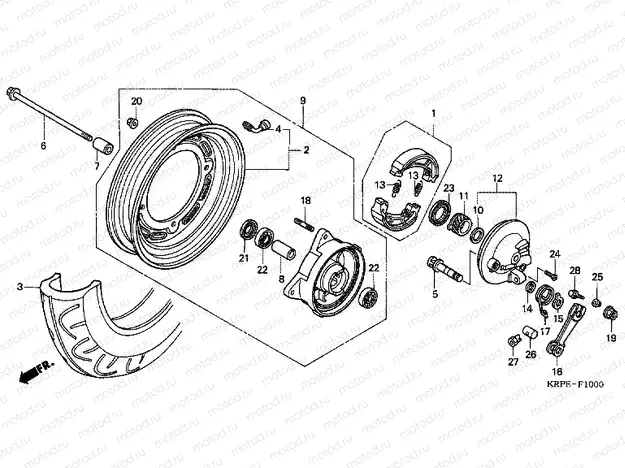

F-10 FRONT WHEEL

F-10 FRONT WHEEL
Например: 06430-GBJ-K10
1
06430-GBJ-K10
rake shoe
2
42660-KRP-980
IM SET
3
42711-KRP-982
TIRE(IRC)
4
42753-KZK-901
VALVE, RIM (TRITON)
5
43141-KPL-900
CAMREAR BRAKE
6
44301-KPL-900
Front wheel axle (Front)
7
44311-KPL-900
Entretoise (Front wheel)
8
44620-KPL-900
Entretoise
9
44650-KRP-980
WHEEL SUB ASSY., FR. (Front)
10
44809-170-003
WASHER, SPEEDOMETER GEAR
269 ₽/шт
11
44811-KPL-900
GEAR, SPEEDOMETER
12
45010-KPL-840
ANEL SUB COMPFR
13
45133-KPL-900
SPRING, FR. BRAKE SHOE
14
45134-250-000
DUST SEAL, BRAKE CAM
204 ₽/шт
15
45145-KPL-900
INDICATORFRONT B
16
45410-KRP-980
ARMFR BRAKE
17
45435-KPL-900
SPG.BRK ARM RETUR
18
90110-KG8-900
Stud bolt
228 ₽/шт
19
90306-KF0-003
Nut (12 mm)
346 ₽/шт
20
90309-428-731
Nut
409 ₽/шт
21
90754-KPL-900
SEAL, DUST, 20X32X5
22
90912-KPL-900
Roulement
23
91253-GBK-003
DUST SEAL, 41X60X7
24
93700-050-180A
Screw, oval (5x18)
39 ₽/шт
25
94050-06000
Nut
55 ₽/шт
26
95015-32001
JOINT B, BRAKE ARM
79 ₽/шт
27
95015-42000
NUT B, BRAKE ROD ADJUSTIN
157 ₽/шт
28
95701-060-3200
Bolt, flange, 6x32
69 ₽/шт
