Главная Каталог товаров Triumph EPC 2013 Triumph STREET TRIPLE R 560477 > 806645 Triumph 2013 (VIN: SMTTTL13) Exhaust System - JP Only

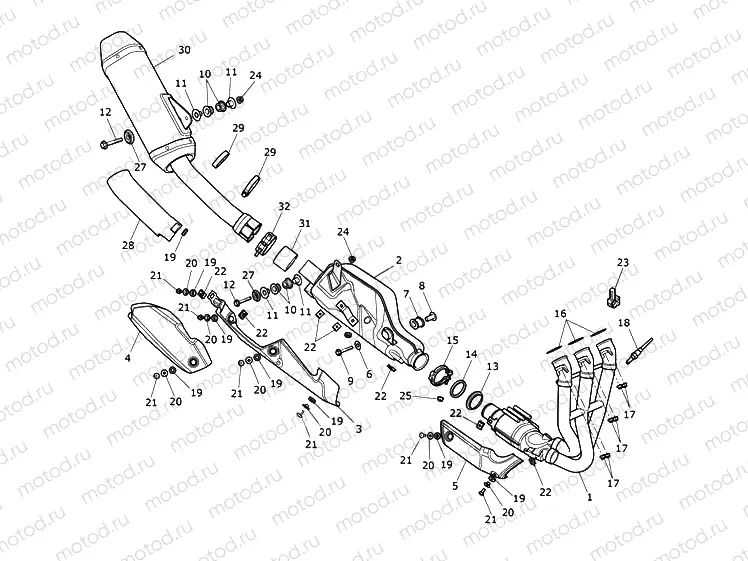

Exhaust System - JP Only

Exhaust System - JP Only

Например: T2202027

1

T2202027

Header Assembly

2

T2202017

Silencer Assy

3

T2203085

Lower Cover, Silencer

4

T2203062

Upper Cover, Silencer

5

T2202047

Finisher, Catalyst Housing

6

T3555033

Washer, 8.4 x 24 x 2

7

T2200912

Rubber Grommet, 7.86mm

8

T3010212

Flanged Sleeve, M8 x 26.6

9

T3202307

Bolt, HHF, M8 x 50, Slv

2 шт. в узле

10

T2200622

Bush, Rubber, M8

4 шт. в узле

11

T3010705

Flanged Sleeve, 8.4 x 12.4 x 1

4 шт. в узле

12

T3202307

Bolt, HHF, M8 x 50, Slv

2 шт. в узле

13

T2202044

Sleeve, Exhaust, Flanged

14

T2202043

Exhaust gasket

15

T2202039

Clamp, Exhaust

16

T2200854

Exhaust gasket

3 шт. в узле

17

T3350004

Locknut, Flanged, M8 x 1.25

2 шт. в узле

18

T2204061

Sonde lambda

19

T3020085

Grommet, Dia 18x1x9

9 шт. в узле

20

T3010126

Flanged Sleeve, M5, Slv

7 шт. в узле

21

T3330941

Screw, But/Hd, Skt, M5 x 16, S

7 шт. в узле

22

T3350123

Nut, Captive, M5, Non-Secured

7 шт. в узле

23

T3453450

Firtree, 6.5 x 6.3, Locking

24

T3350004

Locknut, Flanged, M8 x 1.25

2 шт. в узле

25

T3350067

Nut, Flanged, M6

27

T2205043

Finisher Bolt, Silencer

2 шт. в узле

28

T2202064

Cover, Link Pipe

29

T3700431

Clamp, Hose, 35-50, 12mm

2 шт. в узле

30

T2203063

Silencer Assy, Exit

31

T2202115

Exhaust gasket

32

T2206078

Clamp, Exhaust, Dia 52-54mm
