Главная Каталог товаров DUCATI EPC 2013 DUCATI Diavel CROMO DUCATI 2013 (VIN: ZDM13BLW) EXHAUST SYSTEM » EXHAUST SYSTEM

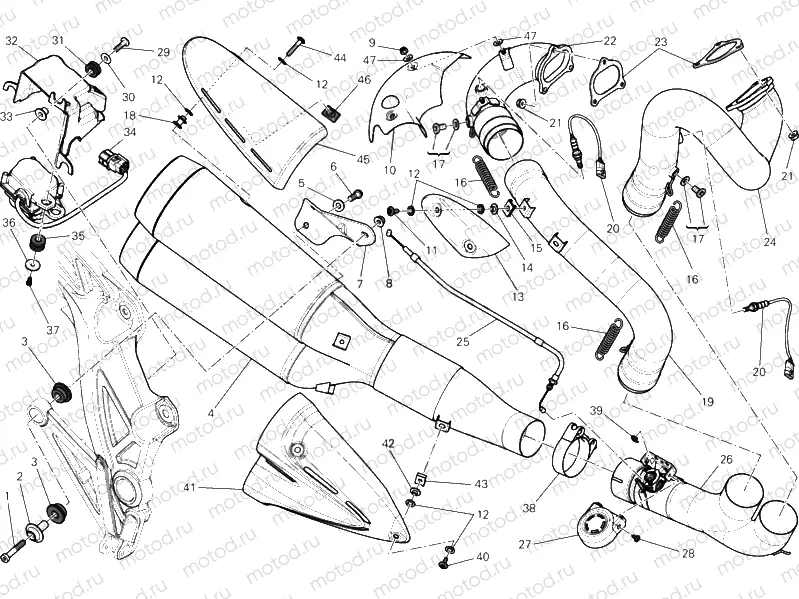

EXHAUST SYSTEM » EXHAUST SYSTEM

EXHAUST SYSTEM » EXHAUST SYSTEM
Например: 77351303B
1
77351303B
Vis
2
71319301A
BUSH
3
76411401A
Damper
4
57321111AB
SILENCER
4
57321131AB
SILENCER
5
85250041C
pc - Rondelle (8.4x17x1.6)
6
77157259E
Vis
7
57610691A
BRACKET, SILENCER
8
74941128B
5 pc - Nut (M8)
9
74810361A
5 pc - Nut (6 mm)
10
46014361D
HEAT GUARD UPPER VERTICAL
11
77210893B
Vis
12
85210721B
Rondelle
13
46014341A
HEAT GUARD CENTRE VERTICAL
14
71611071A
2 pc - Entretoise
15
85040381A
2 pc - Clip nuts
16
79925941A
COMPLETE SPRING
17
78020011A
.PLUG ASSY
18
71614241A
5 pc - SPACER 6.2X8X16
19
57112751B
EXHAUST PIPE VERTICAL
20
55212092A
Sonde lambda
21
74810241A
pc - Nut
22
57112791C
EXHAUST MANIFOLD
23
79010211A
pc - Exhaust gasket
24
57012881A
EXHAUST PIPE, HORIZONTAL HEAD
25
73210311C
.CABLE, EXHAUST VALVE
26
57211562B
PIPE, EXHAUST CENTER
27
46014822A
EXHAUST VALVE COVER
28
77240393C
Vis (M6x10 10.9)
29
77240453C
pc - Vis (M6x22)
30
85211861A
pc - Rondelle
31
76410901A
pc - Damper
32
83016161A
HOLDER
33
71610221B
SPACER
34
59340393A
ELECTRIC MOTOR, EXHAUST VALVE
35
76411301A
Damper
36
85241731A
Rondelle (5.5x20x1.5)
37
77440071A
5 pc - .SCREW, TAPPING M4.5X12
38
74141681A
Collier (61-20 mm)
39
88450031A
Seeger
40
77210882B
Vis (M5x12)
41
46014351A
HEAT GUARD BOTTOM
42
71614291AA
5 pc - Entretoise
43
85044691A
Clip nuts
44
77211011B
Vis (M6x30)
45
46014831C
HEAT GUARD UPPER
46
86610301B
Damper
47
85250091A
Rondelle (6.4x18x1)
