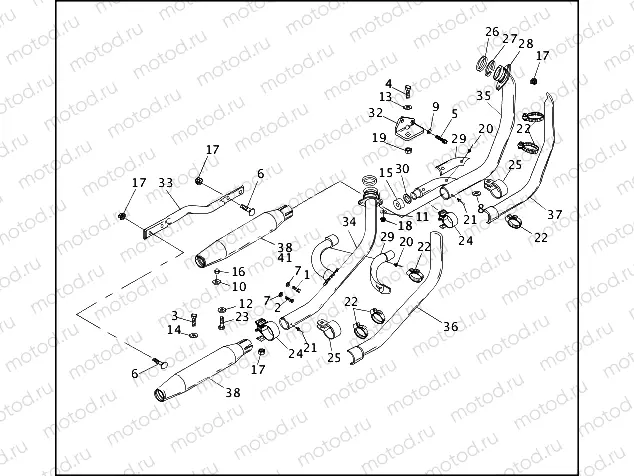

EXHAUST SYSTEM

EXHAUST SYSTEM

Например: 3210A

1

3210A

SCREW, SOCKET HEAD

2

3485A

SCREW, HEX SOCKET HD CAP

3

4036

HEX HEAD BOLT

4

4337W

SCREW, HEX CAP

5

4718A

SCREW,HEX SCKT,SEMS/LOCK

6

5445W

BOLT, CARRIAGE

7

6016

Rondelle

8

6019

Rondelle

9

6099

Rondelle

10

6235

Rondelle

11

6302

WASHER,FERROUS,HT TREAT

12

6333

Rondelle

13

6701

Rondelle

14

6702

WASHER, PLAIN, TYPE A

15

65830-03

Exhaust gasket

16

7507

ACORN NUT

17

7531

LOCKNUT.

17

7593

10 pc - Nut

18

7753

25 pc - Nut

19

7782

Nut

20

RIVET

21

8672

RIVET, BLIND

22

9955

Collier

22

10119

Collier

23

BOLT, shoulder

24

65276-62

CLAMP,MUFFLER

25

65302-82A

EXHAUST PIPE CLAMP

26

65324-83B

Exhaust gasket

27

65325-83A

RETAINING RING

28

65328-83A

EXH CLAMP RING,CHROME

29

SHIELD KIT, crossover, w/ 10119

30

65827-90

Rondelle

31

BRACKET, rear exhaust (not illustrated)

32

EXHAUST BRACKET, front

32

EXHAUST BRACKET, front

33

SUPPORT MUFFLER, gray

33

SUPPORT, muffler

34

EXHAUST PIPE, rear

35

EXHAUST PIPE, front

36

SHIELD, rear exhaust

37

SHIELD, front exhaust

38

MUFFLER

39

CLAMP BLOCK (not illustrated)

40

CLAMP PLATE (not illustrated)

41

MUFFLER (HDI)

41

MUFFLER, catalytic (Swiss)

42

TAPE, catalytic muffler (Swiss) (not illustrated)
