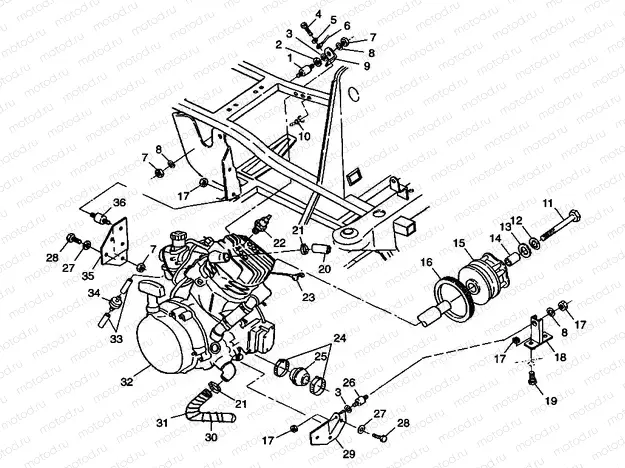

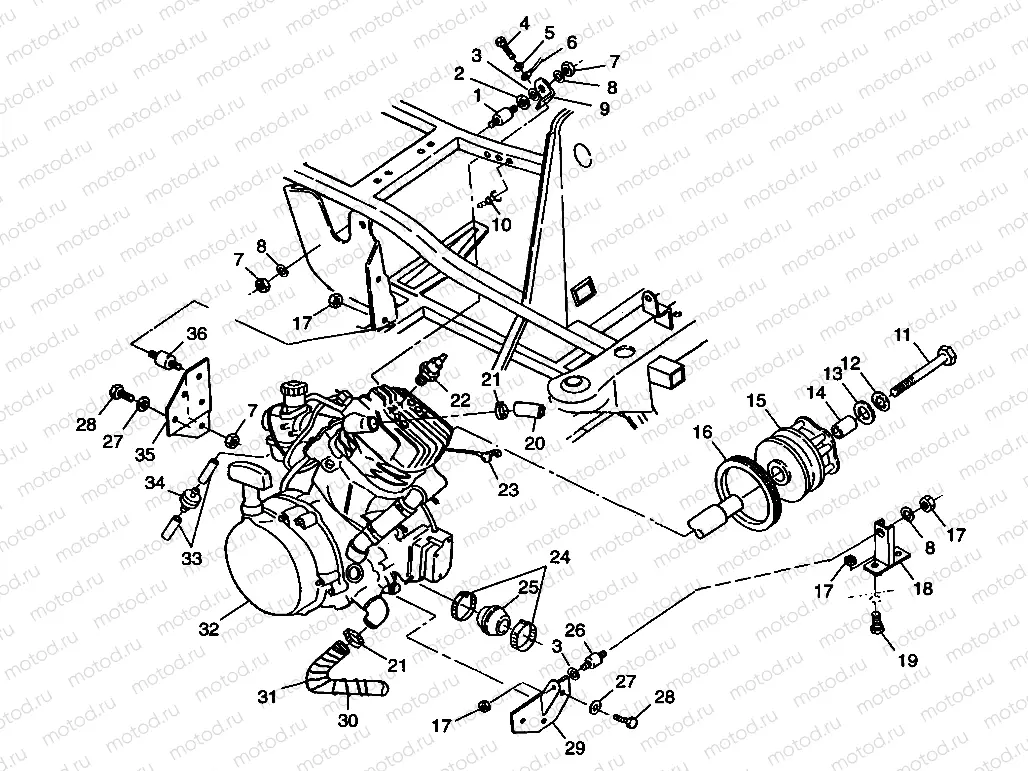

Главная Каталог товаров Polaris EPC 1998 Polaris ATV Polaris 1998 XPLORER 400L (W98CC38C) Polaris 1998 ATV ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010) | ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010)

ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010) | ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010)

ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010) | ENGINE MOUNTING XPLORER 400L W98CC38C (4945414541A010)

Например: 3022069

1

3022069

ISOLATOR-3/8-24M/M 65DURO

2

5430802

INSULATOR MOTOR MT.

3

7555823

Rondelle

4

7515321

Vis

5

7552901

Rondelle (Lock)

6

4010132

CABLE GND-ENGINE

7

7542411

NUT FLEXLOC

8

7555806

WASHER FLAT

9

5241801-067

MOUNT,ENG,TOP

10

7052192

FITTING,VENT,1/8"

11

7512566

Vis

12

7575202

Rondelle (Lock)

13

5210748

Rondelle

14

5430261

BUSHING

16

LR--

CALIPER, BRAKE, RH

17

7542403

NUT LOCK

18

1040532-067

MOUNT,ENG,LOW,BLK

19

7512457

Vis

20

5410570

HOSE ENG UPPER

21

7080614

CLAMP HOSE

22

3070156

Bougie d'allumage

23

4010129

CABLE SOL/START DBLBOOT

24

7080511

CLAMP NARROW BAND

25

5410883

BOOT,CLUTCH INTAKE(400)

26

3022067

MOUNT MOTOR

27

7552603

Rondelle (Lock)

28

7512490

Vis

29

1040231-067

MOUNT ENGINE

30

7041079

SPRING HOSE RETAINER

31

5411173

HOSE LOWER ENGINE

32

9990000

Suspension, Rear

33

8360009-600

LINE FUEL 1/8 ID 600 CM.

34

7051011

VALVE CHECK

35

5240542-067

MOUNT, REAR MOTOR, BLK.

36

3022070

ISOLATOR-3/8-24M/M 60DURO
