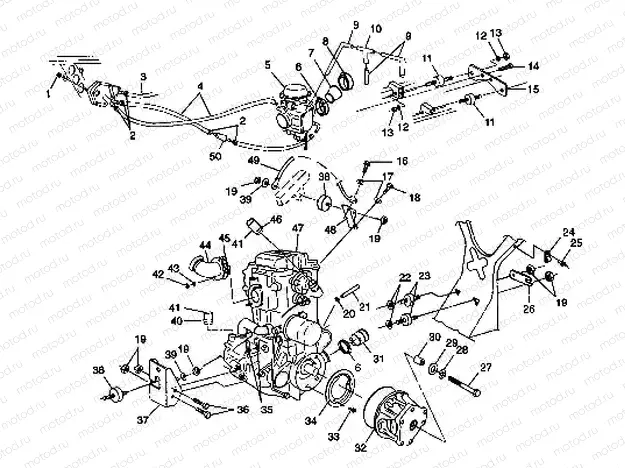

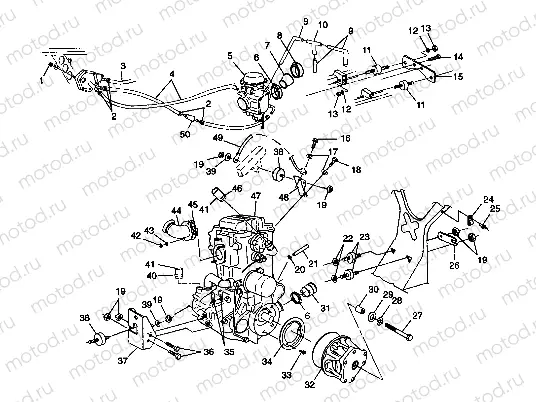

ENGINE MOUNTING - W98CH50A(C)(D)(E)(F) (4950135013a013) | ENGINE MOUNTING - W98CH50A(C)(D)(E)(F) (4950135013a013)

ENGINE MOUNTING - W98CH50A(C)(D)(E)(F) (4950135013a013) | ENGINE MOUNTING - W98CH50A(C)(D)(E)(F) (4950135013a013)

Например: 7546601

1

7546601

NUT NYLOK

2

7080003

CLAMP HOSE

3

5811490

HOSE,(.25 IDX1.75"LG.)

4

8450040-600

LINE FUEL 1/4 ID(600 CM.)

6

7080413

CLAMP BAND NARROW

7

5410995

BOOT,CARB

8

7080511

CLAMP NARROW BAND

9

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

10

7052075

FITTING TEE

11

3110032

MOUNT RUBBER

12

7552605

Rondelle

13

7542105

NUT HEX

15

5211626-067

STRAP CARB.MT BLK.

16

7512232

Vis

17

7552901

Rondelle (Lock)

18

7512315

Vis

19

7542403

NUT LOCK

20

7080694

CLAMP HOSE SPRING

22

7555815

WASHER FLAT

23

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

24

7080539

CLAMP NYLON CABLE

25

7621462

RIVET

26

5224658-067

STRAP FRAME SUPPORT BLK

27

7512566

Vis

28

7575202

Rondelle (Lock)

29

5210748

Rondelle

30

5430261

BUSHING

31

5410421

BOOT CLUTCH INTAKE

32

LR--

CALIPER, BRAKE, RH

35

7080474

CLAMP HOSE

36

7515417

Vis

37

5241150-067

MOUNT,FR.ENGINE,BLK.

38

3024012

ISOLATOR-3/8-24M/M 60DURO

39

7555801

Rondelle

40

7080614

CLAMP HOSE

41

5411410

HOSE 3/4X22

42

3087199

Nut

43

3080530

Rondelle (Lock)

44

1260771-489

WELD-MANIFOLD BLK

46

7080696

CLAMP HOSE 1.25 WORM DRIVE

47

9990000

Suspension, Rear

48

5241453

MOUNT-ENGINE TOP PLTD

49

4010132

CABLE GND-ENGINE

50

2530009

Filtre à carburant (IN-LINE)
