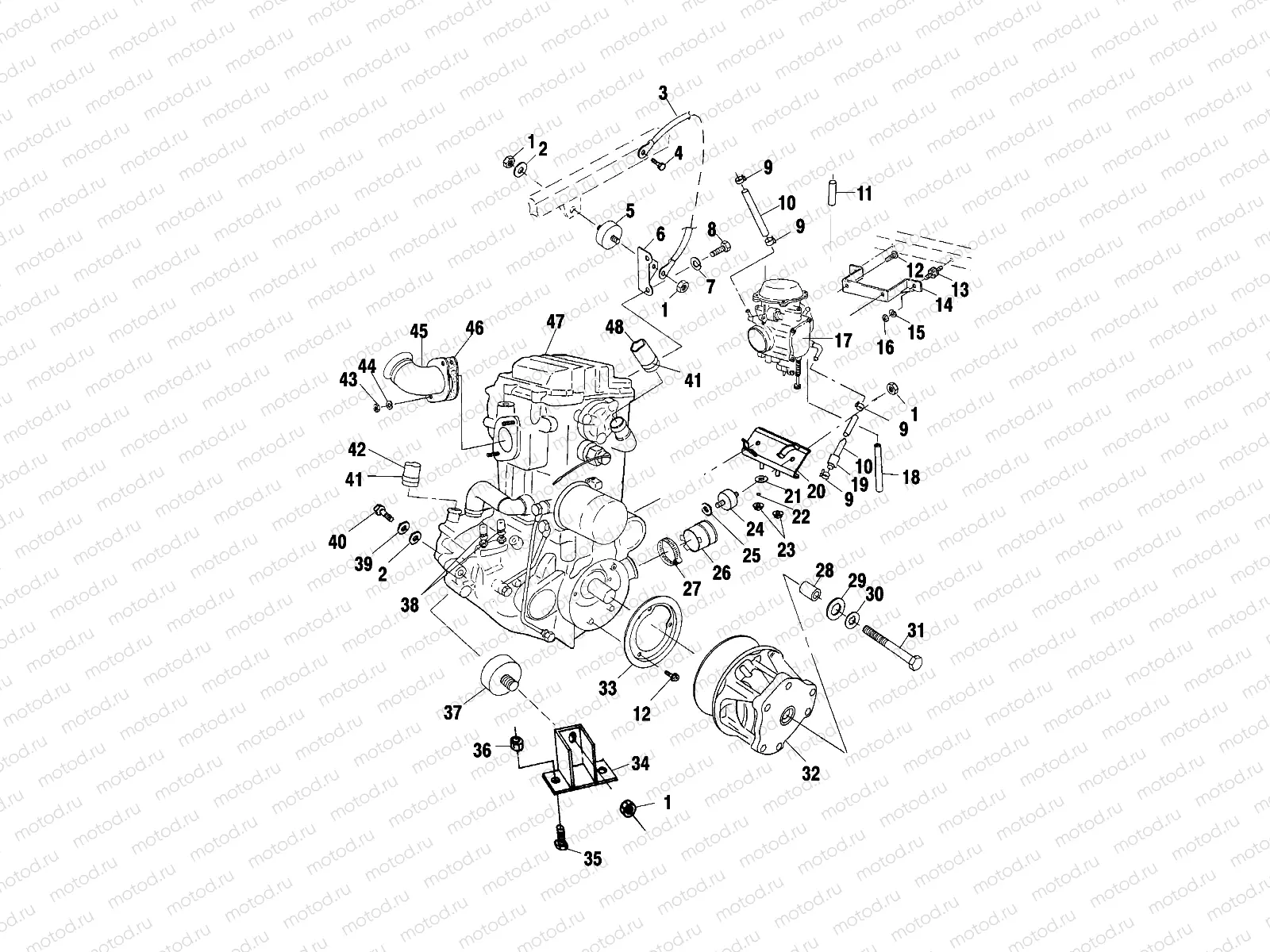

ENGINE MOUNTING - A02BG50AA/AC (4970027002A09) | ENGINE MOUNTING - A02BG50AA/AC (4970027002A09)

ENGINE MOUNTING - A02BG50AA/AC (4970027002A09) | ENGINE MOUNTING - A02BG50AA/AC (4970027002A09)

Например: 7547108

1

7547108

Nut

2

7555823

Rondelle

3

4010132

CABLE GND-ENGINE

4

7517386

Vis

5

3024012

ISOLATOR-3/8-24M/M 60DURO

6

5242674-067

BRKT,ENG.MT,TOP,BLK

7

7552901

Rondelle (Lock)

8

7512315

Vis

9

7080003

CLAMP HOSE

10

8450040-600

LINE FUEL 1/4 ID(600 CM.)

11

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

12

3084205

ASM. SCREW & WASHER

13

3110032

MOUNT RUBBER

14

5247951

BRKT-CARB MOUNT

15

7552605

Rondelle

16

7542105

NUT HEX

18

8360009-600

LINE FUEL 1/8 ID 600 CM.

19

8450105-65

SHEATH-REFLECTSLEEVE 16MMX65CM

20

1013222-067

MOUNT ENGINE REAR 500 BLK

21

5132775

SPACER-1.00X.38X.36

22

5412005

O-RING-.312X.432X.06(10)

23

7547089

NUT-3/8-16 FLG LOCK-Y

24

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

25

7555815

WASHER FLAT

26

5410421

BOOT CLUTCH INTAKE

27

7080511

CLAMP NARROW BAND

28

5430261

BUSHING

29

5210748

Rondelle

30

7575202

Rondelle (Lock)

31

7512566

Vis

34

1013756-067

Mount, Engine, Front

35

7515398

Vis

36

7542324

Nut (SELF-LOCKING)

37

3110067

MOUNT MOTOR

38

7080474

CLAMP HOSE

39

7552603

Rondelle (Lock)

40

7515438

Vis

41

7080696

CLAMP HOSE 1.25 WORM DRIVE

44

LR--

CALIPER, BRAKE, RH

45

1261391-489

WELD-MANIFOLD BLK

47

9990000

Suspension, Rear
