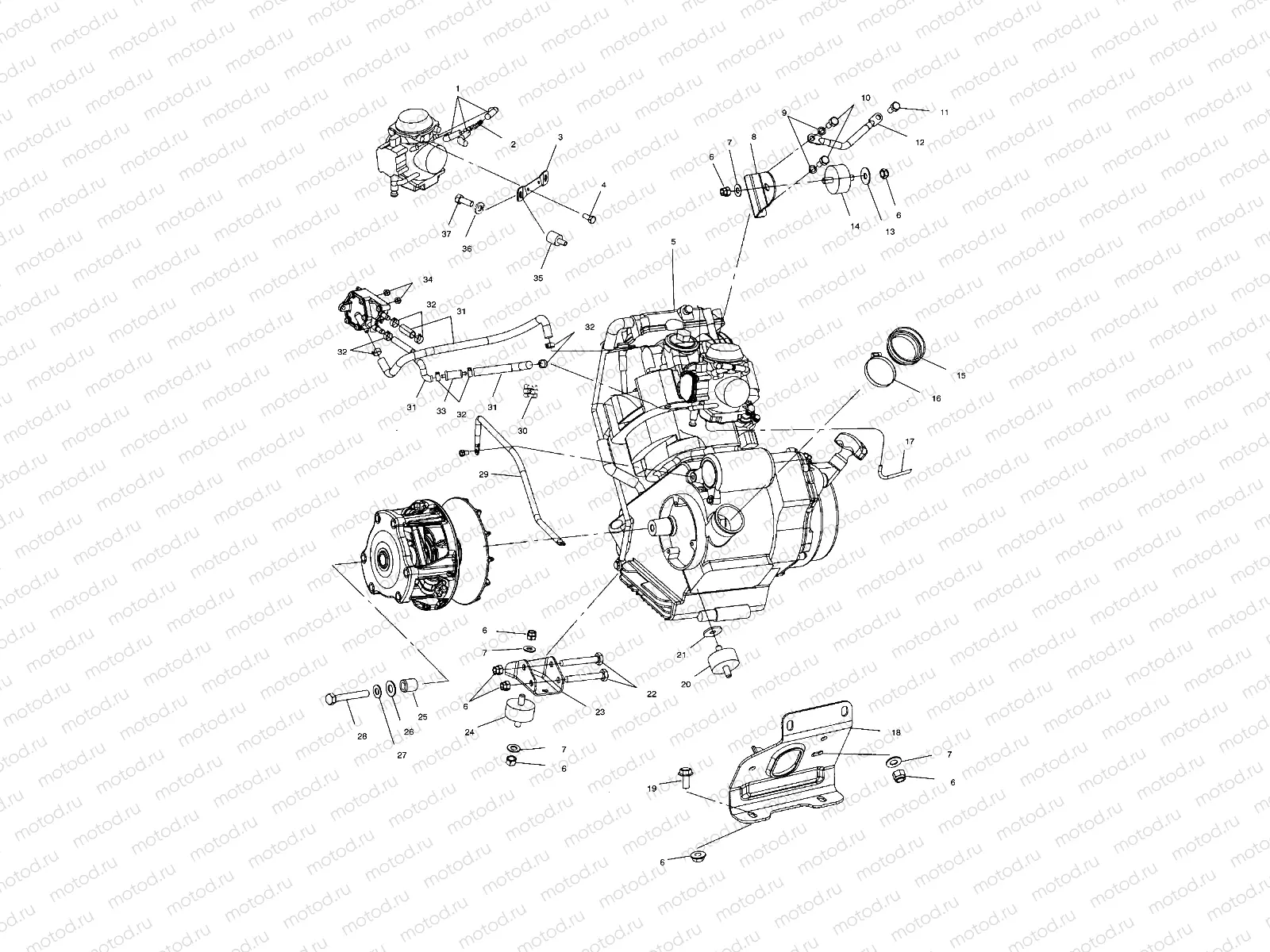

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 325 MAGNUM 2X4 HDS (A01CB32FC) Polaris 2001 ATV ENGINE MOUNTING - A01CB32AA (4963966396A010) | ENGINE MOUNTING - A01CB32AA (4963966396A010)

ENGINE MOUNTING - A01CB32AA (4963966396A010) | ENGINE MOUNTING - A01CB32AA (4963966396A010)

ENGINE MOUNTING - A01CB32AA (4963966396A010) | ENGINE MOUNTING - A01CB32AA (4963966396A010)

Например: 8450003-1525

1

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

2

7052075

FITTING TEE

3

5243720-067

BRKT,CARB,325,BLK

4

3084205

ASM. SCREW & WASHER

5

9990000

Suspension, Rear

5

9990000

Suspension, Rear

6

7547108

Nut

7

7555806

WASHER FLAT

8

5243641-067

BRKT,MOTOR MOUNT,325,BLK

9

7552901

Rondelle (Lock)

10

7512315

Vis

11

7512232

Vis

12

4010132

CABLE GND-ENGINE

13

7555823

Rondelle

14

3022074

ISOLATOR-3/8-24M/M 45DURO

15

5411721

BOOT-CLUTCH INTAKE

16

7080511

CLAMP NARROW BAND

17

8360009-600

LINE FUEL 1/8 ID 600 CM.

18

1013133-067

MOUNT,ENGINE,REAR 325,BLK (If built after 12/01/99)

19

7517289

Vis

20

3022076

ISOLATOR-3/8-24M 3/8-16M 60DUR

21

7555815

WASHER FLAT

22

7515417

Vis

23

5247342

MOUNT-LOWER FRONT ENG PLTD

24

3022077

ISOLATOR-3/8-24M/M 45DURO

25

5430261

BUSHING

26

5210748

Rondelle

27

7575202

Rondelle (Lock)

28

7512566

Vis

29

4010095

CABLE BATT/ENG. BLK.

30

7080482

T-CLIP(10)

31

8450040-600

LINE FUEL 1/4 ID(600 CM.)

32

7080003

CLAMP HOSE

33

2530009

Filtre à carburant (IN-LINE)

34

7546601

NUT NYLOK

35

3021086

MOUNT RUBBER CARB

36

7552604

Rondelle

37

7512018

Vis
