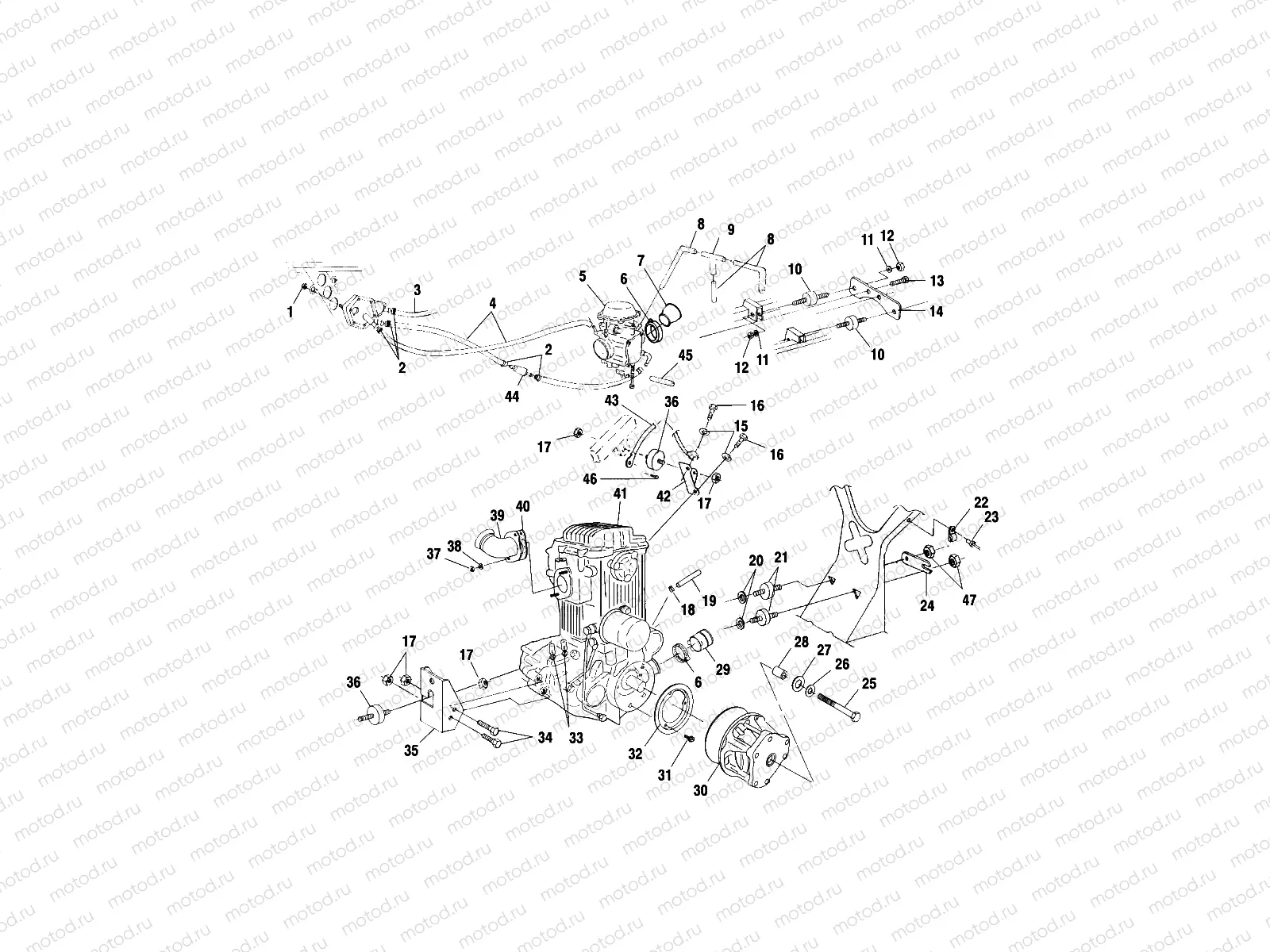

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 SPORTSMAN 335 (A00CH33AB) Polaris 2000 ATV ENGINE MOUNTING - A00CH33AA (4957715771A013) | ENGINE MOUNTING - A00CH33AA (4957715771A013)

ENGINE MOUNTING - A00CH33AA (4957715771A013) | ENGINE MOUNTING - A00CH33AA (4957715771A013)

ENGINE MOUNTING - A00CH33AA (4957715771A013) | ENGINE MOUNTING - A00CH33AA (4957715771A013)

Например: 7546601

1

7546601

NUT NYLOK

2

7080003

CLAMP HOSE

3

5811490

HOSE,(.25 IDX1.75"LG.)

4

8450040-600

LINE FUEL 1/4 ID(600 CM.)

6

7080511

CLAMP NARROW BAND

7

5410995

BOOT,CARB

8

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

9

7052075

FITTING TEE

10

3110032

MOUNT RUBBER

11

7552605

Rondelle

12

7542105

NUT HEX

13

3084205

ASM. SCREW & WASHER

14

5211626-067

STRAP CARB.MT BLK.

15

7552901

Rondelle (Lock)

16

7512315

Vis

17

7542403

NUT LOCK

18

7080694

CLAMP HOSE SPRING

19

5411477

HOSE,BREATHER(50.5 CM.)

20

7555815

WASHER FLAT

21

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

22

7080539

CLAMP NYLON CABLE

23

7621462

RIVET

24

5224658-067

STRAP FRAME SUPPORT BLK

25

7512566

Vis

26

7575202

Rondelle (Lock)

27

5210748

Rondelle

28

5430261

BUSHING

29

5410421

BOOT CLUTCH INTAKE

33

7080474

CLAMP HOSE

34

7515417

Vis

35

5241150-067

MOUNT,FR.ENGINE,BLK.

36

3024012

ISOLATOR-3/8-24M/M 60DURO

37

3087199

Nut

38

3080530

Rondelle (Lock)

39

1260771-489

WELD-MANIFOLD BLK

40

LR--

CALIPER, BRAKE, RH

41

9990000

Suspension, Rear

42

5241453

MOUNT-ENGINE TOP PLTD

43

4010132

CABLE GND-ENGINE

44

2530009

Filtre à carburant (IN-LINE)

45

8360009-600

LINE FUEL 1/8 ID 600 CM.

46

7512232

Vis

47

7542411

NUT FLEXLOC
