Главная Каталог товаров KTM EPC 2012 KTM Offroad KTM 2012 Enduro KTM 2012 Offroad 250 EXC-F SIX DAYS (8103L2) [EU] KTM (VIN: VBKEXA40) ENGINE CASE

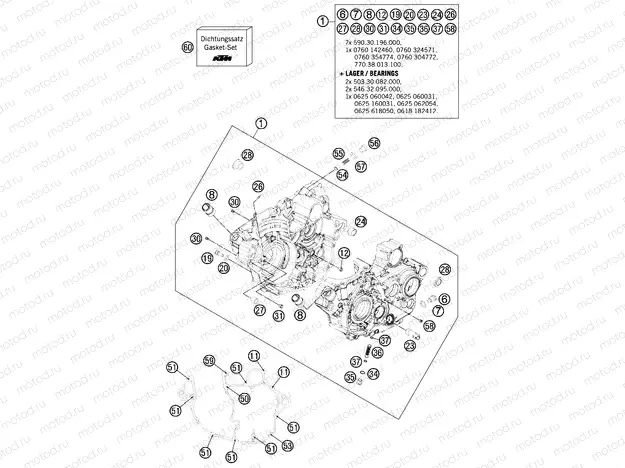

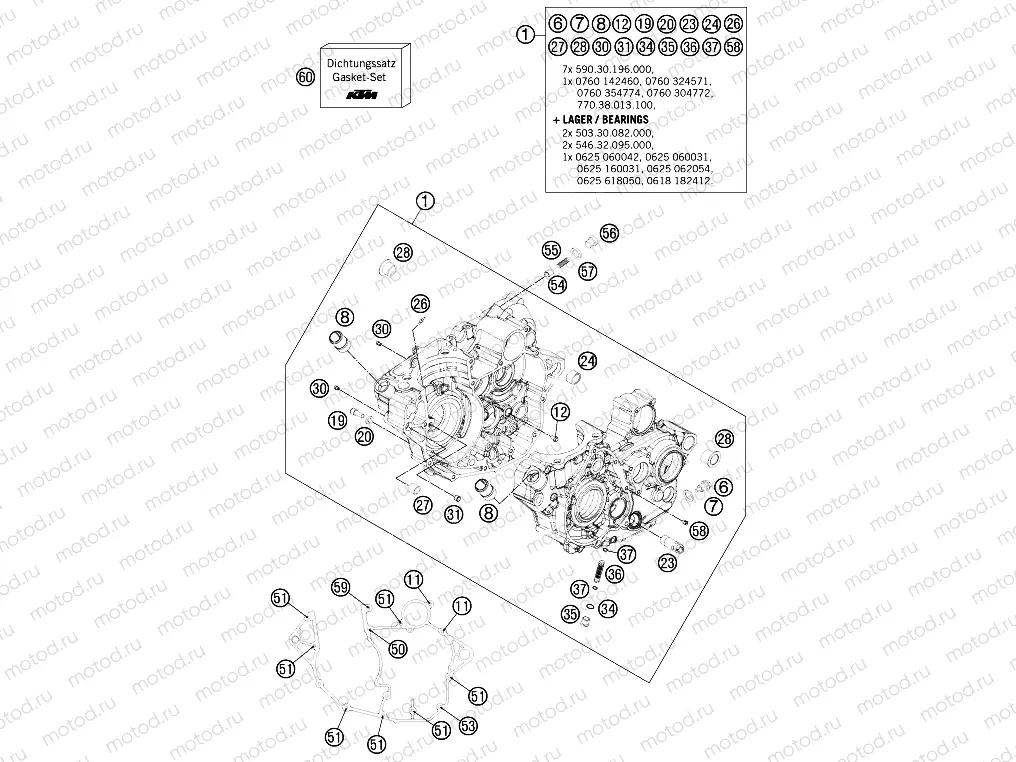

ENGINE CASE

ENGINE CASE
Например: 77130000244
1
77130000244
ENGINE CASE
6
58030021100
Vis de vidange d'huile
7
58038022000
Rondelle
8
58030010200
SCREW IN NOZZLE M20X1,5
11
0025060406
Vis
12
0025060086
Vis
19
58030080000
LOCATING SCREW M8 L=23
20
58030081000
Rondelle
23
77038022000
OIL INTAKEPIPE
24
59030024000
DOWEL 17 X 19 X 12
26
60030064070
OIL JET 70 M6X0,75 WS8 03
27
54630027000
DOWEL BUSHING 13,8X11X12
28
75030010100
CASE BUSH
30
59030058000
JET 100 BING(44-031/180) M4
31
77130023000
DOWEL 6X8X5,5
34
0770120020
O-Ring
35
77038017000
Vis de vidange d'huile
36
59038015100
OIL SCREEN 11,8x44,5MM
37
07700900151
O-Ring
50
0025060656
Vis
51
0025060506
Vis
53
0025060306
Vis
54
58038028000
VALVE PISTON D=10MM
55
58038023300
PRESSURE SPRING L=25MM D=1MM
56
0908120153
threaded plug DIN 908 M12x1.5
57
58038022000
Rondelle
58
80030058060
OIL JET "60" M4
59
0025060606
Vis
60
77030099101
GASKET SET 05-11
