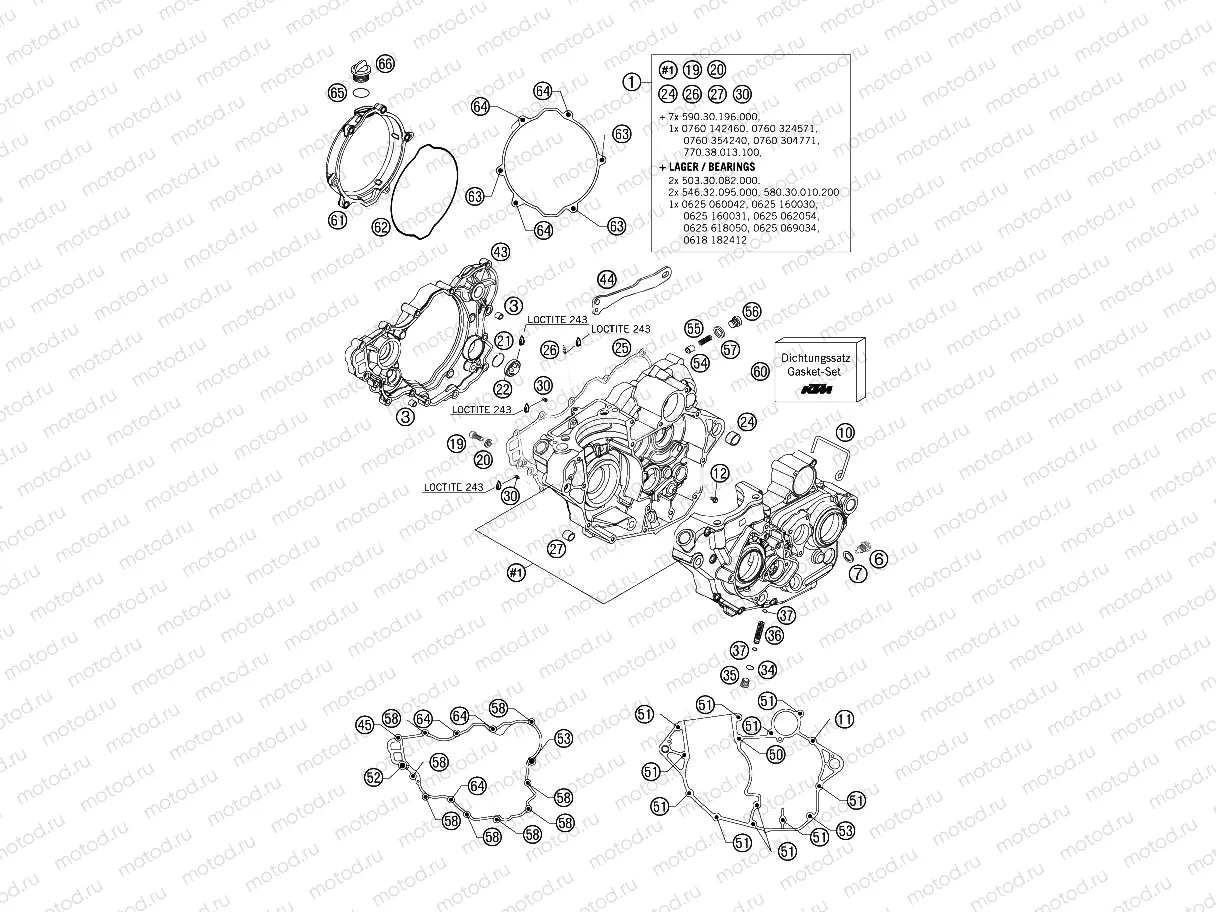

ENGINE CASE

ENGINE CASE
Например: 77030000044
1
77030000044
% ENG CASE CPL. W.TR.BEAR. 05
3
49030090000
Dowel 9,8 x 7 x 10
6
58030021100
Vis de vidange d'huile
7
58038022000
Rondelle
10
77030090000
BRACKET FOR BREATH HOSE
11
0025060456
Vis
12
0025060086
Vis
19
58030080000
LOCATING SCREW M8 L=23
20
58030081000
Rondelle
21
61030019050
CIRCLIP OIL LEVEL GLASS 03
22
59030019200
OIL SIGHT GLASS
24
59030024000
DOWEL 17 X 19 X 12
25
77030025100
Gasket - clutch cover
26
60030064070
OIL JET 70 M6X0,75 WS8 03
27
54630027000
DOWEL BUSHING 13,8X11X12
30
59030058000
JET 100 BING(44-031/180) M4
34
0770120020
O-Ring
35
77038017000
Vis de vidange d'huile
36
59038015100
OIL SCREEN 11,8x44,5MM
37
07700900151
O-Ring
43
77030001044
CLUTCH COVER CPL.
44
77030047100
CHAIN DAMPERSHEET EXC-F 07
45
0025060356
Vis
50
0015060653
Vis
51
0025060506
Vis
52
0025060406
Vis
53
0025060306
Vis
54
58038028000
VALVE PISTON D=10MM
55
58038023300
PRESSURE SPRING L=25MM D=1MM
56
0908120153
threaded plug DIN 908 M12x1.5
57
58038022000
Rondelle
58
0025060256
Vis
60
77030099000
Pochette de joints moteur
61
7703002630015
Clutch cover outside 09
8 805 ₽/шт
62
77030027000
Gasket - clutch cover (2)
63
0025060256
Vis
64
0015060556
HH COLLAR SCR. M6X55 WS=8 10.9
65
0770191015
O-Ring
66
79430020033
Remplissage d’huile de bouchon
