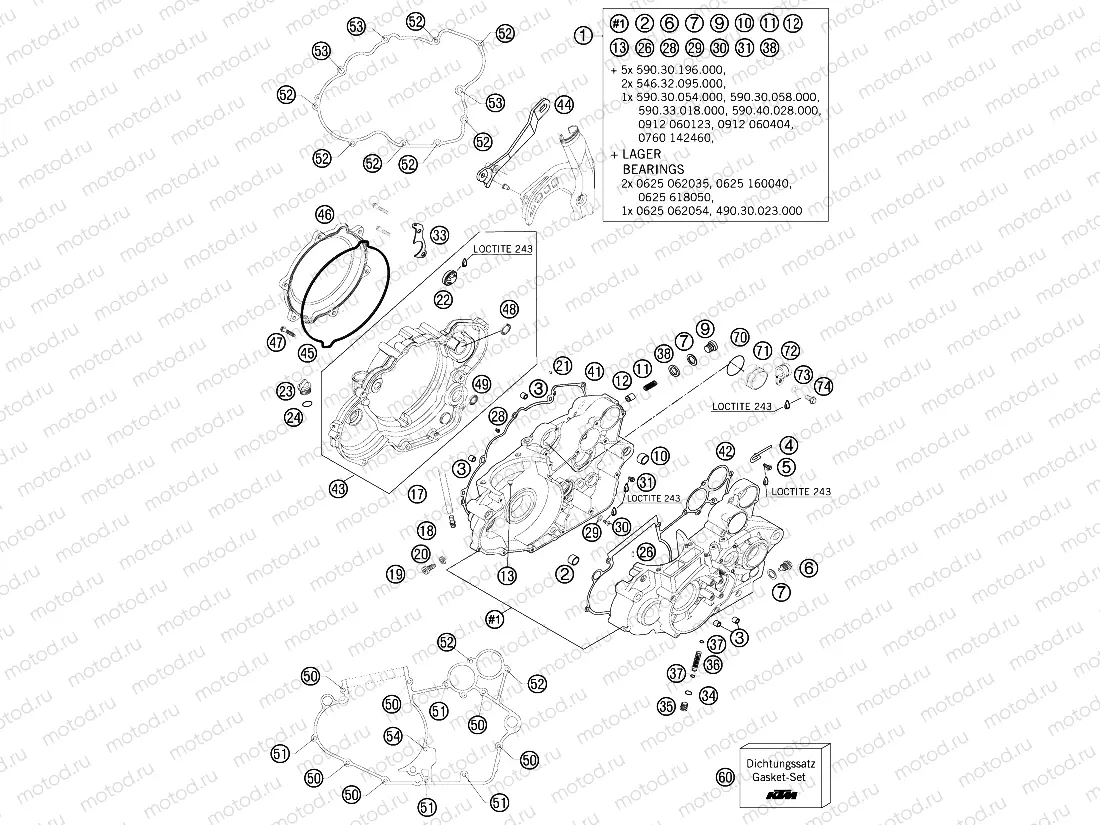

ENGINE CASE

ENGINE CASE
Например: SXS06530008
1
SXS06530008
ENGINE CASE 06
2
51030026100
DOWEL 17 X 13 X 12
3
49030090000
Dowel 9,8 x 7 x 10
4
59030090000
HANGER FOR VENT HOSE
5
0024060156
Vis
6
58030021100
Vis de vidange d'huile
7
58038022000
Rondelle
9
0908120153
threaded plug DIN 908 M12x1.5
10
59030024000
DOWEL 17 X 19 X 12
11
58038023300
PRESSURE SPRING L=25MM D=1MM
12
58038028000
VALVE PISTON D=10MM
13
59030054000
JET 60 DELLORTO M6X0,75
17
59031050100
ENGINE BREATHER TUBE 00
18
59030022100
BLEEDER FLANGE M12X1,5 WS=13
19
59030080000
LOCATING SCREW L=24 2003
20
58030081000
Rondelle
21
0402025980
NEEDLE ROLLER DIN5402 2,5X9,8
22
59030019200
OIL SIGHT GLASS
23
79430020033
Remplissage d’huile de bouchon
24
0770191015
O-Ring
26
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
28
59030058000
JET 100 BING(44-031/180) M4
29
0125050003
WASHER DIN0125-A 5,3
30
0985050083
FLAT HEAD SCREW DIN7985-M 5X 8
31
0025060086
Vis
33
59030001090
RET.BRACKET F.BRAKE LEVER HUB
34
0770120020
O-Ring
35
77038017000
Vis de vidange d'huile
36
59038015100
OIL SCREEN 11,8x44,5MM
37
07700900151
O-Ring
38
0603121830
Rondelle
41
59030025200
Gasket - clutch cover
42
59030039200
Gasket - crankcase
43
59030101044
CLUTCH COVER INSIDE CPL. 06
44
59030047100
CHAIN DAMPING PLATE RAC. 2005
45
59030027000
Gasket - clutch cover (2)
46
SXS06450235
*FACTORYCLUTCHCOVEROUT06
47
0984060163
Vis (M6x16)
48
0760193070
SHAFT SEAL RING 19X30X7 B
49
0760142460
radial shaft seal 14x24x6 B
50
0025060456
Vis
51
0025060606
Vis
52
0025060306
Vis
53
0025060356
Vis
54
0025060756
Vis
60
59030099001
Pochette de joints moteur
70
0770250030
O-Ring
71
59040034000
CAP COVER
72
59007439000
CLAMP RSGU 18/15 03
73
0125060003
WASHER DIN0125-A 6,4
74
0025060126
Vis
