Главная Каталог товаров KTM EPC 2001 KTM Offroad KTM 2001 Mini KTM 2001 Offroad 50 SX PRO SENIOR LC (600114) [EU] KTM ENGINE CASE

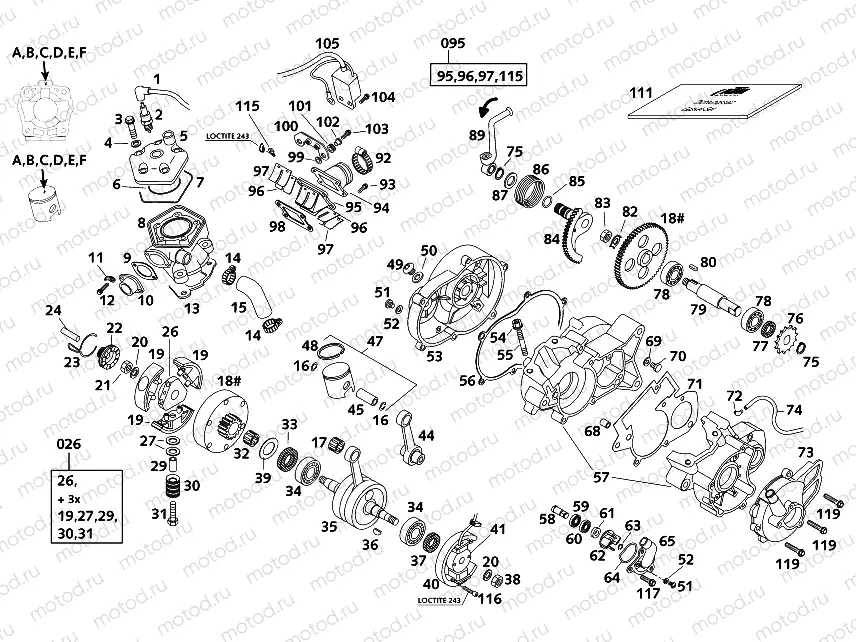

ENGINE CASE

ENGINE CASE
Например: 47039090000
1
47039090000
Spark plug cap
2
54331093210
Bougie d'allumage
3
46030079000
CYLINDERHEADSCR.HH-M7X33 2001
4
0603070121
CU-SEAL RING DIN7603- 7,3X12X1
5
45130006000
CYLINDER HEAD 50CCM LC 2001
6
46030037000
O-RING 94,97X1,78
7
46030036000
O-RING 53,7X1,78 VITON
8
45130038100
CYLINDER A. PISTONKIT
8
45130038100
CYLINDER A. PISTONKIT
8
45130038100
CYLINDER A. PISTONKIT
8
45130005000D
* CYLINDER 39,5MM "D" 50 LC 20
8
45130005000E
*CYLINDER 39,5MM "E" 50 LC '01
8
45130005000F
* CYLINDER 39,5MM "F" 50 LC 20
9
46030046000
Exhaust gasket
10
45105003100
EXHAUST FLANGE 50 LC 2002
11
51005074000
RETAINING PLATE
12
0014060203
Vis
13
46030035020
Joint d'embase cylindre (0,2 mm)
13
46030035050
Joint d'embase cylindre
14
0310000902900
Hose clip 18-29
15
45135027000
PRE-FORM HOSE CYL.-W.COVER
16
45130074000
% CIRCLIP 2001
17
45130034000
Needle bearing (12x15x14,8)
18
45132000044
PRIMARY DRIVE 50CCM LC 2001
19
45132011200
CLUTCH BLOCK 06
20
45132020000
WASHER 10,4X16,8X0,4
21
45130029000
SPECIAL NUT 10X1,25X8
22
45133052000
KICKSTARTER SLEEVE 2001
23
45133056000
KICKSTARTER SLEEVE SPRING 2001
24
45133058000
BEARING BOLT F. KICKST SLEE.01
26
45132002044
CLUTCH CPL. 20
27
45132120000
WASHER 8X15,3X0,5
27
45132120100
WASHER 8X15,3X1
29
45132004000
SPACER 6X8X19
30
45132005000
pc - CLUTCH SPRING 2001
31
0933060253
HH SCREW DIN0933-M 6X25
32
45132015000
NEEDLE BEARING 15X18X17
33
45130077000
OIL SEAL RING 17X35X7
34
45130082100
Roulement (17x40x12 2002)
35
45130018000
% CRANKSHAFT 50CCM LC 2001
36
45130075000
WOODRUFF KEY 2,5X3,7
37
45130076000
OIL SEAL RING 15X24X7
38
45130028000
SPECIAL NUT M10X1,25X6
39
45132020030
SPACER WASHER 15X25X0,3
39
45132020040
SPACER WASHER 15X25X0,4
39
45132020060
SPACER WASHER 15X25X0,6
39
45132020080
SPACER WASHER 15X25X0,8
40
45139004000
FLYWHEEL STATOR 50CCM LC 2001
41
45139005100
FLYWEEL ROTOR 50 2004
44
45130015000
CON.ROD REPAIRS. 50CCM LC 2001
45
45230033100
Piston pin
47
45130007000A
Piston cpl.39,5 "ab" 50 lc 01
18 573 ₽/шт
47
45130007000A
Piston cpl.39,5 "ab" 50 lc 01
18 573 ₽/шт
47
45130007000C
PISTONCPL.39,5"CD"50LC01
47
45130007000D
PISTONCPL.39,5"D"50LC2001
47
45130007000E
PISTONCPL.39,5"EF"50LC01
47
45130007000F
% PISTON CPL.39,5 "F" 50LC 01
48
45230030000
PISTONRING 09
49
45130020000
OIL PLUG 50 LC 2001
50
45130019000
GASKET FOR OIL PLUG
51
46035061000
PLUG M6X7
52
0603061202
COPPER GASKET 6X12X2
53
45130001000
CLUTCH COVER 50CCM LC 2001
54
46030045000
flanged nut M8 WS10
55
46030043000
STUD M8X41
56
45130025000
Gasket - clutch cover
57
45130000044
ENGINGE CASE 50CCM LC 2001
58
45135054100
Water pump shaft
59
46035057000
WATER PUMP BEARING 10X19X5
60
46035058000
WA.PU.BEAR. 10X19X5 DOUBLELIP
61
46035056100
SHAFT SEAL RING 10X18X4
62
46035055100
WATER PUMP WHEEL 60/65 '99
63
0471090010
CIRCLIP DIN0471- 9X1
64
45135053000
Gasket - water pump
65
46035052000
WATER PUMP COVER 60/65 '98
68
45130023000
DOWEL 7X9X10
69
0603100141
Rondelle
70
46030021100
OIL DRAIN PLUG M10 WS=13
71
45130039000
ENGINE CASE GASKET 50 LC 2001
72
45130022000
ANGLE PIECE 50CCM LC 2001
73
45130002000
IGNITION COVER 50CCM LC 2001
74
52031137001
PVC-HOSE 3X5MM
75
0471150010
CIRCLIP DIN0471-15X1
76
45133029009
SPROCKET 9-T 50 LC 2001
76
45133029010
SPROCKET 10-T 50 LC 2001
76
45133029011
SPROCKET 11-T 50 LC 2001
76
45133029012
SPROCKET 12-T 50 LC 2001
76
45133029013
SPROCKET 13-T 50 LC 2001
77
45133031000
OIL SEAL RING 15X24X5
78
45133028000
Roulement (15x35x11)
228 ₽/шт
79
45133002000
COUNTER SHAFT 50CCM LC 2001
80
45133024000
WOODRUFF KEY 5X5X12
82
46030078000
LOCKING PLATE D=14MM
83
46030029000
HH NUT 14X1,25X7 WS=22
84
45133050000
Kick starter shaft
85
45133057000
% O-RING 12,5X1,5
86
45133054000
KICKSTARTER SPRING 2001
87
45133059000
WASHER 16X25X1
89
45133070000
KICKSTARTER 50CCM LC 2001
92
10001120000
CLAMP 25-40 SGT 4
93
0025060206
Vis
94
45130050000
INLET MANIFOLD 50CCM LC 2001
95
46030051144
MEMBRANE HOUSING CPL.65SX 2001
96
46030052000
pc - MEMBRANE LOOSE 60/65 CCM
98
46030049000
Intake manifold Gasket
99
0125060003
WASHER DIN0125-A 6,4
100
45139028000
BRACKET IGNITI. COIL 50LC 2001
101
31008060000
rubber grommet D=8mm open
102
45139128000
COLLAR BUSHING 6,3X8X7,5
103
0025060306
Vis
104
0025060126
Vis
105
45139006000
IGNITION COIL 50CCM LC 2001
111
45130099000
Pochette de joints moteur
115
0985030063
FLAT HEAD SCREW DIN7985-M 3X6
116
0912050253
Vis (M5x25)
117
0025060166
Vis
118
0025060256
Vis
119
0025060306
Vis
120
0912060353
AH SCREW DIN0912-M 6X35
121
0912060404
AH SCREW DIN0912-M 6X40 A2
122
0015080603
Vis
