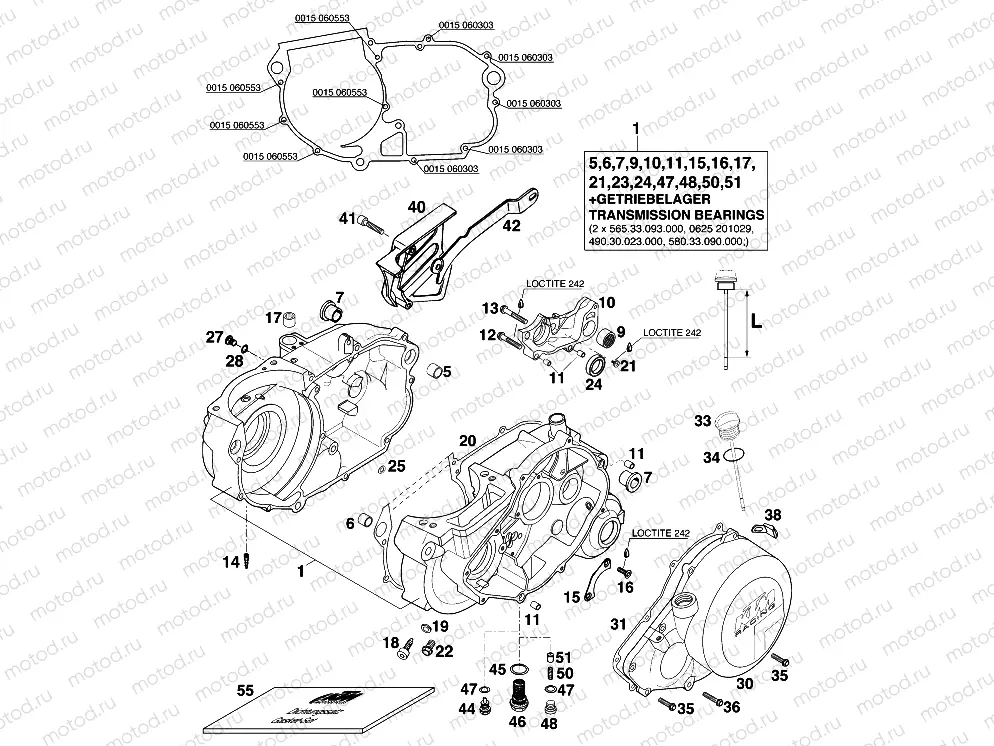

ENGINE CASE

ENGINE CASE
Например: 58330000544
1
58330000544
ENGINE CASE CPL.W.TRAN.BEAR'98
5
50130027000
DOWEL 19 X15,1X12
6
51030026100
DOWEL 17 X 13 X 12
7
50130010000
CRANK CASE BUSH
9
58033097000
NEEDLE BEARING HK 2216
10
58330011000
SHIFT MECHANISM SUPPORT LC4'94
11
49030090000
Dowel 9,8 x 7 x 10
12
0025060356
Vis
13
0025060406
Vis
14
49130450050
TUBE LW 3
15
56530017000
RETAINING PLATE
16
0991060163
FLAT HEAD SCR. DIN7991-M 6X16
17
46034027000
NEEDLE BEARING 12X18X12 2002
18
58030080000
LOCATING SCREW M8 L=23
19
0603082121
SEAL RING CU DIN7603- 8X12X1
20
58330039100
ENGINE CASE GASKET SX,SXC '98
21
0985050103
OVAL HEAD SCR. DIN7985-M 5X10
22
0025080126
Vis
24
0625618050
Roulement (61805 C3)
25
0603061001
CU-SEAL RING DIN7603-6X10X1
27
49030029000
OIL DRAIN PLUG M10X1,5 AH-WS=6
28
0603100141
Rondelle
30
58330001400
CLUTCH COVER SX'97
31
58330025400
Gasket - clutch cover
33
58330020144
OIL DIPSTICK CPL. L=93MM '96
34
0770160030
O-RING 16,00X3,00 NBR 70
35
0025060256
Vis
36
0025060306
Vis
38
58333041000
BUMP RUBBER
40
58030050700
CHAIN COVER BLACK '99
41
0912060303
AH SCREW DIN0912-M 6X30
42
58030047515
CHAIN DAMPER SHEET LC4 '90
44
58030021100
Vis de vidange d'huile
45
58038017100
Rondelle
46
58038019100
OIL DRAIN PLUG M22X1,5
47
58038022000
Rondelle
48
0908120153
threaded plug DIN 908 M12x1.5
50
58038023300
PRESSURE SPRING L=25MM D=1MM
51
58038028000
VALVE PISTON D=10MM
55
58330099300
Pochette de joints moteur
