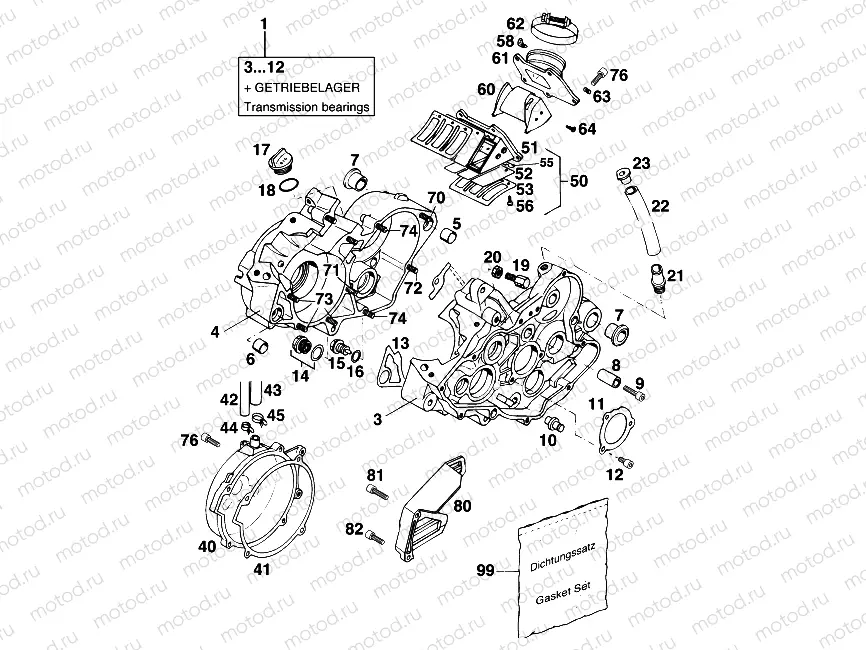

ENGINE CASE

ENGINE CASE
Например: 50230100000
0
50230100000
GASKET SET 125 '87-'96
1
50230000844
ENGINE CASE CPL.
5
56030027000
* DOWEL 17X15,5X12
6
51030026100
DOWEL 17 X 13 X 12
7
50130010000
CRANK CASE BUSH
8
50133025000
BUSHING BOLT
9
0912060253
AH SCREW DIN0912-M 6X25
10
50234021000
SPRINGBOLT
11
50230017000
BUSHING RETAINING PLATE '91
12
0912060103
AH SCREW DIN0912-M 6X10
13
50230039000
CASE GASKET
14
49030095000
LENS TYPE GN 540
15
58030021100
Vis de vidange d'huile
16
58038022000
Rondelle
17
79430020033
Remplissage d’huile de bouchon
18
0770160030
O-RING 16,00X3,00 NBR 70
19
56032019000
* CABLE BEARING WS13
20
0936080003
HEXAGON NUT DIN0936-M 8
21
56530022000
BLEEDER FLANGE D=10MM 495/IV
22
54307018001
HOSE 12X16 PER METER
23
44106018000
PLASTIC CAP
40
50230002100
IGNITION CASE COVER ALU '89
41
50230040000
Gasket - generator cover
42
58031005001
BREATHER TUBE GI 8x2 /METER
43
57005020001
HOSE 10X14 PER METER
44
50231005000
HOSE CLAMP YDNAC 10119 11MM
45
58031005100
Null
50
50230051044
REED VALVE CPL
51
54230051000
REED VALVE CASE
52
50230052000
REED VALVE CARBON 125
53
54630053000
STOP PLATE TOP
55
54230056000
PAPER STRIP
56
0084040083
Vis
60
50230054100
* VELOCITY INSERT 125 '88
61
50230050000
INTAKE FLANGE
62
54330061000
CLAMP 52/12 GEMI
63
0137060000
SPRING WASHER DIN0137-B 6
64
0983420132
Null
70
0912060653
SHCS DIN 912 M6x65
71
0912060603
AH SCREW DIN0921-M 6X60
72
0912060553
AH SCREW DIN0912-M 6X55
73
0912060503
AH SCREW DIN0912-M 6X50
74
0912060303
AH SCREW DIN0912-M 6X30
76
0912060203
AH SCREW DIN0912-M 6X20
80
54530060000
CHAIN GUARD FRONT
