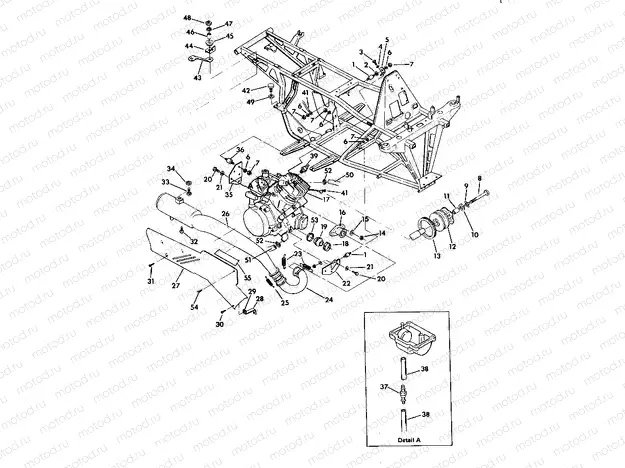

Главная Каталог товаров Polaris EPC 1991 Polaris ATV Polaris 1991 TRAIL BOSS 350L 2X4 (W917539) Polaris 1991 ATV ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A) | ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A)

ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A) | ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A)

ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A) | ENGINE and MUFFLER MOUNTING 350 2X4 - Update (4919821982005A)

Например: 3022067

1

3022067

MOUNT MOTOR

2

5430802

INSULATOR MOTOR MT.

3

7515321

Vis

4

7552901

Rondelle (Lock)

5

5222415-067

MOUNT,ENG.TOP

6

7555801

Rondelle

7

7542403

NUT LOCK

8

7512566

Vis

9

7575202

Rondelle (Lock)

10

5210748

Rondelle

11

5430261

BUSHING

12

1321976

ASM-DRIVE CLUTCH WIDE

13

5412637

SEAL-COVER CASE ENGINE

14

3087199

Nut

15

3080530

Rondelle (Lock)

16

1260543-029

MANIFOLD, BLK.

17

1211466

ENG.EC35PL-02 [No Longer Available]

18

7080346

CABLE, TIE

19

5410421

BOOT CLUTCH INTAKE

20

7512490

Vis

21

7552603

Rondelle (Lock)

22

1040231-067

MOUNT ENGINE

23

7042029

Spring

24

1260549-029

HEADPIPE WELD.

25

7041687

Spring

26

1260547-029

"""MUFFLER"""

27

5222417-067

SHIELD, MUFFLER

28

5222550-067

BRACKET

29

7670060

NUT SPEED

30

7511997

SCREW,(10)

31

7512027

Vis

32

7512666

Vis

33

7515316

Vis

34

5410436

Rondelle (Rubber)

35

5222416-067

MOUNT,REAR,ATV

36

3022068

ISOLATOR-3/8-24M/M 60DURO

37

7051011

VALVE CHECK

38

8360009-600

LINE FUEL 1/8 ID 600 CM.

39

3070156

Bougie d'allumage

41

4010067

CABLE,GROUND/ENG.

42

3110030

MOUNT, MOTOR

43

5220902-067

SUPPORT R.FENDER

44

5220901-067

BRKT,RH SUPPORT RACK Substituted by 5243469-067

44

5243468-067

BRKT SUPPORT RACK LH BLK

45

5412508

DAMPENER-VIBRATION

46

5010192

BUSHING

47

7555716

Rondelle

48

7542324

Nut (SELF-LOCKING)

49

7542432

NUT JAM

50

5410570

HOSE ENG UPPER

51

5410606

HOSE, LOWER ENG.

52

7080225

CLAMP-HOSE Substituted by 7080547

53

7080136

Collier

54

7512282

BOLT BLACK

55

5810510

INSULATION
