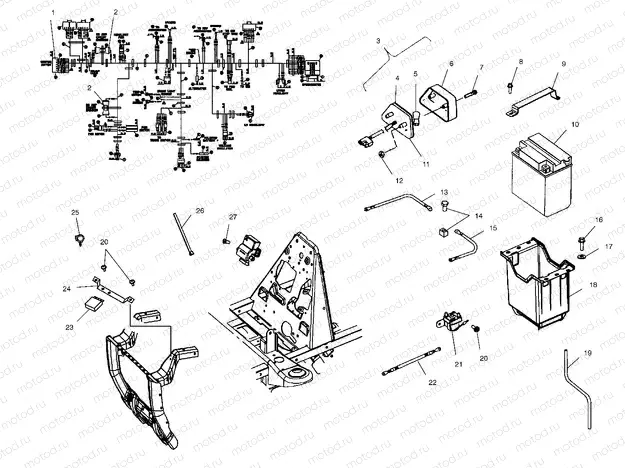

ELECTRICAL/TAILLIGHT - A03CH68AA/AC/AF/AH/AL (4977187718C07) | ELECTRICAL/TAILLIGHT - A03CH68AA/AC/AF/AH/AL (4977187718C07)

ELECTRICAL/TAILLIGHT - A03CH68AA/AC/AF/AH/AL (4977187718C07) | ELECTRICAL/TAILLIGHT - A03CH68AA/AC/AF/AH/AL (4977187718C07)

Например: 2202147

1

2202147

KIT-FUSIBLE LINK

1

2461047

HARNESS-MAIN SPORTSMAN 700

2

2200593

KIT CKT.BRKR 20 AMP

3

2410320

ASM-TAILLIGHT 12V SERIES FIL

4

4032045

Gasket

5

4030043

BULB

6

4032046

Taillight lens

7

4032029

Vis

8

7517386

Vis

9

5245125-067

STRAP-BATTERY HOLDDOWN30AMP BK

10

4016741

La batterie

11

4032064

BACKING TAILLIGHT

12

7670054

NUT PUSH-ON

13

4010470

Cable

14

2202099

BATTERY BOLT-KIT 30AH

15

4010471

CABLE-RED 8.5 BATTERY/SOLENOID

16

7512232

Vis

17

7555859

WASHER FLAT

18

5434037

BOX-BATTERY

19

5432077

TUBE VENT

20

7512024

Vis

21

4011335

SWITCH-MAGNETIC

22

4010376

CABLE SOLENOID/STATER.25

23

2203638

KIT RCT-REG RPLC 4010670

24

5133182

HEAT-SINK RECT.

25

4020139

CLIP ROSEBUD

26

7080138

CABLE TIE

27

7512027

Vis
