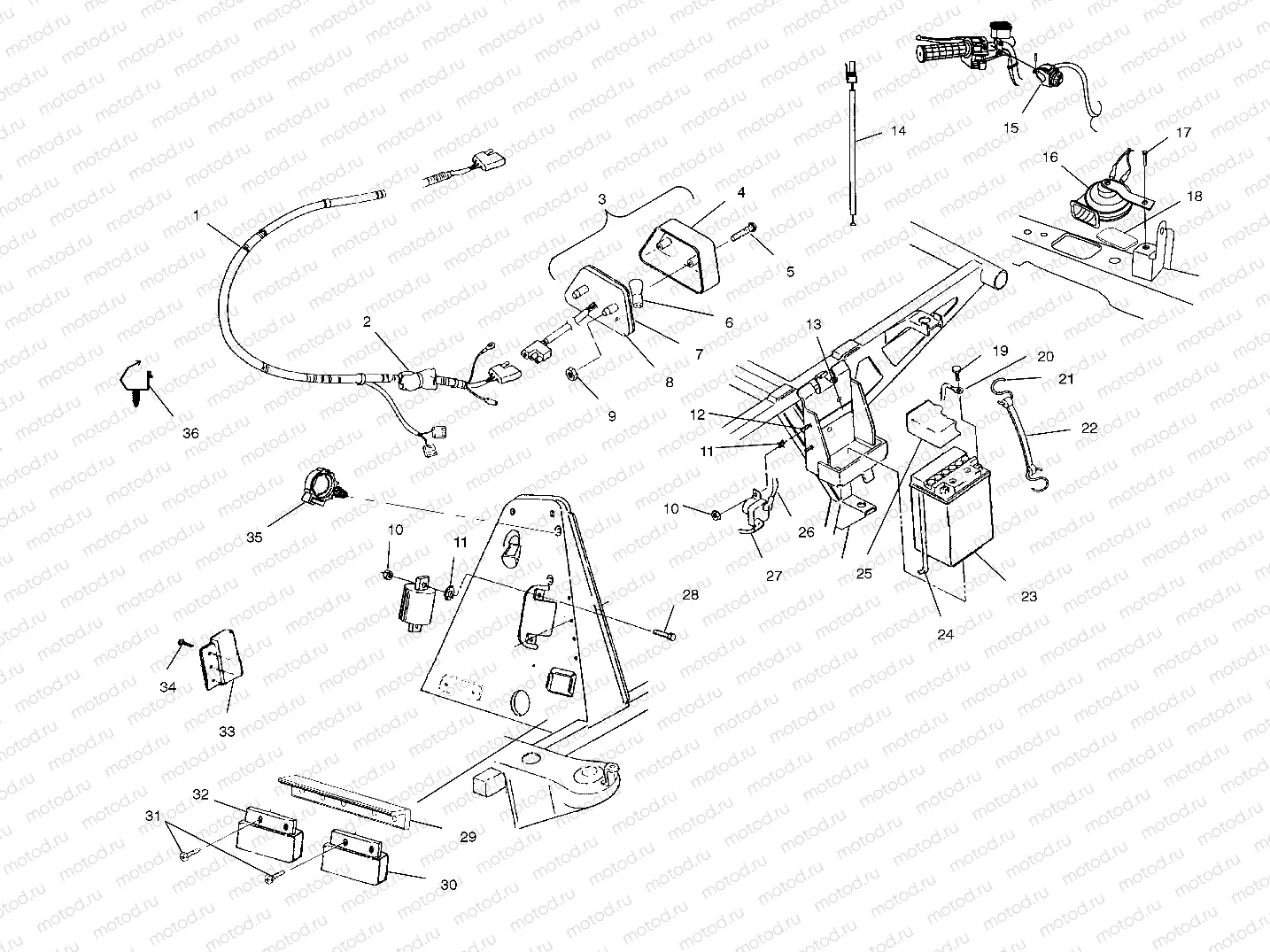

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 325 MAGNUM 2X4 HDS (A02CB32FC) Polaris 2002 ATV ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03) | ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03)

ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03) | ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03)

ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03) | ELECTRICAL/TAILLIGHT - A02CB32AA/AB/FC (4970107010C03)

Например: 2460949

1

2460949

Harness, Main Wire (AA) (AA)(AB)

1

2460961

Harness, Jumper (FC) (FC)

2

2200593

KIT CKT.BRKR 20 AMP

3

2410320

ASM-TAILLIGHT 12V SERIES FIL

3

2432034

TAIL LIGHT ASM.

4

4032046

Taillight lens

5

4032029

Vis

6

4030043

BULB

7

4032045

Gasket

8

4032064

BACKING TAILLIGHT

9

7670054

NUT PUSH-ON

10

7541925

NUT NYLOK 10-24 Y

11

7571602

Rondelle

12

7512027

Vis

13

5810290

PAD BATTERY

14

2460837

HARNESS-ADAPTER,HORN (FA)

15

4010311

SWITCH BUTTON

16

4010310

HORN (FA)

17

7517386

Vis

18

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

19

2200361

KIT-BATTERY BOLT (SHORT)

20

4010095

CABLE BATT/ENG. BLK.

21

7010032

HOOK-BATTERY STRAP

22

5418182

STRAP-BATTERY HOLD DOWN-C

23

4140006

La batterie

24

5432077

TUBE VENT

25

5431769

COVER BATTERY

26

4010094

CABLE BATT/SOLENOID RED

27

4010093

CABLE SOL/STARTER

28

7512007

Vis

29

5132214

SINK,HEAT

30

2205238

KIT-SWITCH THERMISTER LR-62

31

7512018

Vis

32

2205046

KIT-REGULATOR RECTIFIER LR-35

33

4010137

LIMITER,RPM,350 HZ,LR44-3 (AA)(CA)

34

7512017

Vis

35

4020149

CLIP ROSEBUD

36

7670109

CLIP-ROUTING
