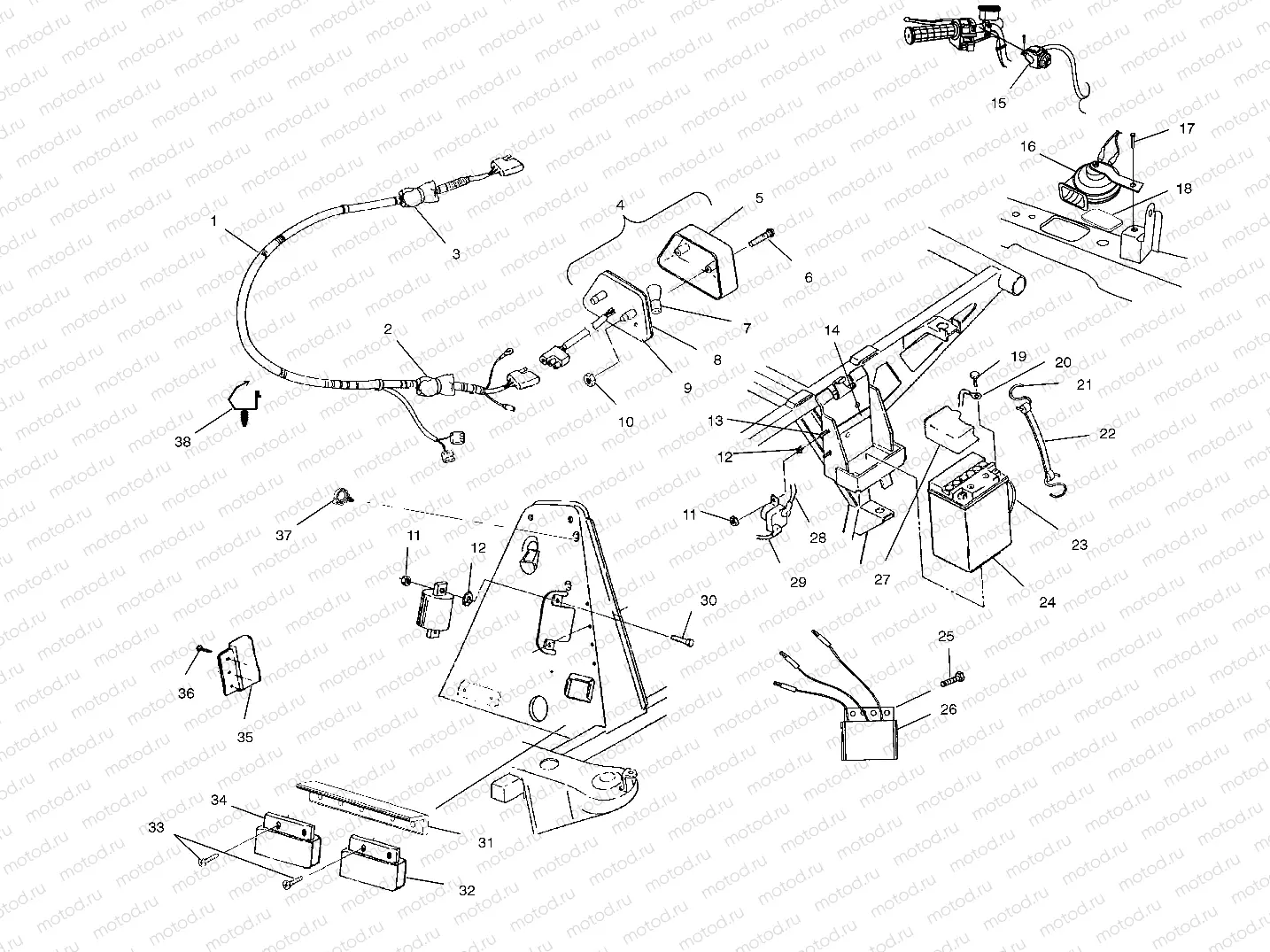

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 MAGNUM 325 4X4 (A00CD32CA) Polaris 2000 ATV ELECTRICAL/TAILLIGHT - A00CD32AA (4949404940C004) | ELECTRICAL/TAILLIGHT - A00CD32AA (4949404940C004)

ELECTRICAL/TAILLIGHT - A00CD32AA (4949404940C004) | ELECTRICAL/TAILLIGHT - A00CD32AA (4949404940C004)

ELECTRICAL/TAILLIGHT - A00CD32AA (4949404940C004) | ELECTRICAL/TAILLIGHT - A00CD32AA (4949404940C004)

Например: 2460834

1

2460834

DESC NOT_AVAILABLE (FB)

1

2460833

HRNSS WIRE MAIN MAG325 INTL

1

2460737

HARNESS-MAIN WIRE

1

2460821

HARNESS WIRE MN MAG3254X4

2

2200593

KIT CKT.BRKR 20 AMP

3

2201795

KIT-CIRCUT BREAKER FAN

4

2432034

TAIL LIGHT ASM.

5

4032046

Taillight lens

6

4032029

Vis

7

4030043

BULB

8

4032045

Gasket

9

4032064

BACKING TAILLIGHT

10

7670054

NUT PUSH-ON

11

7541925

NUT NYLOK 10-24 Y

12

7571602

Rondelle

13

7512027

Vis

14

5810290

PAD BATTERY

15

4010311

SWITCH BUTTON

16

4010310

HORN (FA)

17

7517386

Vis

18

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

19

2200361

KIT-BATTERY BOLT (SHORT)

20

4010095

CABLE BATT/ENG. BLK.

21

7010032

HOOK-BATTERY STRAP

22

5418182

STRAP-BATTERY HOLD DOWN-C

23

5432077

TUBE VENT

24

4140006

La batterie

25

7511876

Vis

26

2205237

KIT-LIMITER SPEED 695HZ CONN

27

5431769

COVER BATTERY

28

4010094

CABLE BATT/SOLENOID RED

29

4010093

CABLE SOL/STARTER

30

7512007

Vis

31

5132214

SINK,HEAT

32

2204571

KIT-SWITCH THERMISTER LR-60

33

7512018

Vis

34

2205046

KIT-REGULATOR RECTIFIER LR-35

35

4013255

LIMITER-RPM HUB GROUND LR83-3

36

7512017

Vis

37

4020149

CLIP ROSEBUD

38

7670109

CLIP-ROUTING
