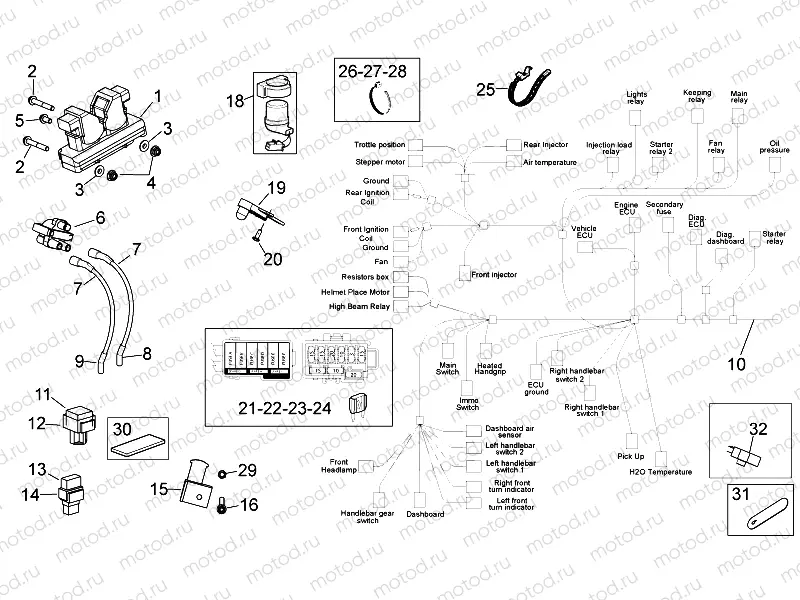

Electrical system I

Electrical system I
Например: 641197
1
641197
CDI unit assy
2
AP8152283
4 pc - Vis
3
AP8121032
5 pc - Entretoise
4
AP8152299
0 pc - Nut
5
AP8152277
Vis (6x12)
6
639187
Bobine d'allumage
7
853398
HT wire
8
GU02717450
Spark plug cap
9
AP9100423
Spark plug cap
10
860122
Main wiring harness
11
895481
Injection relay 12V-40W
12
AP8220546
Relay rubber
13
AP8224462
Relais - démarreur
14
AP8220283
pc - Rubber spacer *
15
AP8234094
Fuse block support
16
AP8152272
0 pc - Vis
17
AP8150114
Low self-locking nut
18
AP81129276
Relais - démarreur
19
AP8124936
ir temp. Sensor
20
AP8152413
Screw w/ flange M10x61
21
AP8127346
pc - Fusible (3A)
22
292507
10 pc - Fusible (10A)
23
977772
Fusible (15A)
24
AP8176100
Fuse
25
GU06609600
2 pc - Collier
26
AP8120422
Black hose 2.5X99
27
AP8102386
50 pc - Collier
28
AP8120416
pc - Black hose 180x4,5
29
AP8150451
Nut
30
AP8117033
Damper
32
896897
Resistor Module
