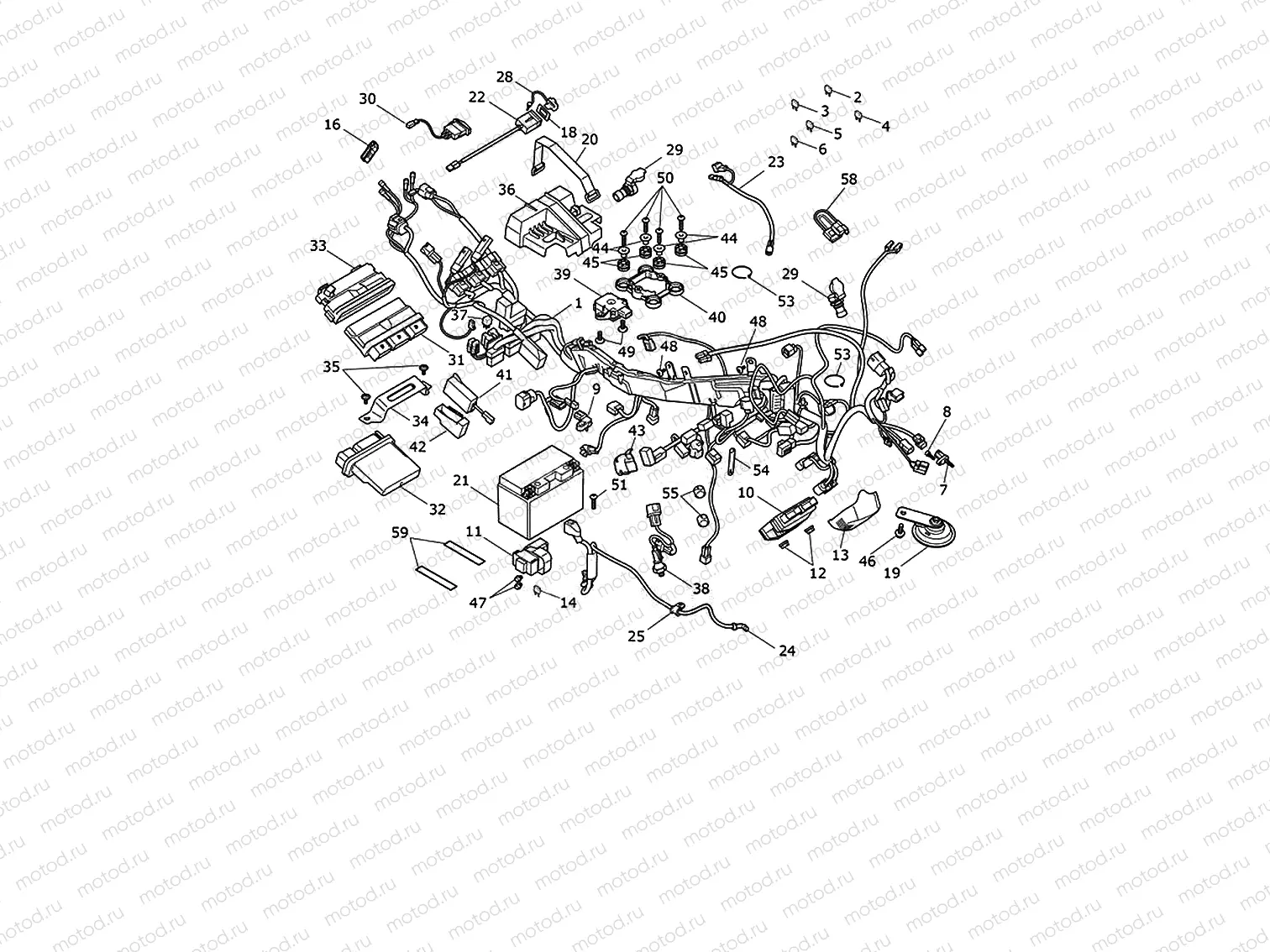

Electrical system

Electrical system

Например: T2502370

1

T2502370

Main Harness

1 шт. в узле

2

T2501305

Fuse, Mini, 5A

3 шт. в узле

3

T2501310

Fuse, Mini, 10A

2 шт. в узле

4

T2501315

Fuse, Mini, 15A

3 шт. в узле

5

T2501320

Fuse, Mini, 20A

4 шт. в узле

6

T2501325

Fuse, Mini, 25A

2 шт. в узле

7

T1290088

Sensor, Air Temperature

1 шт. в узле

8

T3050342

Screw, Cap/Hd, M5 x 16, Slv

1 шт. в узле

9

T1290975

Air Pressure Sensor

1 шт. в узле

10

T1300675

Regulator Rectifier, 50A

1 шт. в узле

11

T1310120

Relais - démarreur

1 шт. в узле

12

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

13

T2507988

Cover, Regulator Rectifier, Connectors

1 шт. в узле

14

T2500805

Fuse, 30A

1 шт. в узле

16

T2300883

weezers, Fuse

1 шт. в узле

18

T2308282

Gasket, USB

1 шт. в узле

19

T2500113

Horn Assembly, Hi Tone

1 шт. в узле

19

T2507002

Horn Assy, 440 Hz

1 шт. в узле

20

T2501789

Battery Strap

1 шт. в узле

21

T2501834

Kit, Battery

1 шт. в узле

21

T2503395

Battery, 12V, 10AH

1 шт. в узле

21

T2501823

La batterie

1 шт. в узле

22

T2501965

Charger, USB, 5V

1 шт. в узле

23

T2502042

Earth Lead

1 шт. в узле

23

T2503563

Earth Lead

1 шт. в узле

24

T2503558

Battery Positive Lead

1 шт. в узле

24

T2502044

Battery Positive Lead

1 шт. в узле

25

T3700192

P Clip, ID 8mm

1 шт. в узле

28

T2502507

Cover, USB, Rubber

1 шт. в узле

29

T2505075

Socket, Auxillary Power

2 шт. в узле

30

T2307136

Blank Plug, Switch

1 шт. в узле

31

T2505562

Chassis Control Unit

1 шт. в узле

32

T2505563

Suspension Control Unit

1 шт. в узле

33

T2505567

Jacket, CCU

1 шт. в узле

34

T2505568

Bracket, SCU

1 шт. в узле

35

T3331436

Vis (4x1)

2 шт. в узле

36

T2505586

Cover, ECU Moulding

1 шт. в узле

37

T2507729

Relay, Ultra Micro, ISO 280

1 шт. в узле

38

T2507820

Subharness, Engine

1 шт. в узле

39

T2508035

Inertial Measurement Unit

1 шт. в узле

40

T2508950

Carrier, IMU

1 шт. в узле

41

T2508989

Bluetooth Unit

1 шт. в узле

42

T2508990

Jacket, Bluetooth Unit

1 шт. в узле

43

T2509669

Cover, Throttle Body Connector

1 шт. в узле

44

T3010710

Flanged Sleeve, 6.4 x 9.6 x 13

4 шт. в узле

45

T3020601

Grommet, Castellated

4 шт. в узле

46

T3205254

Bolt, HHF, Lghtd, M8 x20, Slv

1 шт. в узле

47

T3205077

Bolt, HHF, Lghtd, M6 x 8, Slv

2 шт. в узле

48

T3330943

Screw, But/Hd, M5 x 14, Slv

2 шт. в узле

49

T3331010

Bolt, But/Hd, Skt, M6 x 16, S/

2 шт. в узле

50

T3331041

Screw, Pan/Hd, Tx, M6 x 25, En

2 шт. в узле

51

T3331422

Screw, S/Tap, Torx, 5 x 20

1 шт. в узле

53

T3700015

Cable Tie, 185.7 Long

2 шт. в узле

54

T3700212

Band, Rubber

2 шт. в узле

55

T3700259

Rubber Band, 43mm

2 шт. в узле

57

T2505828

Heatshield, Rubber

1 шт. в узле

58

T2509847

oll Gate Flylead

1 шт. в узле

59

T2503398

Rubber Pad

2 шт. в узле
