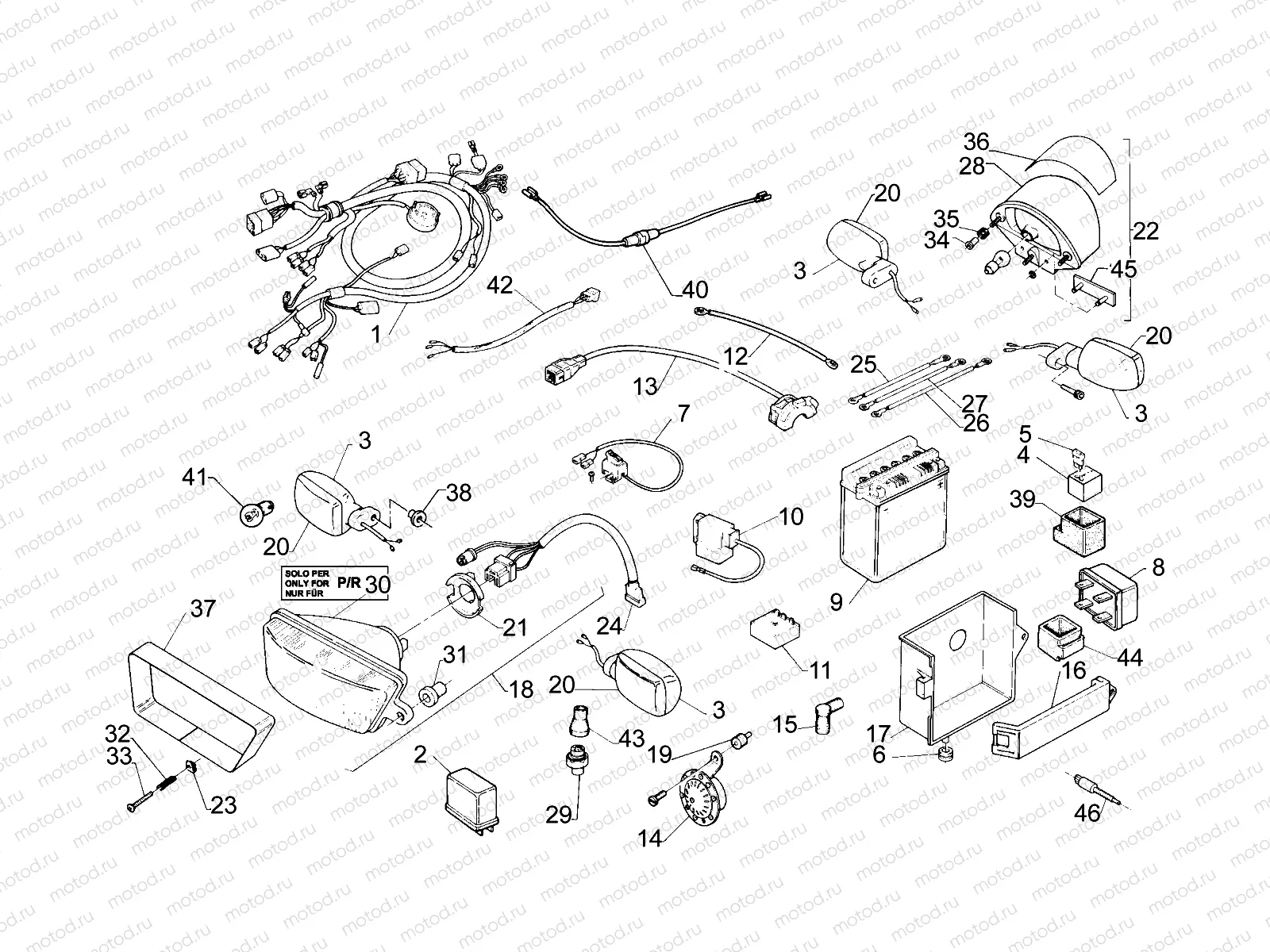

Electrical system

Electrical system
1
AP8212418
Main wiring harness
2
AP8124235
Relais clignotant
3
AP8112687
Clignotant
4
AP8212143
Fuse and diode box
5
CM225607
Fusible (7,5A)
6
AP8120030
Rubber spacer
7
AP8212831
Starter device
8
AP8112523
Relais - démarreur
9
32YTX5LBS
a batterie
10
AP8212474
CDI unit
11
AP8212121
Régulateur de tension
12
AP8212212
H.T. wiring
13
AP8212763
LH lights sel. w/wiring
13
AP8212752
LH lights sel. w/wiring
14
AP8212421
Horn
15
AP8220179
Sparkplug cap
16
AP8230121
Battery holder cover
17
AP8230791
Battery bracket
18
AP8212308
Optique de phare
18
AP8212713
Optique de phare
19
AP8120459
Silentblock
20
AP8112756
Lentille clignotant
21
AP8212383
Headlight lampholder
22
AP8124352
Taillight assy.
23
AP8202449
10 pc - Clip nuts
24
AP8212372
Headlight wiring w/harness
25
AP8212203
Ground-battery lead
26
AP8212423
Relay-starter motor cable
27
AP8112459
Relay battery wiring
28
AP8112883
Taillight lens
29
AP8222019
Water temperature switch
30
AP8212374
Light assembly
31
AP8220150
pc - Damper
32
AP8121798
Coil compress. spring *
33
AP8221035
Vis
34
AP8121790
Entretoise
35
AP8112599
Rubber spacer *
36
AP8115944
Light guard decal
37
AP8137646
Upper light guard decal
37
AP8137647
Lower light guard decal
37
AP8115438
Front headlight decal set
38
AP8121795
0 pc - Entretoise
39
AP8212525
Rubber spacer *
40
AP8212440
Diodes cable
41
AP8112854
Lamp
42
AP8212460
Taillight wiring harn.
43
AP8120482
Rubber spacer *
44
AP8220201
Rubber spacer *
45
AP8112916
Rear reflector
46
AP8212196
Commutateur de feu-stop
