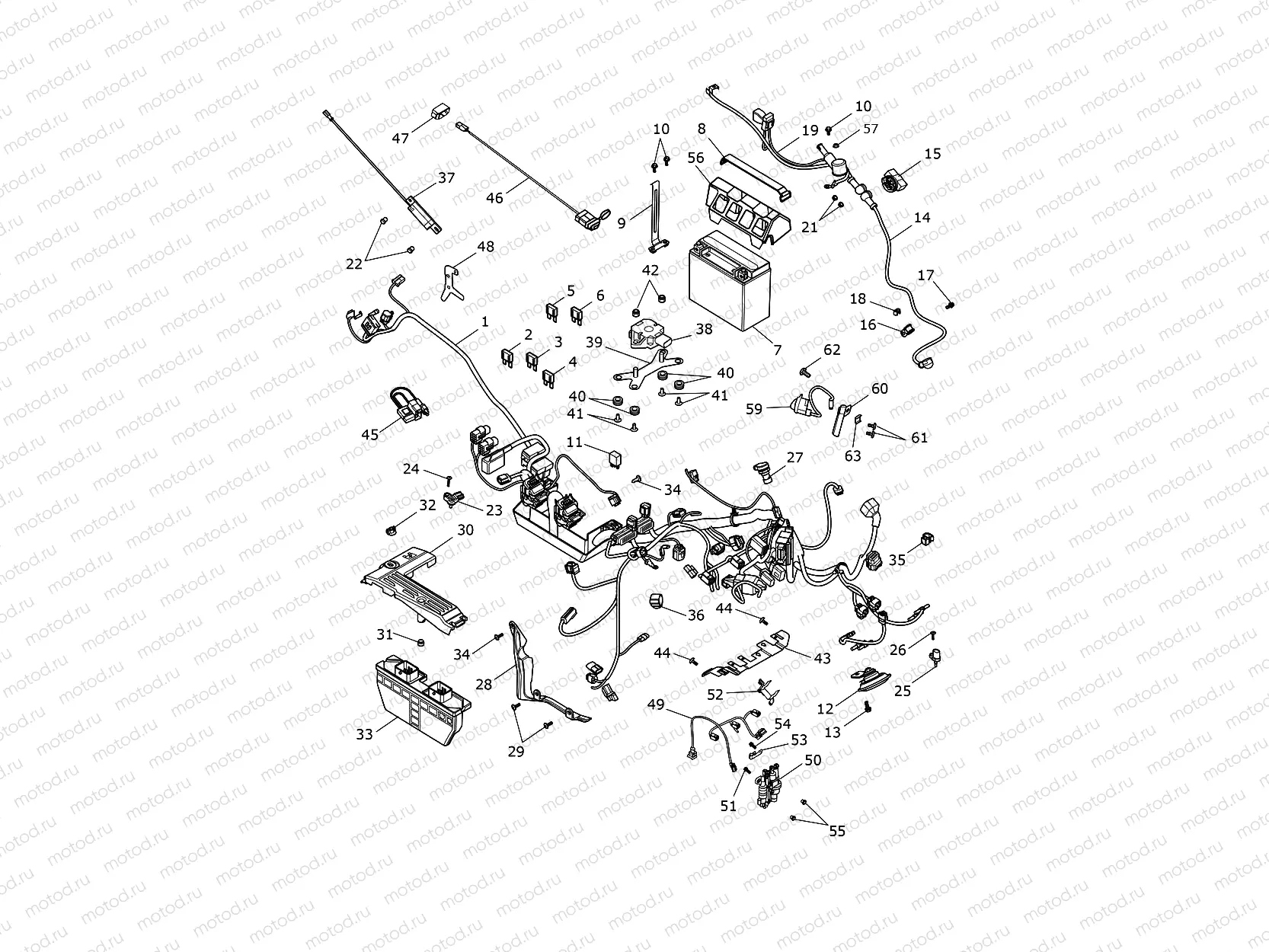

Electrical Equipment

Electrical Equipment

Например: T2501392

1

T2501392

Main Harness

2

T2501305

Fuse, Mini, 5A

3

T2501320

Fuse, Mini, 20A

4

T2501325

Fuse, Mini, 25A

5

T2501330

Fuse, Mini, 30A

6

T2505035

Fuse 40 amp

7

T2501823

La batterie

7

T2501834

Kit, Battery

8

T2501780

STRAP, BATTERY

9

T2501295

Battery Bracket

10

T3203222

Bolt, HHF, M6 x 12, Slv

11

T2506040

Relay, Normally Open, Diode

6 шт. в узле

12

T2501643

Horn Assy, Low Tone

13

T3201228

Bolt, HHF, M8 x 14, Slv

4 шт. в узле

14

T2503572

Starter Lead

15

T1310008

Starter Solenoid Assy

16

T3700192

P Clip, ID 8mm

17

T3331042

Screw, Pan/Hd, Tx, M6 x 12, En

4 шт. в узле

18

T3700061

Clip, Cable Double

4 шт. в узле

19

T2501757

Battery Lead

20

T2505035

Fuse 40 amp

21

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

22

T3701150

Plastic Rivet, Push Release

2 шт. в узле

23

T1290975

Air Pressure Sensor

24

T3332464

Screw, S/Tap, THF, 5 x 25

25

T1290088

Sensor, Air Temperature

26

T3331414

Screw, S/Tap, Torx, 5 x 16

27

T2505075

Socket, Auxillary Power

2 шт. в узле

28

T2503600

Cable, Tidy, Sump

30

T2500844

Cover, CCU

31

T3021161

Rubber Foot, Dia 14.22 x 7.1

32

T3351100

Wingnut, M6, Plastic

33

T2501846

Kit, CCU & Cut Keys, BR

33

T2502611

Kit, CCU & Uncut Keys, BR

33

T2502127

Kit, CCU & Uncut Keys, RF434

33

T2502126

Kit, CCU & Cut Keys, RF434

33

T2502113

Kit, CCU & Uncut Keys, RF315

33

T2502111

Kit, CCU & Cut Keys, RF315

34

T3701170

Plastic Rivet, Screw Type

2 шт. в узле

35

T2504512

S Clip, 3.5 - 4.5

36

T3700222

Clip, Cable, Dia 25mm, BLK

37

T2502182

Antenna, LF

38

T2508040

INERTIAL MEASUREMENT UNIT

39

T2508510

Plate, IMU

40

T3021221

Grommet, ID 8.5, OD 10.5

4 шт. в узле

41

T3331436

Vis (4x1)

4 шт. в узле

42

T3350003

Locknut, Flanged, M6 x 1.0

2 шт. в узле

43

T2501344

Bracket, Harness Connectors

44

T3330943

Screw, But/Hd, M5 x 14, Slv

2 шт. в узле

45

T2509876

Flylead, ETC, JP

46

T2501419

USB Charger, 5V

47

T2501421

Rubber Band, USB

48

T2507722

Bracket, USB Connector

49

T2503577

Engine Subharness

50

T2501069

Moulding, Crankcase Tidy

51

T3205064

Vis

52

T2500702

Solenoid Bracket

53

T2503579

Bracket, Sub-Harness Connector

54

T3203222

Bolt, HHF, M6 x 12, Slv

55

T3010062

Flanged Sleeve, M6 x 7.8 x 2.8

2 шт. в узле

56

T2501806

Spacer, Battery Moulding

57

T3350305

Locknut, Flgd, M6 x 1.0, Slv

59

T2502214

Switch, Rotational

60

T2501591

Bracket, Rotational Switch

61

T3331436

Vis (4x1)

4 шт. в узле

62

T3330945

Screw, But/Hd, M5 x 16, Blk

63

T3350161

Nut, Captive, M5

65

T2505825

Link, Rotational Switch
