Главная Каталог товаров Triumph EPC 2019 Triumph SCRAMBLER 1200 XE Triumph 2019 (VIN: SMTD51HG, SMTDAD82) Electrical Equipment

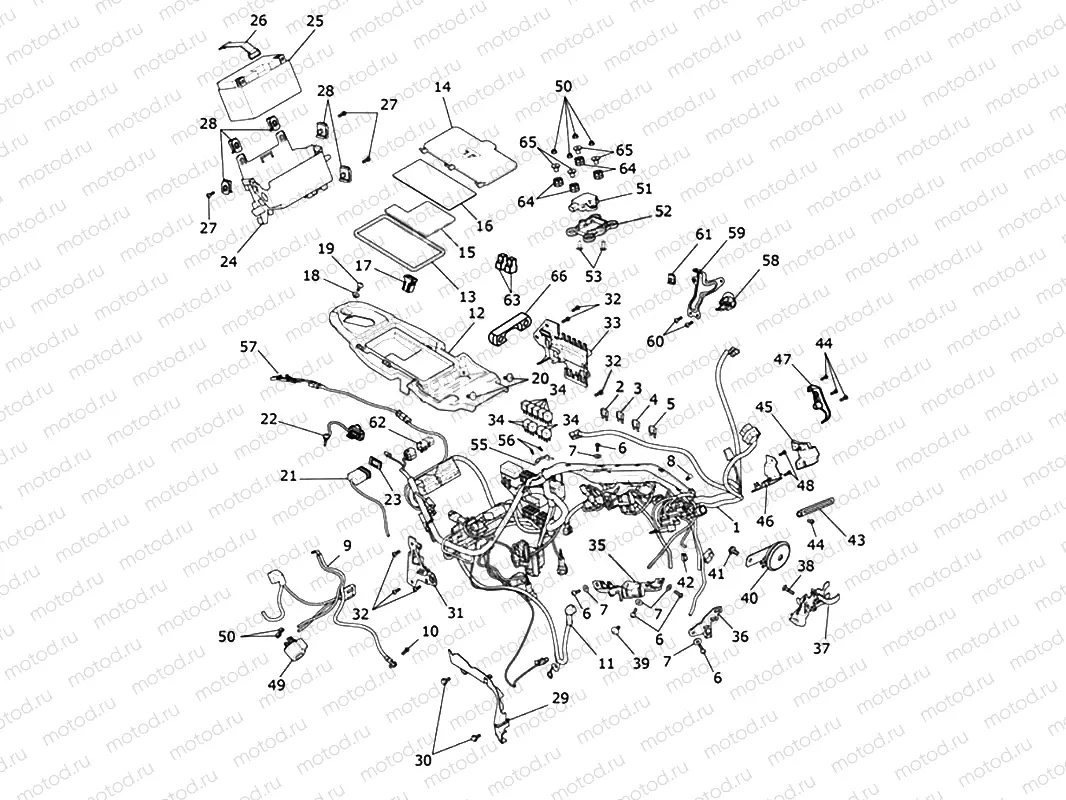

Electrical Equipment

Electrical Equipment

Например: T2502577

1

T2502577

Main Harness

2

T2501325

Fuse, Mini, 25A

3

T2501315

Fuse, Mini, 15A

3 шт. в узле

4

T2501310

Fuse, Mini, 10A

4 шт. в узле

5

T2501305

Fuse, Mini, 5A

6

T3331234

Screw, Torx, P/H, M6 x 20, Slv

5 шт. в узле

7

T3555025

Washer, 6.4 x 18 x 1.6

5 шт. в узле

8

T3701098

Firtree, Dia 5 x 18

2 шт. в узле

9

T2502462

Subharness, Battery

10

T3203222

Bolt, HHF, M6 x 12, Slv

11

T2501939

Starter Lead

12

T2308216

Base, Storage Box

13

T2307977

Seal, Storage Box

14

T2307976

Lid, Storage Box

15

T2501911

Foam Pad, Base, Storage Box

16

T2501912

Foam Pad, Lid, Storage Box

17

T2309804

Push Latch

18

T3010706

Flanged Sleeve, 5.2 x 7 x 6.3

19

T3330941

Screw, But/Hd, Skt, M5 x 16, S

20

T3330727

Vis (M6x20)

2 шт. в узле

21

T2501965

Charger, USB, 5V

22

T2502507

Cover, USB, Rubber

23

T2308282

Gasket, USB

24

T2503420

Battery Box Moulding

25

T2509590

La batterie

26

T2501730

Battery Strap

27

T3330334

Screw, Tx, Pan/HD, M6 x 16, Sl

3 шт. в узле

28

T3350111

Nut, Captive, M6

5 шт. в узле

29

T2501772

Moulding, Starter Cable Guide

30

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

2 шт. в узле

31

T2502241

Connector, Airbox, Moulding

32

T3331414

Screw, S/Tap, Torx, 5 x 16

6 шт. в узле

33

T2501647

Bracket, Relays, Moulding

34

T2506039

Relay, Normally Open

9 шт. в узле

35

T1290354

Moulding, Coils Bracket

36

T2501775

Moulding, Bracket, Connectors,

37

T2501837

Bracket, Purge Valve

38

T3330231

Screw, Lge Skt Hd, M6 X 1 X 25

39

T3332568

Vis

40

T2507002

Horn Assy, 440 Hz

41

T3201228

Bolt, HHF, M8 x 14, Slv

42

T3700108

Clip, Cable, 14.3 x 10

43

T3700405

Clip, Harness

44

T3331441

Screw, S/Tap, Pan, Torx, 4 x 10

4 шт. в узле

45

T2502121

Headstock, Outer Moulding

46

T2501971

Bracket, Headstock, Innner

47

T2502528

Moulding, Retention, Brake Line

48

T3330649

Screw, Pan/Hd, Tx, M5 x 12, Sl

2 шт. в узле

49

T1310008

Starter Solenoid Assy

50

T3350003

Locknut, Flanged, M6 x 1.0

6 шт. в узле

51

T2504093

Inertial Measurement Unit

52

T2508950

Carrier, IMU

53

T3331010

Bolt, But/Hd, Skt, M6 x 16, S/

2 шт. в узле

55

T2501864

Moulding, Cable & Hose Guide

56

T3701098

Firtree, Dia 5 x 18

2 шт. в узле

57

T2509089

Subharness, Rear Light

58

T2502214

Switch, Rotational

2 шт. в узле

59

T2502232

Bracket, Rotational Switch

60

T3331436

Vis (4x1)

2 шт. в узле

61

T3700162

Clip, Cable/Pipe

62

T2502238

Plug, 6-Way

63

T2506066

Cover, Relay, Moulding

2 шт. в узле

64

T3020601

Grommet, Castellated

4 шт. в узле

65

T3010710

Flanged Sleeve, 6.4 x 9.6 x 13

4 шт. в узле

66

T2509856

Spacer, Battery, Rubber
