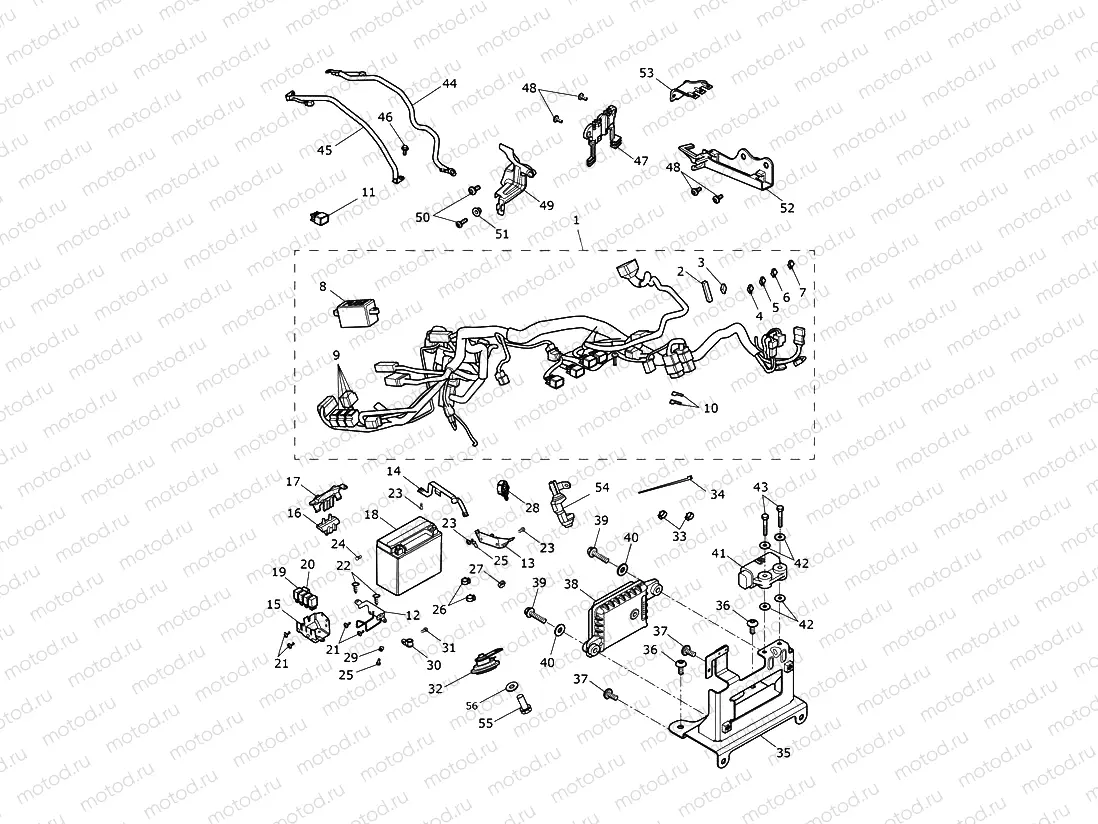

Electrical Equipment

Electrical Equipment

Например: T2500716

1

T2500716

Main Harness, ABS

2

T2501300

ool, Mini Fuse Replacement

3

T2500805

Fuse, 30A

2 шт. в узле

4

T2501305

Fuse, Mini, 5A

5

T2501310

Fuse, Mini, 10A

4 шт. в узле

6

T2501315

Fuse, Mini, 15A

5 шт. в узле

7

T2501320

Fuse, Mini, 20A

2 шт. в узле

8

T2501335

Fusebox Lid

9

T2506025

Relay, Grommet

4 шт. в узле

10

T2500583

Boot, Connector, Horn

2 шт. в узле

11

T2506015

Blanking Plug, EXBV

12

T2509922

Bracket, Harness, RH

13

T2509911

Bracket, Harness, LH

14

T2501699

Bracket, ECU

15

T2509934

Bracket, Harness, Relay

16

T2505998

Rubber, Battery Bracket

17

T2505999

Bracket, Battery

18

T2502450

La batterie

18

T2502376

Battery Multipack (10)

19

T2506035

Relay, Changeover

20

T2506040

Relay, Normally Open, Diode

5 шт. в узле

21

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

4 шт. в узле

22

T3450255

Plug, Retainer, Plastic

2 шт. в узле

23

T3331044

Screw, Pan/Hd, Tx, M6 x 16, Sl

3 шт. в узле

24

T3700091

Clip cable

25

T3701098

Firtree, Dia 5 x 18

2 шт. в узле

26

T2046017

Clip, Cable, Black

2 шт. в узле

27

T2040884

Clip, Twin, Speedo, Brake

28

T3700101

Clip, Cable, Dia 8-18

29

T3701094

P Clip, Dia 4.4, Black

30

T3700192

P Clip, ID 8mm

31

T3202304

Bolt, RHHF, M6 x 20, Slv

32

T2500103

Horn Assy, Low-Tone

33

T3700182

Clip, Omega, 18mm x 14mm

2 шт. в узле

34

T3700016

Cable Tie, 370 Long

35

T2500762

RCU Cradle

37

T3330858

Bolt, But/Hd, M6 x 15, Shld, S

4 шт. в узле

38

T2504071

Immobiliser ECU, with RF 315

38

T2504061

Immobiliser ECU, with RF 434

39

T3331041

Screw, Pan/Hd, Tx, M6 x 25, En

2 шт. в узле

40

T3555004

Washer, 6.4 x 14 x 1.6

2 шт. в узле

41

T2502405

Switch, Fall Detection

42

T3555021

WASHER, 4.3X16.0X1.0

4 шт. в узле

43

T3330390

Screw, H/Hd, M4 x 25, Slv, Enc

2 шт. в узле

44

T2501314

Subharness, Battery, Positive

45

T2501304

Subharness, Battery, Negative

46

T3205062

Bolt, HHF, Lghtd, M6 x 12, Slv

47

T2500616

Block, Hose Routing

48

T3331517

Screw, P/HD Tx, Shld, M6 x 16,

5 шт. в узле

49

T2500369

Moulding, Hose Routing

50

T3331234

Screw, Torx, P/H, M6 x 20, Slv

51

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

52

T2500563

Guide, Alternator Cable

53

T2501414

Bracket, Front Sub Harness

54

T2505995

Cover, Connector, Rubber

55

T3205081

Bolt, HHF, Lghtd, M6 x 28, Enc

56

T3554200

Washer, Hardened, 6.5 x 16 x 1
