Главная Каталог товаров Polaris EPC 2015 Polaris RANGER Polaris 2015 RANGER ETX EU (R15RMA32FA) Polaris 2015 RANGER ELECTRICAL | ELECTRICAL, WIRE HARNESSES - R15RMA32FA (700128)

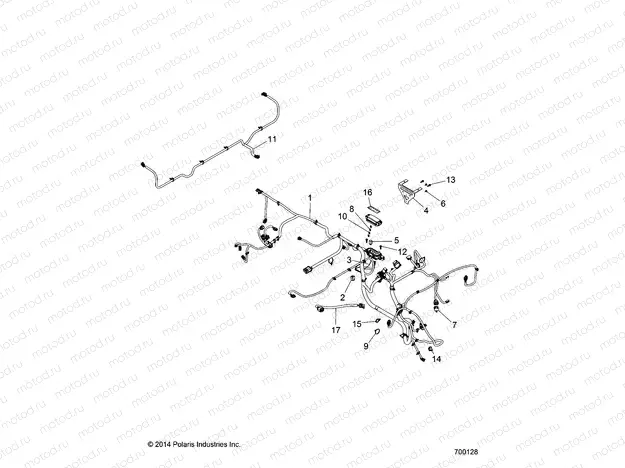

ELECTRICAL | ELECTRICAL, WIRE HARNESSES - R15RMA32FA (700128)

ELECTRICAL | ELECTRICAL, WIRE HARNESSES - R15RMA32FA (700128)

Например: 2412855

1

2412855

HARNESS-CHASSIS 325 EU

2

4011372

BREAKER-CIRCUIT 20 AMP

3

2202670

KIT-FUSIBLE LINK 1.0MM

4

5256408-329

BRKT-MNT FUSE BLOCK BLK

5

4016819

RELAY-SPST 12V 20A EPXY HFA

6

7512084

Vis

7

4012170

COVER-DIAGNOSTIC W/CLIP

8

2434016

FUSE IGN.10 AMP

9

7519650

SCR-TXTH-M6X1.0X25 RIE

10

4010859

FUSE-15AMP MINI BLADE

11

2412854

HARNESS-BOX 570 EU

12

7518535

BOLT-M6X1.0X25 TORX PNHD BLK

13

7518529

SCR-M6X1.0X20 HXHD FLG TDFM BL

14

7670134

CLIP-WIRE ADHESIVE BACK 1/2

15

7081496

CLIP-ROUTING

16

7182514

LABEL, FUSE BOX

17

2413117

HEADLIGHT JUMPER DOMESTIC
