Главная Каталог товаров Polaris EPC 2021 Polaris RANGER Polaris 2021 RANGER XP 1000 (R02) - R21RRE99A9/AC/AP/AW/B9/BC/BP/BW Polaris 2021 RANGER ELECTRICAL | ELECTRICAL, WIRE HARNESS - R21RRE99A9/AC/AP/AW/B9/BC/BP/BW (C701167)

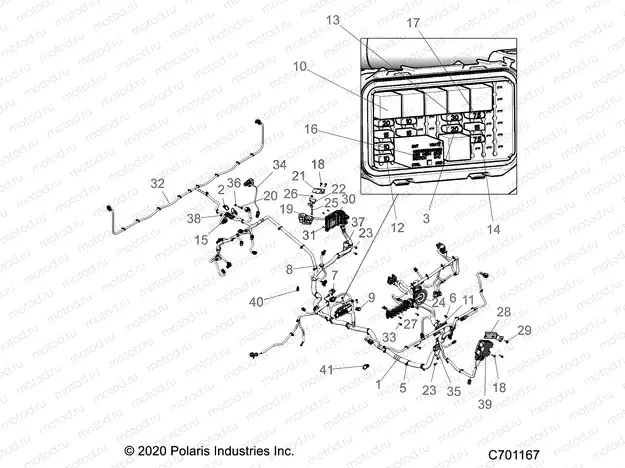

ELECTRICAL | ELECTRICAL, WIRE HARNESS - R21RRE99A9/AC/AP/AW/B9/BC/BP/BW (C701167)

ELECTRICAL | ELECTRICAL, WIRE HARNESS - R21RRE99A9/AC/AP/AW/B9/BC/BP/BW (C701167)

Например: 2415420

1

2415420

HARN-CHASSIS XP BASE

2

7082403

CLIP-EDGE 1-3MM THICKNESS

3

4010859

FUSE-15AMP MINI BLADE

5

7081496

CLIP-ROUTING

7

4012170

COVER-DIAGNOSTIC W/CLIP

8

5415308

GROMMET-USB 3 MM 22 MM DIA

9

2410881

BREAKER-CIRCUIT 20 AMP SEALED

10

4016819

RELAY-SPST 12V 20A EPXY HFA

11

5814560

GROMMET-65MM W/FLANGE BLK

12

2434016

FUSE IGN.10 AMP

13

2434015

FUSE MAIN 30 AMP

14

4010859

FUSE-15AMP MINI BLADE

15

4012260

COVER-FUSEHOLDER

16

4018251

RELAY-SSR 10A

17

4011068

FUSE-7.5 MINI BLADE (BROWN)

18

7520715

SCR-TFHFL-M6X1.0X25 ZY3

19

2876049

KIT-IGNITION COIL TWIN EFI

20

7518612

BOLT-M6X1.0X35 HXFLG/SH-OLV D

21

5263891

BRKT-COIL MOUNT

22

5436577

SPACER-COIL MOUNT

23

7518529

SCR-M6X1.0X20 HXHD FLG TDFM BL

24

5417082

GROMMET-HOOD LINER SPLIT

25

7518780

SCR-M6X1.0X40 HX/SOC/CP-B

26

7547274

Nut (M6 Lock)

27

5454284

COVER TB JCASE

27

4016007

BLOCK-TERMINAL 6 POS

27

4013891

FUSE-CARTRIDGE 40A

27

5454283

PLUG ACCY TB

28

5263643

BRKT-MOUNT REG

29

7518555

BOLT-M8X1.25X20 HXFLG TAP/R-OD

30

4014125

ECM-NO START ME17

31

7519091

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

32

2413818

HARNESS BOX RANGER

33

7519731

SCR-TXPH-#14 X .75 HI-LO RIE

34

4012829

RELAY SOLID STATE 9A LONG LD

35

5264313-329

BRKT-ROUTING BLK

35

5268050-329

BRKT-ROUTING BLK

36

7547332

NUT-M8X1.25 FLG NYLOC-OLIVE D

37

5264314

BRKT-HARNESS ROUTING

38

7080138

CABLE TIE

39

4016868

REGULATOR-3PH 50A SERIES HISPD

40

7082428

CLIP-EDGE 1-3MM THICKNESS

41

7082404

CLIP-EDGE 3-6MM THICKNESS
