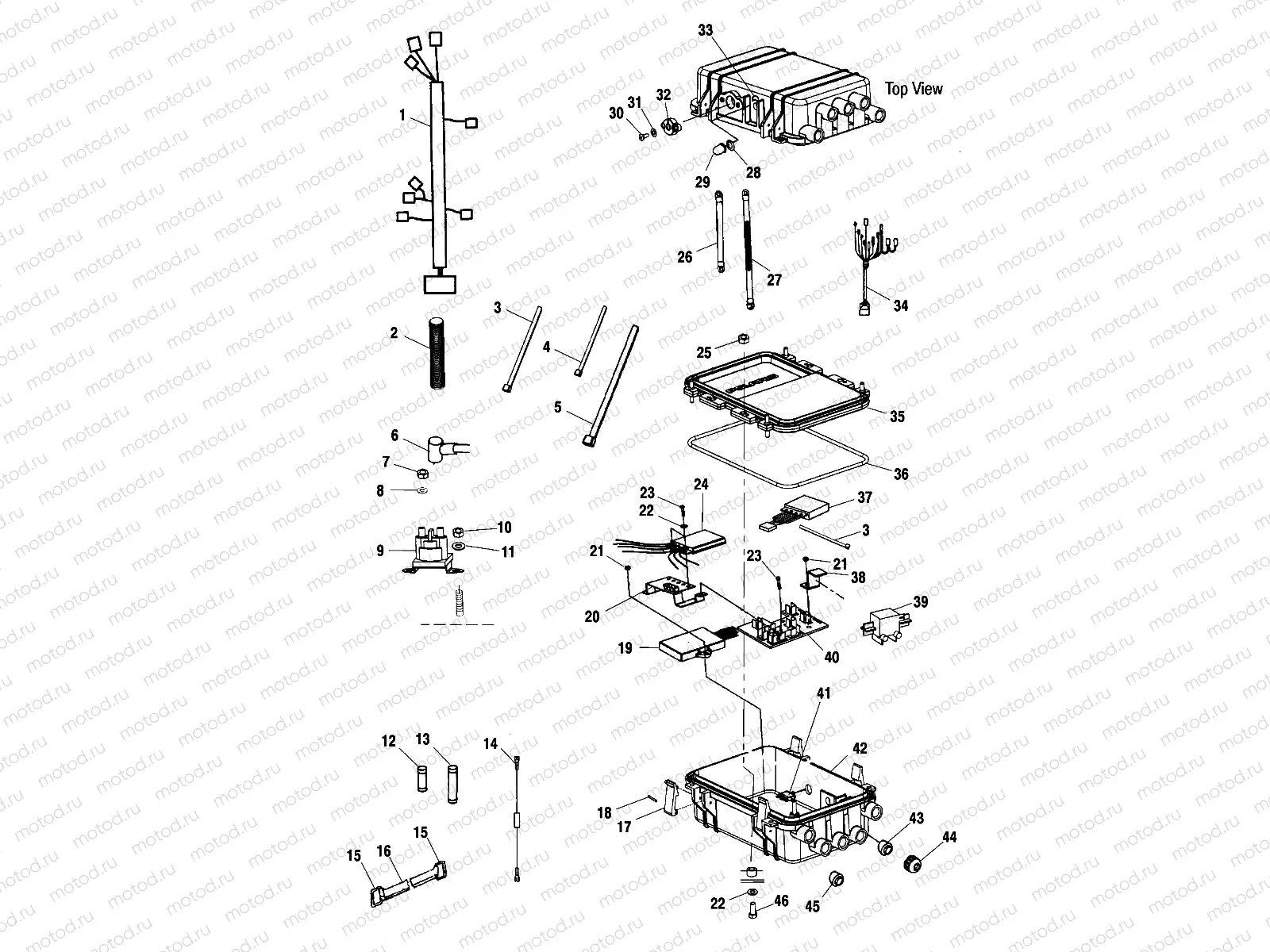

Главная Каталог товаров Polaris EPC 2002 Polaris PWC Polaris 2002 INT'L FREEDOM (W025297I) Polaris 2002 PWC ELECTRICAL BOX - W025297D/W025297I (4975477547B11) | ELECTRICAL BOX - W025297D/W025297I (4975477547B11)

ELECTRICAL BOX - W025297D/W025297I (4975477547B11) | ELECTRICAL BOX - W025297D/W025297I (4975477547B11)

ELECTRICAL BOX - W025297D/W025297I (4975477547B11) | ELECTRICAL BOX - W025297D/W025297I (4975477547B11)

Например: 2461032

1

2461032

Harness, Main

2

5521287-63

CONDUIT,FLEX,1.250ID Substituted by 5521287-132

3

7080138

CABLE TIE

4

7080483

CABLE TIE 4 INCH

5

7080492

CABLE TIE 11 INCH

6

5410346

INSUL.CABLE SOL.

7

7546705

NUT 6 MM. S.S.

8

7552613

Rondelle (Lock)

9

4010401

SOLENOID-STARTER,EXTERNAL

10

7547637

NUT-.25-20 HEX NK SS

11

7555836

Rondelle

12

4060161

Fuse, 3 Amp

13

4060111

FUSE,(10)

14

2460928

HARNESS-JUMPER,PWC

15

5243775

HOOK,STRAP,NARROW

16

5418182

STRAP-BATTERY HOLD DOWN-C

17

5432503

LATCH,ELEC.BOX Substituted by 2620120

18

5333544

PIN,LATCH,ELEC.BOX

20

2410250

ASM-STRAP GROUNDING W/FUSES

21

7547061

NUT,NYLOK,SS

22

7555837

WASHER, FLAT, S.S.(10)

23

7512042

BOLT S.S.

24

4010648

REGULATOR-S/S 1 BUTTON 505

25

7547059

NUT NYLOK SS.

26

4010669

Cable, Battery/Solenoid

27

4010642

Cable, Solenoid/Starter

28

5411491

O-Ring

29

7080461

BOOT THREADED

30

7515113

BOLT SS

32

5432574

PLATE,STATOR,1 HOLE

33

7077691

DECAL-"RESET ELEC SYSTEM"

34

2460718

HARNESS-8 WIRE STATOR 2CYL

35

2631998

COVER ACCESSORY E-BOX

36

5432569

SEAL, E-BOX Substituted by 2620120

37

4010615

Driver, Lamp, LR 85

38

5244370

BRKT,COIL,2CYL

39

LR--

CALIPER, BRAKE, RH

40

2410297

Asm., Terminal Board

41

2434011

CKT.BREAKER 15A.(WATER.)

42

2632137

ELECTRICAL BOX,IGNITION,ASM. (Incl. 8,9,16,17)

43

5411235

Damper

44

5432502

CAP,GROMMET,ELEC.BOX

45

4010261

PLUG,SEALING,WIRE

46

7517825

SCREWM5X0.8X60(10)
