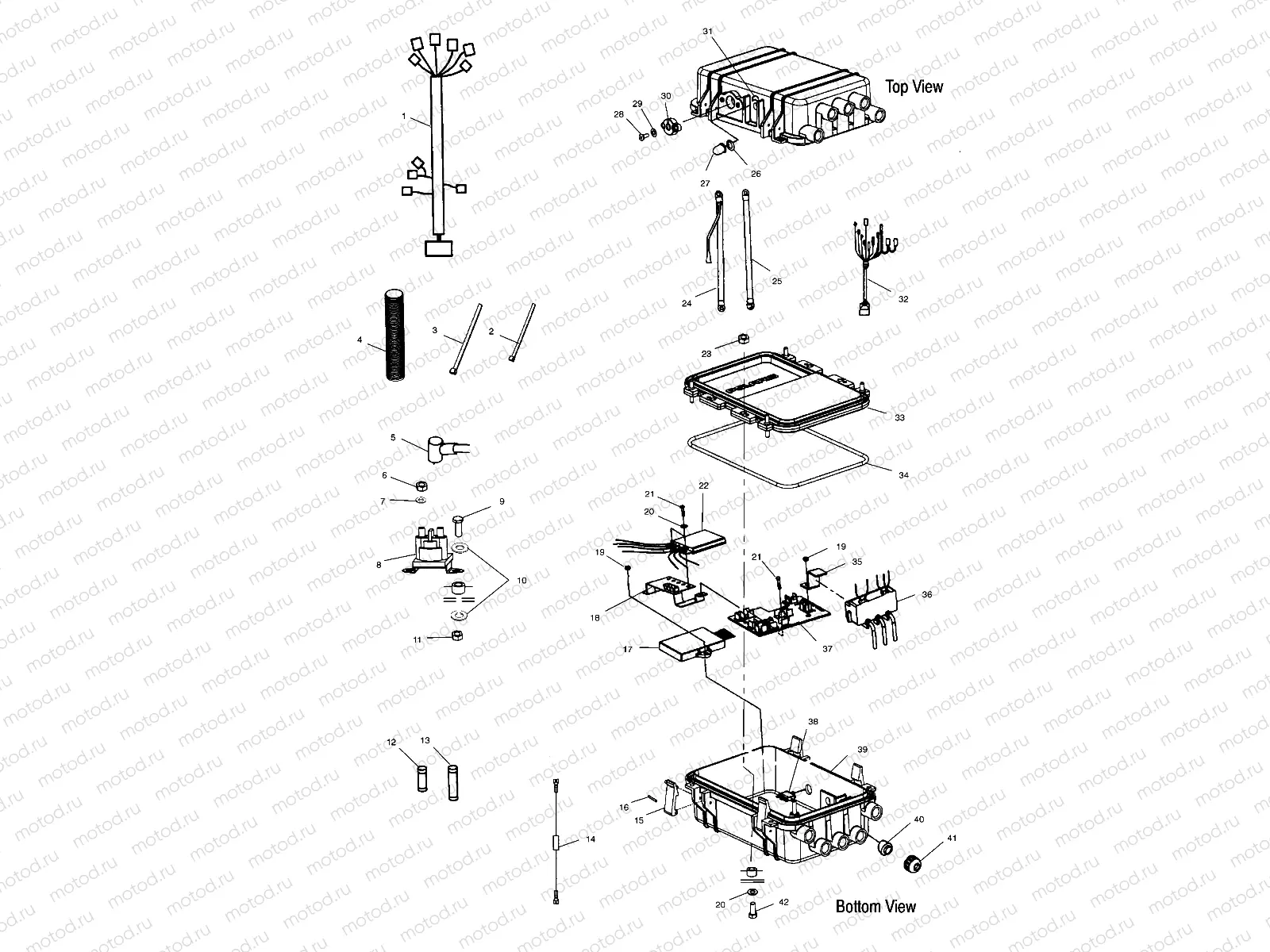

ELECTRICAL BOX - W025199D/W025199I (4971327132B13) | ELECTRICAL BOX - W025199D/W025199I (4971327132B13)

ELECTRICAL BOX - W025199D/W025199I (4971327132B13) | ELECTRICAL BOX - W025199D/W025199I (4971327132B13)

Например: 2460955

1

2460955

HARNESS,MIAN VIRAGE W/O SPLICE

2

7080483

CABLE TIE 4 INCH

3

7080138

CABLE TIE

4

5521287-63

CONDUIT,FLEX,1.250ID Substituted by 5521287-132

5

5410346

INSUL.CABLE SOL.

6

7546705

NUT 6 MM. S.S.

7

7552613

Rondelle (Lock)

8

4010401

SOLENOID-STARTER,EXTERNAL

9

7517671

Vis

10

7555839

WASHER, FLAT, S.S.(10)

11

7546704

NUT NYLOK SS.

12

4060161

Fuse, 3 Amp

13

4060111

FUSE,(10)

14

2460928

HARNESS-JUMPER,PWC

15

5432503

LATCH,ELEC.BOX Substituted by 2620120

16

5333544

PIN,LATCH,ELEC.BOX

17

4010567

CDI, Programmed

18

2410250

ASM-STRAP GROUNDING W/FUSES

19

7547061

NUT,NYLOK,SS

20

7555837

WASHER, FLAT, S.S.(10)

21

7512042

BOLT S.S.

22

4010648

REGULATOR-S/S 1 BUTTON 505

23

7547059

NUT NYLOK SS.

24

4010238

CABLE-BATTERY/SOLENOID

25

4010237

CABLE-SOLENOID/STARTER

26

5411491

O-Ring

27

7080461

BOOT THREADED

28

7515113

BOLT SS

29

7555836

Rondelle

30

5432574

PLATE,STATOR,1 HOLE

31

7073734

DECAL,ELECT.BOX RESET (See Page 21)

32

2460717

HARNESS-9 WIRE STATOR,3CYL Substituted by 2460875

33

2631998

COVER ACCESSORY E-BOX

34

5432569

SEAL, E-BOX Substituted by 2620120

35

5244369

BRKT,COIL,3CYL

36

LR--

CALIPER, BRAKE, RH

37

2410201

BOARD ASM TERMINAL

38

2434011

CKT.BREAKER 15A.(WATER.)

39

2632137

ELECTRICAL BOX,IGNITION,ASM. (Incl. 8,9,16,17)

40

5411235

Damper

41

5432502

CAP,GROMMET,ELEC.BOX

42

7517825

SCREWM5X0.8X60(10)
