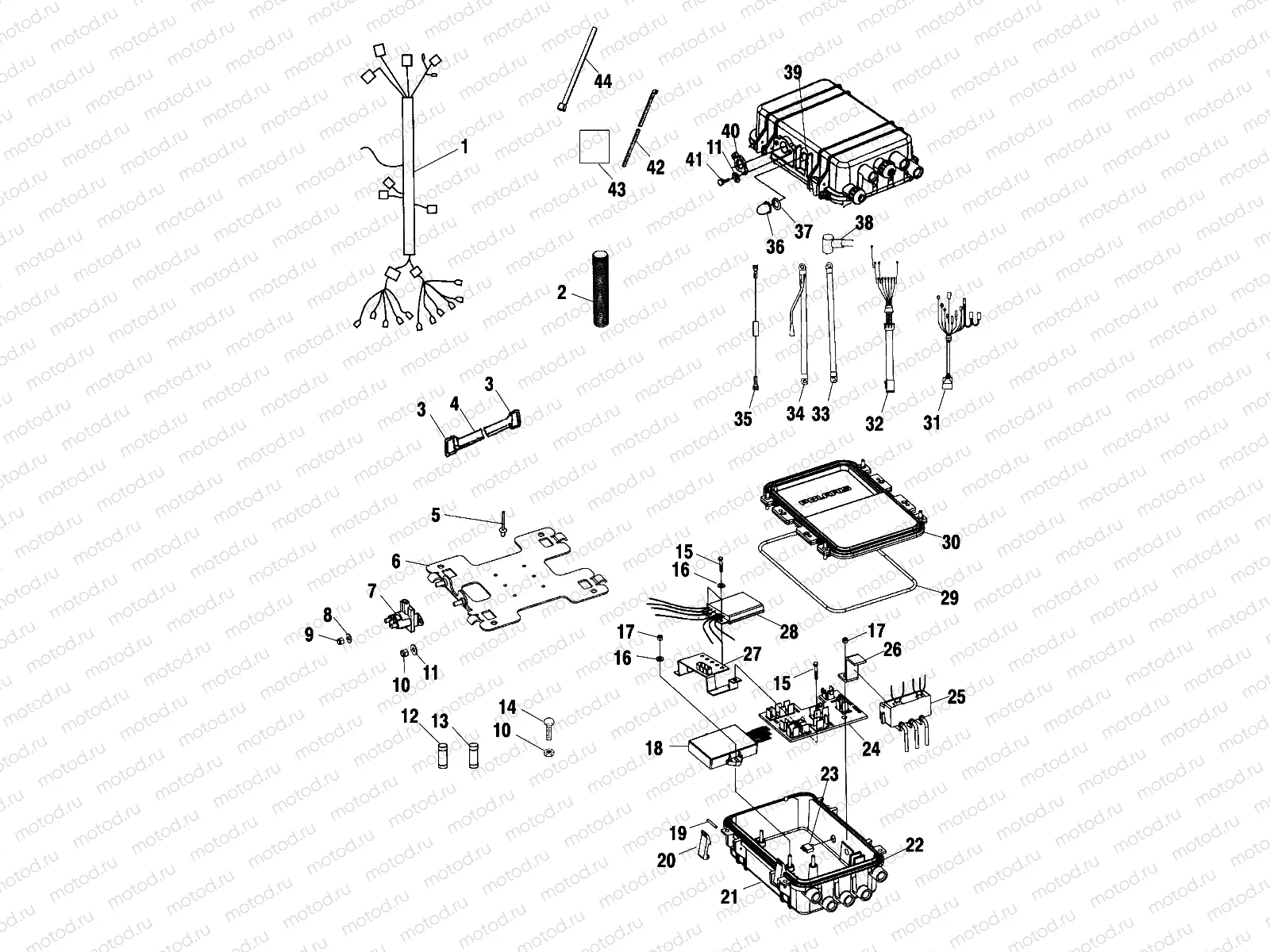

Главная Каталог товаров Polaris EPC 2002 Polaris PWC Polaris 2002 INT'L GENESIS (W025099I) Polaris 2002 PWC ELECTRICAL BOX - W025099D/W025099I (4971417141B11) | ELECTRICAL BOX - W025099D/W025099I (4971417141B11)

ELECTRICAL BOX - W025099D/W025099I (4971417141B11) | ELECTRICAL BOX - W025099D/W025099I (4971417141B11)

ELECTRICAL BOX - W025099D/W025099I (4971417141B11) | ELECTRICAL BOX - W025099D/W025099I (4971417141B11)

Например: 2460999

1

2460999

Harness, Main

2

5521286-25

CONDUIT,WIRE,2.5CM (2.5cm)

3

5224472

HOOK D SST/SS

4

5411456

STRAP

5

7621479

RIVET

6

5246040

BRKT-EBOX

8

7552613

Rondelle (Lock)

9

7546705

NUT 6 MM. S.S.

10

7547637

NUT-.25-20 HEX NK SS

11

7555836

Rondelle

12

4060161

Fuse, 3 Amp

13

4060111

FUSE,(10)

14

7515113

BOLT SS

15

7512042

BOLT S.S.

16

7555837

WASHER, FLAT, S.S.(10)

17

7547061

NUT,NYLOK,SS

18

LR--

CALIPER, BRAKE, RH

19

5333544

PIN,LATCH,ELEC.BOX

20

5432503

LATCH,ELEC.BOX Substituted by 2620120

21

5433549

BOX,TOP ELECTRICAL,PLASTIC [No Longer Available]

22

2632137

ELECTRICAL BOX,IGNITION,ASM. (Incl. 8,9,16,17)

23

2434011

CKT.BREAKER 15A.(WATER.)

24

2410201

BOARD ASM TERMINAL

26

5244369

BRKT,COIL,3CYL

27

2410250

ASM-STRAP GROUNDING W/FUSES

28

4010648

REGULATOR-S/S 1 BUTTON 505

29

5432569

SEAL, E-BOX Substituted by 2620120

30

2631998

COVER ACCESSORY E-BOX

31

2460717

HARNESS-9 WIRE STATOR,3CYL Substituted by 2460875

32

2461001

Harness, RVS

33

4010237

CABLE-SOLENOID/STARTER

34

4010572

CABLE-BATTERY SOLENOID 38

35

2460928

HARNESS-JUMPER,PWC

36

7080461

BOOT THREADED

37

5411491

O-Ring

38

5410436

Rondelle (Rubber)

39

7073734

DECAL,ELECT.BOX RESET (See Page 21)

40

5432574

PLATE,STATOR,1 HOLE

41

7517830

Vis

42

7080138

CABLE TIE

43

7080464

ANCHOR, CABLE TIE(10)

44

7080483

CABLE TIE 4 INCH
